HDMI extender extra digital CA916061 — 150 m range, supports 1080p

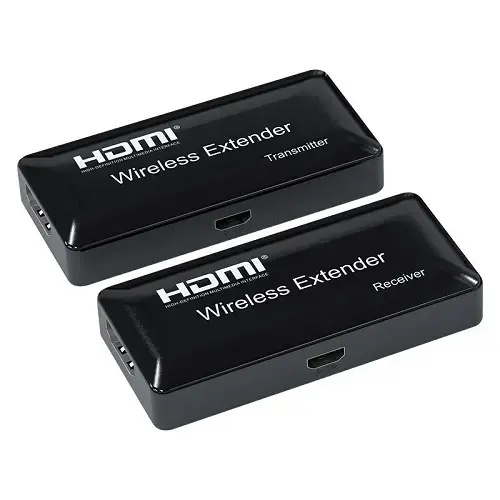

The extra digital HDMI wireless extender CA916061 transmits Full HD 1080p (1920x1080) / 60Hz video over wireless links using 2.4 GHz and 5 GHz bands. It supports one-to-one and one-to-four transmission (additional receivers sold separately), HDCP 1.3, and a maximum data rate up to 1.485 Gbps with a TMDS clock up to 148.5 MHz. In open areas the transmitter and receiver can communicate up to 150 m; through walls typical range is up to 40 m. The kit includes a transmitter (TX), receiver (RX), two USB Type-A to micro‑USB power cables, two short HDMI adapters and a user guide. Warranty is 24 months.

Advantages

This HDMI extender provides wireless transmission of 1080p video without additional software or drivers (plug and play). Dual‑band operation (2.4G/5G) reduces interference and the device implements error correction and high bandwidth capacity to maintain stable HD video. The unit supports stereo audio, standard HDMI cable lengths up to 8 m (AWG26) for input/output at 1080p, and compact transmitter and receiver modules suitable for unobtrusive installation.

Suitable for

• Conference rooms and meeting spaces
• Classrooms and lecture halls
• Retail displays and digital signage
• Home AV where cabling over long distances is impractical

Key specifications

• Model: extra digital CA916061
• Resolution: Full HD 1080P (1920x1080) / 60Hz
• HDCP: 1.3
• Wireless bands: 2.4 GHz and 5 GHz
• Maximum baud rate: 1.485 Gbps; TMDS clock up to 148.5 MHz
• Max. transmission distance: 150 m (open space), ~40 m (through walls)
• Supported audio: stereo
• Network protocols: IEEE 802.11 a/b/g/n
• Input/output HDMI cable distance (1080p, AWG26): up to 8 m
• TX current: max 800 mA; RX current: max 500 mA
• Operating temperature: -15°C to +55°C
• Dimensions: 70 × 33 × 13 mm; Weight: 25.7 g (TX), 25.7 g (RX)
• Package contents: TX, RX, 2 × USB Type‑A to micro‑USB power cables (1 m), 2 × HDMI (M)–HDMI (F) 0.2 m adapters, user guide
• Warranty: 24 months

How to use

Connect the transmitter to the HDMI output of the source device and the receiver to the HDMI input of the display using suitable HDMI cables (recommended AWG26 up to 8 m for 1080p). Power both units using the supplied USB Type‑A to micro‑USB cables. For one‑to‑four setups, pair additional receivers with the transmitter (additional receivers required). The devices operate in plug‑and‑play mode and should establish a wireless link automatically; ensure clear line of sight or minimal obstruction for maximum range.

Usage recommendations

Place the transmitter and receiver away from large metal objects and strong RF sources. For stable 1080p transmission, prefer the 5 GHz band where available and keep HDMI cable lengths within the specified AWG26 8 m limit. Additional receivers are sold separately for multi‑display setups.
