HDMI audio extractor extra digital CA916122, supports 4K 60Hz, separates HDMI audio to optical and analog outputs

The extra digital HDMI audio extractor CA916122 converts an incoming HDMI signal to pass video through to a display or projector while extracting the embedded HDMI audio. Extracted audio is available simultaneously as optical (Toslink), coaxial (RCA) digital outputs and as a 3.5 mm analog output for headphones or powered speakers. The device supports HDMI 2.0/HDCP 2.2 and can pass video up to 4096×2160@60Hz, enabling separation of audio and video for systems where the screen accepts HDMI but audio must be routed to external equipment.

Advantages

The CA916122 provides both digital and analog audio outputs (optical, coaxial, 3.5 mm) while maintaining video passthrough up to 4K@60Hz. It supports HDMI 2.0, HDCP 2.2, 3D formats, HDR and multiple color subsampling modes (YUV420/422/444 and RGB 4:4:4). The unit handles up to 6 Gbps data rate and a 600 MHz TMDS clock, supports 8/10/12-bit deep color and offers EDID management plus ARC/CEC compatibility for broad device interoperability.

Suitable for

• Connecting a source (Blu‑ray player, game console, streaming box) to a display while sending audio to an AVR or soundbar
• Separating HDMI audio for powered speakers, external DACs or headphone amplifiers
• Integrating into home theater setups that require optical or coaxial digital inputs
• Use with displays that accept HDMI video but lack advanced audio outputs

Key specifications

• HDMI version: 2.0; HDCP: 2.2
• Maximum resolution: 4096×2160 @ 60 Hz
• Max bandwidth: 600 MHz; Max data rate: 6 Gbps
• Supported color depth: 8/10/12 bit; Color formats: YUV 4:2:0, 4:2:2, 4:4:4 and RGB 4:4:4
• Audio formats: DTS‑HD, Dolby TrueHD, DTS, Dolby AC‑3, DSD
• Audio outputs: Optical (Toslink), Coaxial (RCA), 3.5 mm analog (R/L)
• Cable length support: up to 8 m (1080p, HDMI AWG26) input/output; up to 3 m input / 5 m output (4K/60Hz, HDMI 2.0)
• Power: AC 100–240V (50/60Hz) adapter to DC 5V/1A
• Operating temperature: -15°C to +55°C; Dimensions: 67 × 88 × 24 mm; Weight: 150 g

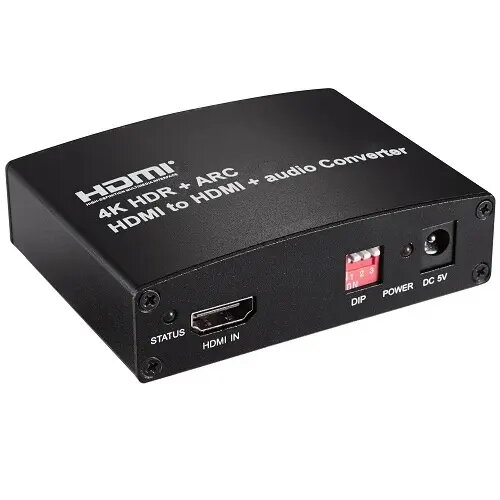

• Ports and indicators: HDMI‑IN, HDMI‑OUT, COAXIAL, OPTICAL, R/L (3.5 mm), DC/5V power in, POWER and STATUS LEDs, DIP EDID switch

How to use

Connect the HDMI source (player, console, set‑top box) to HDMI‑IN and connect your display or projector to HDMI‑OUT. Use the optical (Toslink) or coaxial RCA output to send digital audio to an AV receiver or soundbar, or use the 3.5 mm R/L output for analog speakers or headphones. Power the unit with the supplied AC adapter (DC 5V/1A). Configure the EDID switch if a specific audio/video handshake is required and verify ARC/CEC settings on connected devices if needed.

Usage recommendations

For reliable 4K/60Hz operation use HDMI 2.0 cables and keep input cable length to 3 m or less and output cable length to 5 m or less. For 1080p and lower resolutions, AWG26 HDMI cables can be used up to 8 m. If you experience audio format compatibility issues, adjust EDID settings or force stereo/PCM output on the source device.
