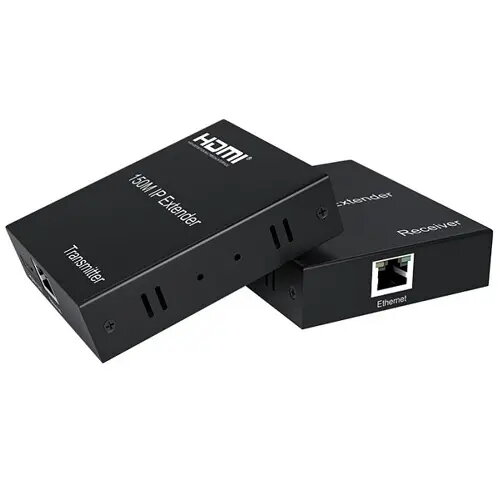

HDMI extender extra digital CA916160 — up to 150 m over Ethernet

The extra digital HDMI extender CA916160 transmits HDMI video and audio signals over a single Ethernet cable (Cat5e or Cat6) for distances up to 150 m. Designed for situations where running long HDMI cables is impractical, the device supports point-to-point, point-to-multipoint and cascade modes via a network switch and includes local loop-out for a monitor near the source. The extender supports common HDMI resolutions up to 1080p and HDCP 1.4 content protection.

Advantages

The extender uses standard Cat5e/Cat6 cabling and the TCP/IP protocol to deliver HDMI up to 150 m, reducing cable cost and complexity. It supports MJPEG decoding, IR control for remote operation, and a local HDMI loop-out so a display can be attached next to the source. The unit is plug-and-play without additional software and can work in point-to-point, point-to-multipoint or cascaded setups for flexible installations.

Suitable for

• Office and meeting room AV distribution
• Classroom and lecture hall installations
• Retail displays and digital signage
• Home AV setups where long cable runs are needed
• Connecting projectors or distant monitors to a central source

Key specifications

• Transmission distance (CAT5e/CAT6): up to 150 m between transmitter and receiver
• Supported HDMI resolutions: 480p, 720p, 1080p
• Audio sample rates: 32 kHz, 44.1 kHz, 48 kHz
• Ethernet standard: IEEE 802.3 (TCP/IP)
• Content protection: HDCP 1.4
• Power: DC 5V/1A (AC adapter 100–240V, 50/60 Hz included)
• Operating temperature: 0 °C to +45 °C
• Operating humidity: 10–80% RH (non-condensing)
• Dimensions: 93 x 79 x 21 mm; Weight: TX 228 g, RX 228 g

How to use

Connect the HDMI source to the transmitter HDMI-IN and attach the local HDMI-OUT if a nearby monitor is required. Use a Cat5e or Cat6 cable from the transmitter Ethernet port to the receiver Ethernet port; for point-to-multipoint setups route the transmitter through an Ethernet switch to multiple receivers. Plug the supplied 5V/1A power adapters into both transmitter and receiver, and use the IR-TX/IR-RX ports if remote IR control is needed. The units are plug-and-play; no additional software is required.

Usage recommendations

For best performance use good-quality Cat6 cable on runs close to the 150 m limit, keep connectors and cable runs away from strong electromagnetic interference sources, and verify device HDCP compatibility with source and display devices before installation.
