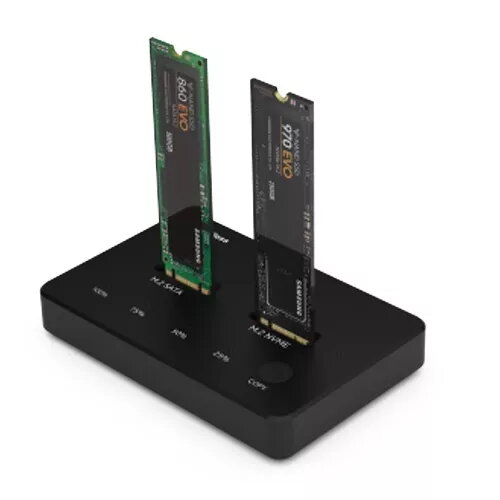

SSD Dual-Bay Docking Station extra digital HC380619 for M.2 NVMe and SATA, USB-A and USB-C

The extra digital HC380619 SSD Dual-Bay Docking Station supports two removable M.2 drives and accepts both NVMe and M.2 SATA form factors, providing a compact solution for quick drive access without internal installation. With USB-A and USB-C host interfaces, the dock enables fast data transfer, direct file access, and standalone cloning between installed drives. Its hot-swap bays simplify testing, backups, migrations and data recovery while remaining portable for use with laptops and desktops.

Advantages

This dual-bay docking station handles NVMe and M.2 SATA drives in the same enclosure, eliminating the need for separate adapters. Dual host ports (USB-A and USB-C) offer broad compatibility with older and newer hosts. Tool-free removable bays allow rapid insertion and removal of drives, and built-in cloning functionality enables direct drive-to-drive copying without a PC. The design supports hot-swap operation for convenient sequential testing and quick access to multiple drives.

Suitable for

• Drive cloning and migration between two M.2 NVMe or M.2 SATA drives
• Data recovery and forensic access to M.2 drives
• Backup and archive tasks requiring portable drive access
• Testing, benchmarking and troubleshooting of multiple M.2 drives
• Temporary expansion for laptops and desktops via USB-A or USB-C

Key specifications

• Form factor support: M.2 NVMe (PCIe) and M.2 SATA (SATA III)
• Number of drive bays: 2 removable M.2 bays (tool-free)
• Host interfaces: USB-A and USB-C for data connection
• Cloning: standalone drive-to-drive cloning without PC
• Hot-swap support: yes, for quick insertion/removal
• Compatibility: supports commonly used M.2 lengths (check host and drive physical fit)

How to use

Install M.2 NVMe or M.2 SATA drives into the removable bays following the device's physical alignment, then slide each bay into the enclosure until it clicks. Connect the docking station to the host using either the USB-C or USB-A cable provided or supplied by the host. For direct drive access, the operating system will recognize each installed drive as an external volume. To perform standalone cloning, use the unit's cloning function according to the on-device controls and user manual to select source and target bays and start the clone process. Always ensure proper drive seating and stable host connection before transferring data.

Usage recommendations

Use the USB-C connection when available to achieve the highest host throughput supported by the drives. For cloning, confirm source and target bays before initiating the operation to avoid accidental data loss. Work on a static-free surface and handle M.2 modules by the edges to reduce electrostatic risk. Allow drives to cool between extended transfer sessions to maintain performance and longevity.
