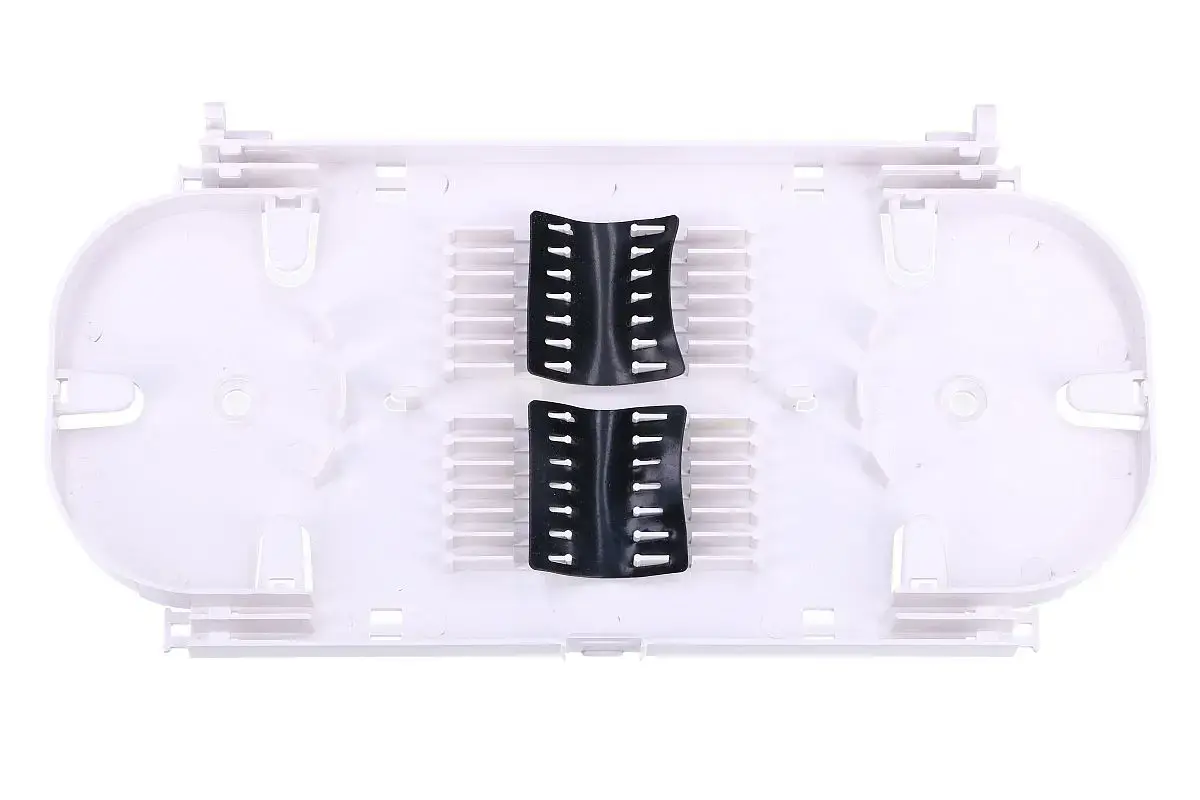

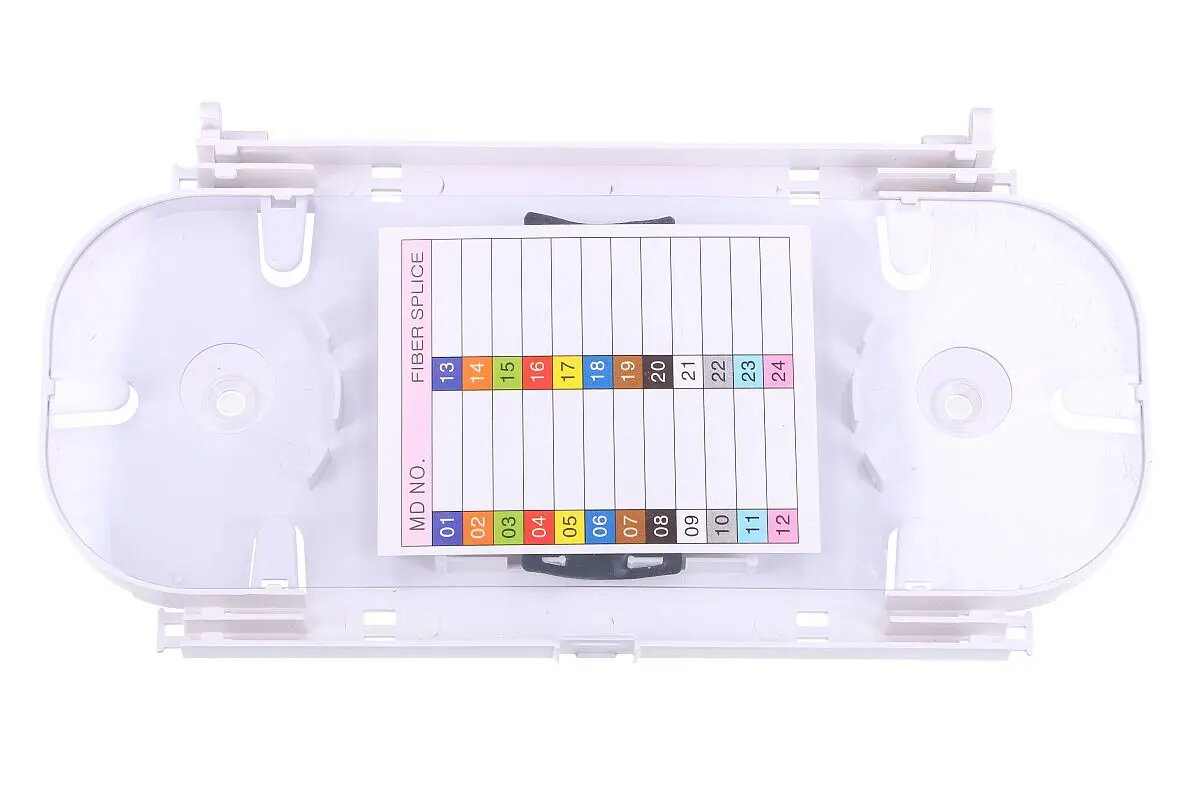

Extralink Fiber Optic Splice Tray 12 Core White ABS

The Extralink fiber optic splice tray is a professional-grade solution designed to organize and protect up to 12 fiber optic splices. Constructed from high-quality, durable white ABS plastic, this tray provides a stable environment for delicate fiber connections within distribution boxes or patch panels. Its compact design and robust construction ensure that fiber optic cables remain neatly arranged, preventing accidental damage and maintaining optimal signal integrity in telecommunications and data network infrastructures.

Advantages

This splice tray offers exceptional reliability for fiber management by providing a secure housing for weld covers. The use of ABS plastic ensures long-term durability and resistance to environmental stress, making it a dependable choice for various networking environments. Its intuitive design allows for efficient cable routing, which simplifies maintenance tasks and reduces the risk of signal loss caused by improper cable bending or tension. The tray is lightweight yet sturdy, facilitating easy integration into existing fiber optic enclosures without adding unnecessary bulk.

Suitable for

• Telecommunications network installations
• Data center fiber management
• Fiber optic distribution boxes
• Patch panel organization
• FTTH (Fiber to the Home) projects

When it may not be suitable

This tray is specifically designed for 12-core configurations and may not be suitable for high-density installations requiring a larger capacity per tray. It is intended for internal use within enclosures and is not designed for direct outdoor exposure without a protective housing.

Key specifications

• Capacity: 12 fiber splices
• Material: Acrylonitrile butadiene styrene (ABS)
• Color: White
• Weight: 110 g
• Configuration: 2 rows of 6 fibers
• Cable management: 4 double inputs/outputs

How to use

To use the Extralink splice tray, first secure it within your fiber optic distribution box or patch panel using the designated mounting points. Route the incoming fiber optic tubes through the provided double inputs/outputs to ensure they are properly anchored. Place the fiber splices into the integrated weld cover magazine, organizing them into the two available rows. Ensure that the fibers are neatly coiled within the tray to maintain the minimum bend radius, then close the tray securely to protect the connections from dust and physical interference.

What to consider before purchase

• Verify the dimensions of your existing distribution box to ensure the tray fits correctly.
• Confirm that your project requirements do not exceed the 12-core capacity per tray.
• Ensure compatibility with your specific type of fiber optic weld covers.

Usage recommendations

For optimal performance and longevity of your fiber optic network, always ensure that fibers are not subjected to excessive tension during installation and that the tray is kept free of dust and debris within the enclosure.
