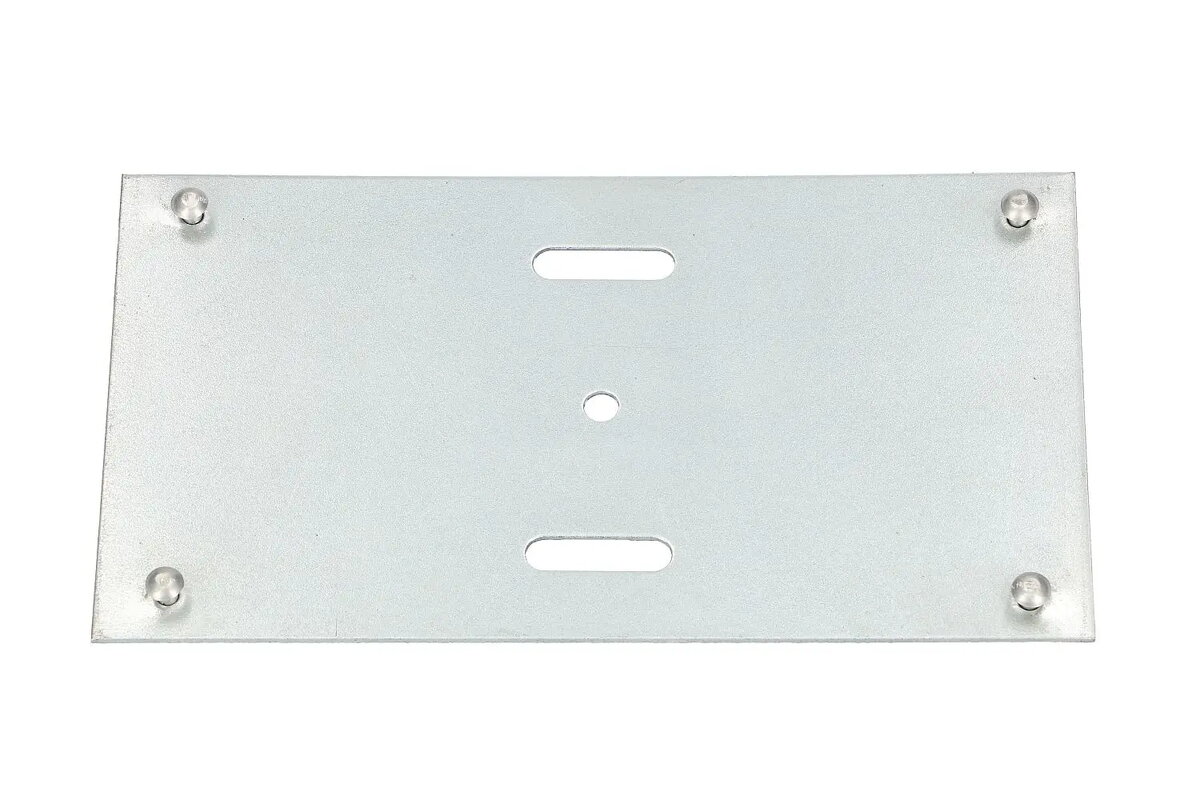

Mounting plate narrow spacing for 16-core fiber optic terminal box, Extralink, stainless steel, bracket adapter, 5 kg

Extralink mounting plate with narrow spacing is designed for organizing and securing fiber terminations inside a 16-core fiber optic terminal box. Constructed from stainless steel, this bracket adapter provides a compact mounting solution for telecom and FTTx enclosures. The plate is supplied as a single unit and supports a maximum static load of 5 kg, enabling reliable support of splices, pigtails and small cable management accessories within the terminal box.

Advantages

The stainless steel construction ensures corrosion resistance and dimensional stability in indoor and sheltered outdoor environments. Narrow spacing accommodates a 16-core splice arrangement while minimizing occupied space inside the enclosure. As a dedicated bracket adapter for fiber optic terminal boxes, it simplifies installation, provides consistent alignment for splice trays and helps maintain orderly cable routing for easier maintenance.

Suitable for

• Organising and securing 16-core fiber splice trays in terminal boxes
• FTTx residential and small-business fiber distribution points
• Indoor or sheltered telecommunications enclosures requiring compact mounting
• Field or rack-mounted fiber cabinets where limited space demands narrow-spacing adapters

Key specifications

• Material: stainless steel
• Designed for: 16 fiber cores (splice capacity)
• Maximum supported load: 5 kg (static)
• Pack contents: 1 mounting plate per pack
• Form factor: narrow spacing bracket adapter for terminal boxes

How to use

Mount the plate inside the fiber optic terminal box at the designated bracket points using appropriate screws or fasteners compatible with the enclosure. Arrange splice trays, pigtails or cable ties on the plate, ensuring that fibers are routed with proper bend radius and strain relief. Verify secure fastening and that no excess tension is applied to splices or connectors. Follow standard fiber handling procedures and safety precautions when performing splicing or rearrangement.

Usage recommendations

For reliable long-term performance, install the mounting plate in a clean, dry environment or a sheltered enclosure. Use compatible splice trays and soft-lined cable management accessories to prevent abrasion. Do not exceed the 5 kg maximum load and avoid applying point loads that could deform the plate. Periodically inspect mounting points and fasteners for corrosion or loosening as part of routine maintenance.
