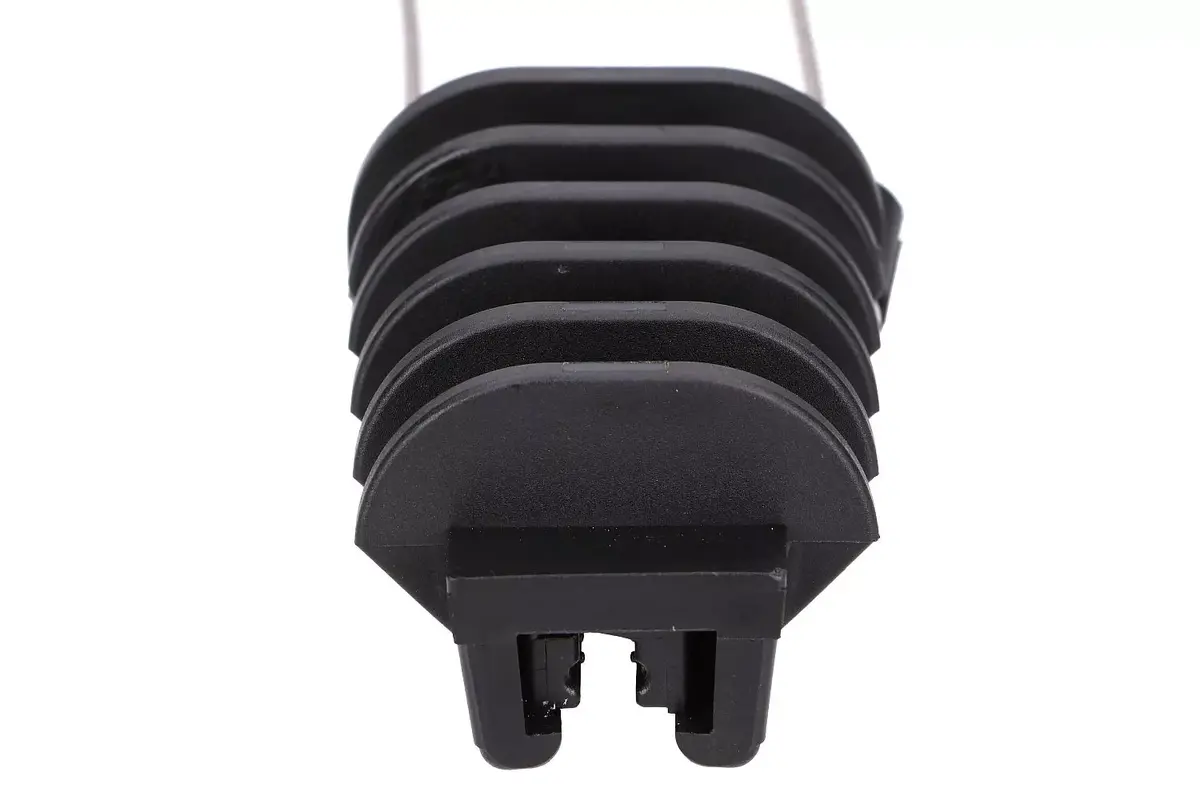

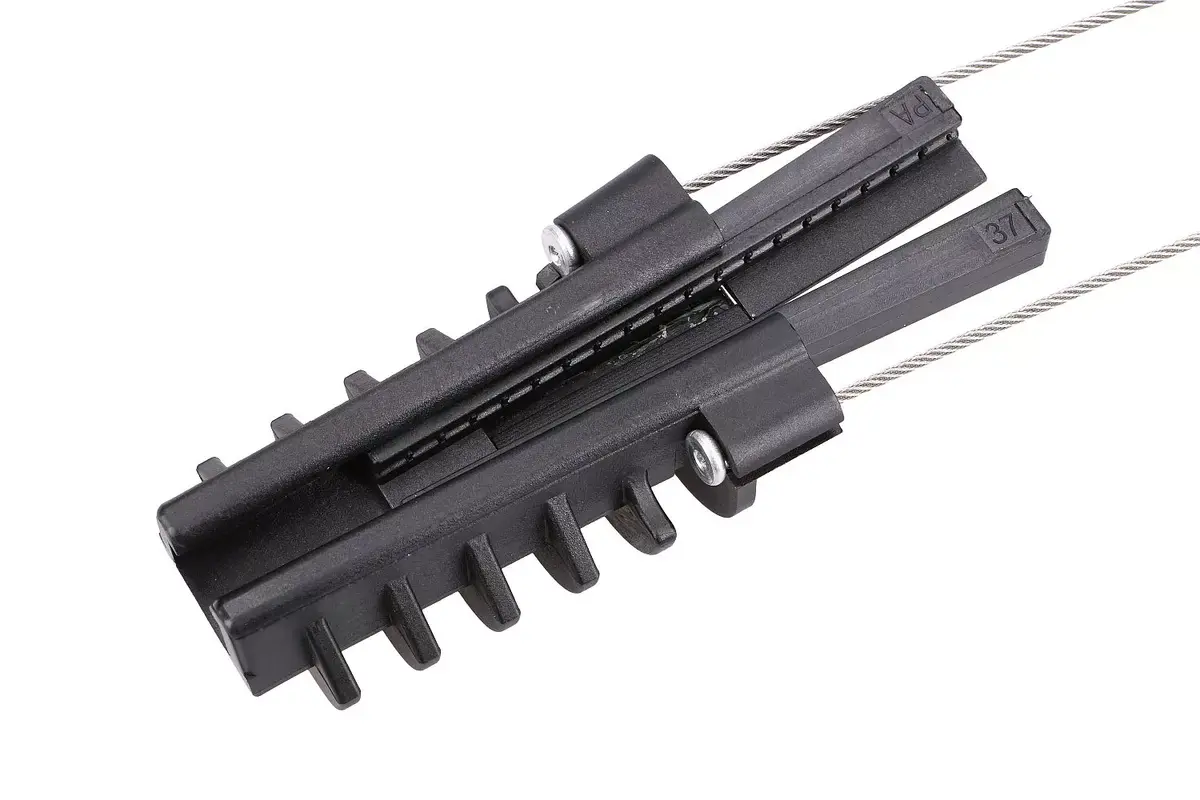

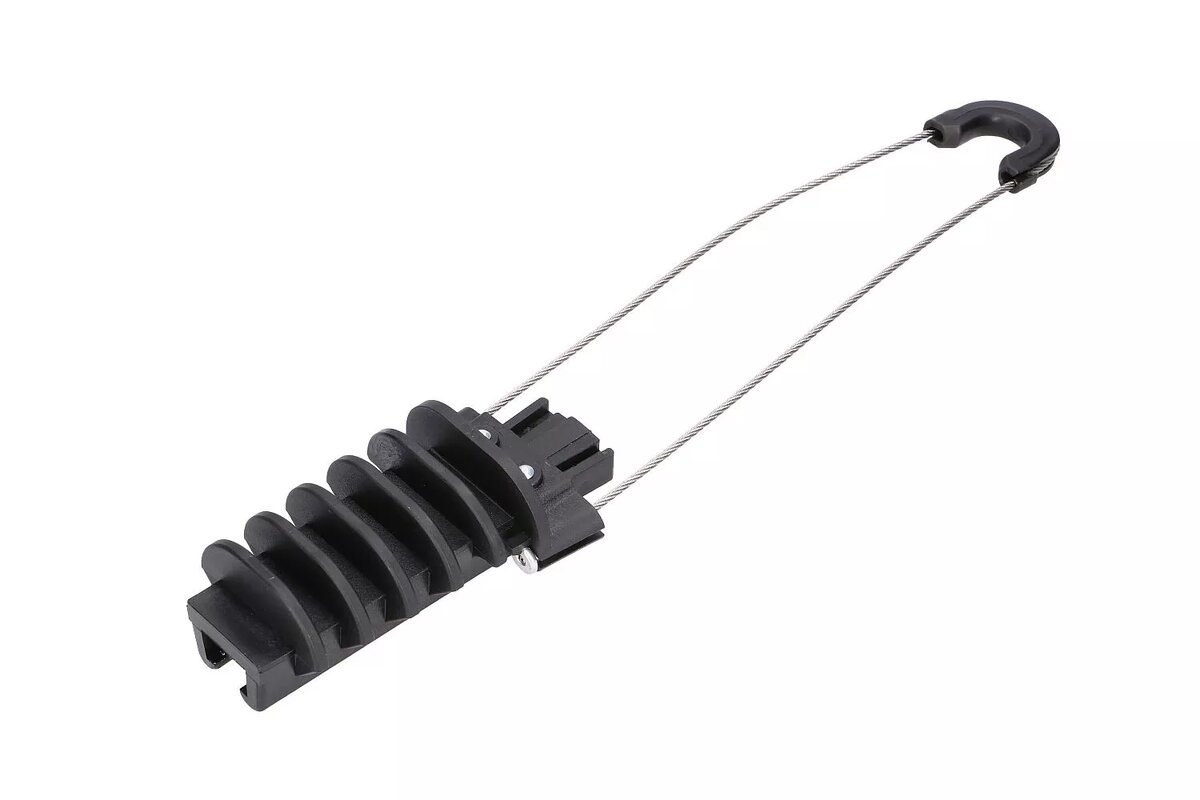

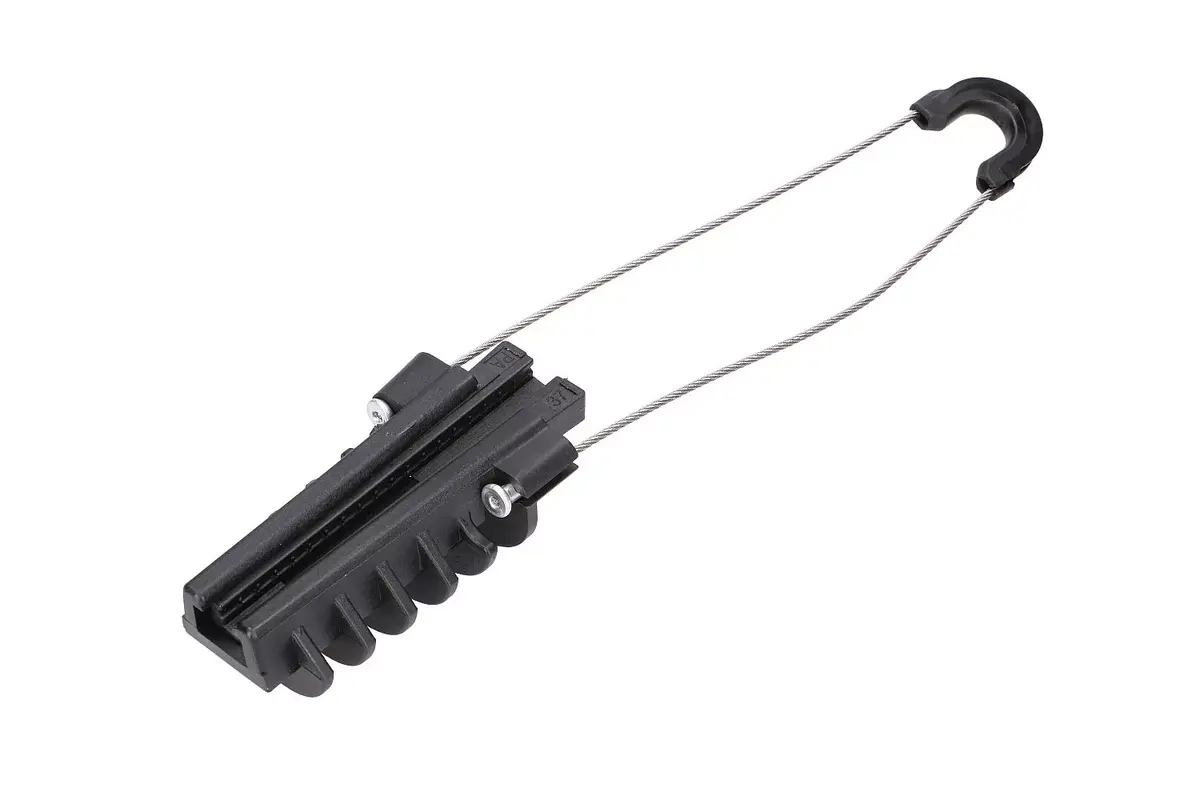

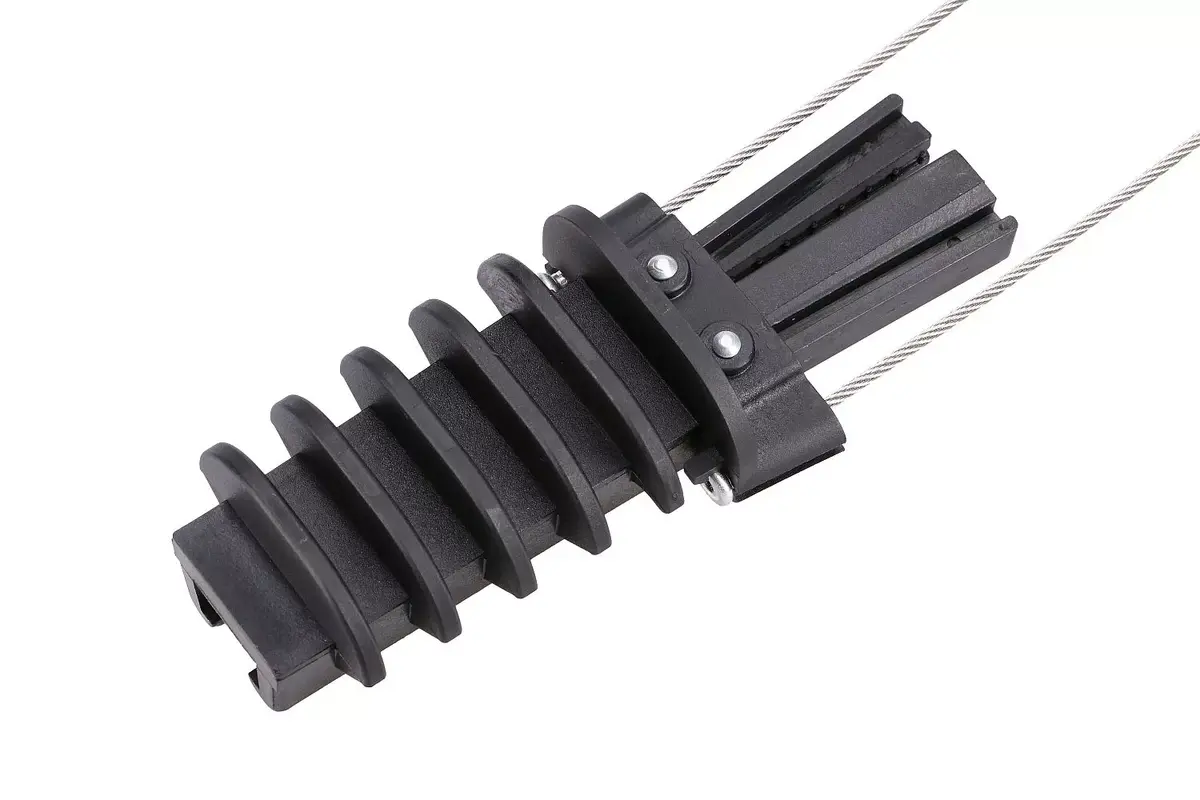

Anchoring clamp Extralink PA6-9 for aerial fiber optic cables

The Extralink PA6-9 anchoring clamp is a specialized hardware solution engineered for the secure installation of aerial fiber optic cables. Designed to accommodate round cables with a diameter ranging from 6 mm to 9 mm, this clamp provides a reliable tensioning point for outdoor network deployments. Constructed from high-quality, weather-resistant ABS plastic and featuring a robust stainless steel bail, the clamp is built to withstand harsh environmental conditions while maintaining the structural integrity of the fiber optic line.

Advantages

The primary advantage of the Extralink PA6-9 is its exceptional durability and resistance to environmental degradation. The combination of UV-stabilized ABS and corrosion-resistant stainless steel ensures that the clamp remains functional over extended periods in various climates. Its design allows for quick and efficient installation, reducing labor time during network deployment. Furthermore, the clamp provides a secure grip that prevents cable slippage without damaging the delicate fiber optic core, ensuring consistent signal transmission and long-term network reliability.

Suitable for

• Aerial fiber optic cable installations
• Telecommunications infrastructure projects
• Outdoor networking and broadband deployments
• Securing round cables between utility poles

When it may not be suitable

This anchoring clamp is not intended for use with flat-drop cables or cables that fall outside the specified diameter range of 6 mm to 9 mm. It is also not suitable for applications requiring extreme tension loads exceeding the rated 3.6 kN capacity.

Key specifications

• Cable diameter compatibility: 6 mm to 9 mm
• Maximum tension strength: 3.6 kN
• Material: ABS plastic and stainless steel
• Application: Aerial outdoor installation

How to use

To install the clamp, first ensure the cable is positioned correctly within the wedge mechanism. Insert the cable into the clamp body, allowing the wedge to grip the outer jacket firmly. Attach the stainless steel bail to the designated hook or mounting bracket on the utility pole. Once attached, verify that the cable is properly tensioned and that the clamp is securely locked in place. The design allows for self-adjusting tension, ensuring the cable remains taut under varying weather conditions.

What to consider before purchase

• Verify the exact outer diameter of your fiber optic cable
• Ensure the mounting hardware on your poles is compatible with the stainless steel bail
• Check local regulations regarding aerial cable installation heights

Usage recommendations: Always inspect the cable jacket for signs of wear before installation. Ensure that the cable is not bent beyond its minimum bend radius during the anchoring process to maintain optimal signal performance.
