Camera monitor Feelworld FW703 7" IPS 1920x1200 Touchscreen Black, Battery/DC 6.5–24V

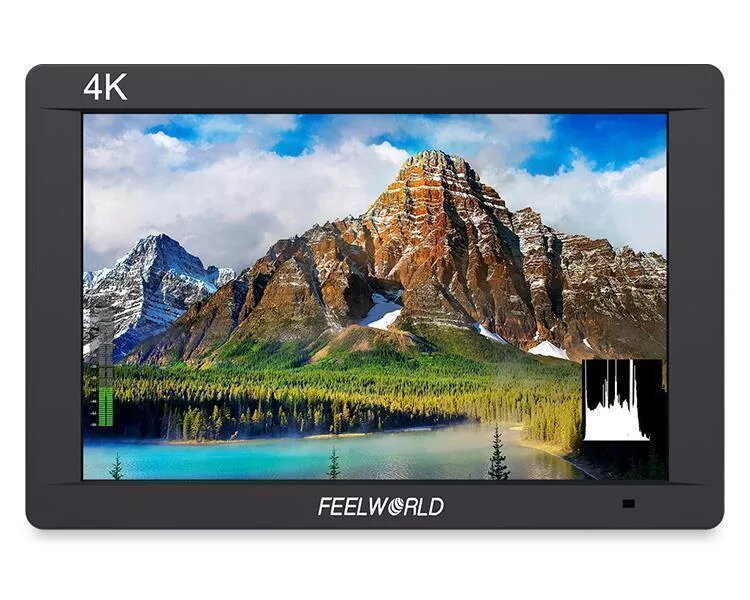

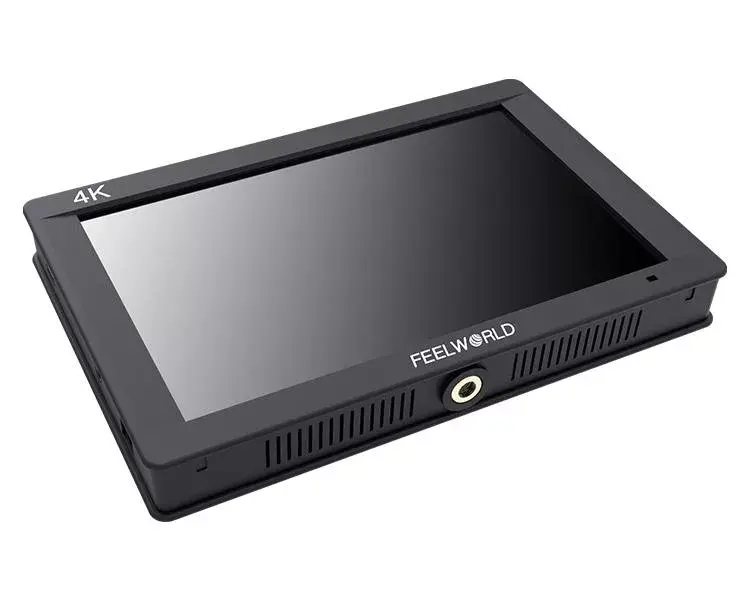

Feelworld FW703 is a 7-inch (17.8 cm) on-camera monitor with a 1920×1200 IPS touchscreen that delivers high pixel density and consistent LED backlight. The monitor is designed for accurate color monitoring and versatile field use, offering both battery and DC power input (6.5–24 V), SDI and 4K HDMI connectivity, and a lightweight, portable form factor suitable for run-and-gun shooting and studio setups.

Advantages

The FW703 provides Full HD 1920×1200 resolution on a 7" IPS panel with a wide 160° viewing angle for stable image visibility as the operator moves. It uses the Rec.709 color standard and factory color calibration for accurate, natural color reproduction and supports ITU/Rec.709 consistent color space and advanced image processing. Compact and lightweight (about 22 mm thick and 320 g), the monitor includes professional monitoring interfaces (3G-SDI and 4K HDMI with loop-out), built-in speaker, headphone jack and USB firmware upgrade. Custom F1/F2 shortcut keys and simple front controls speed up operation on set.

Suitable for

• On-camera monitoring for DSLR, mirrorless and professional video cameras
• Focus pulling and framing during video shoots
• Field production and run-and-gun videography
• Studio monitoring when a small external reference monitor is required
• Multi-monitor setups using SDI/HDMI loop-out

Когда он может быть непригоден

FW703 не предназначен как основной студийный монитор для цветокоррекции высокого уровня, где требуются более продвинутые панели с широкой цветовой гаммой и профессиональным управлением LUT. Для задач с критической передачей цвета в пост‑продакшн может потребоваться контролируемая цветовая среда и эталонные мониторы более высокого класса.

Key specifications

• Screen size: 7 inch (17.8 cm)
• Panel: IPS, 160° viewing angle
• Resolution: 1920 × 1200 (Full HD)
• Pixel density: up to 323 PPI
• Color standard: Rec.709, factory color calibration

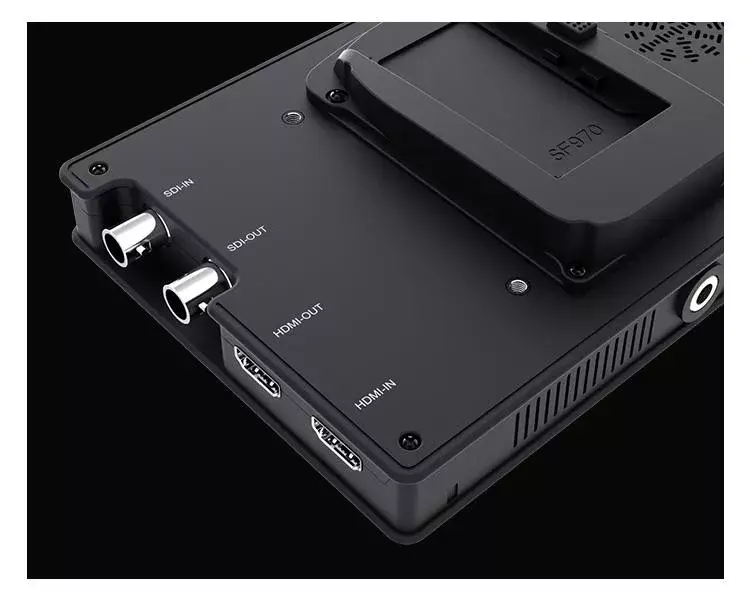

• Inputs/outputs: 3G-SDI in/out (loop-out), HDMI in/out (4K input support and loop-out)
• Audio: 3.5 mm headphone jack, built-in speaker
• Power: Battery or DC input 6.5–24 V
• Dimensions / weight: approx. 22 mm thickness, ~320 g
• Mounting: 1/4"-20 bottom thread, hot shoe mount with 360° rotation

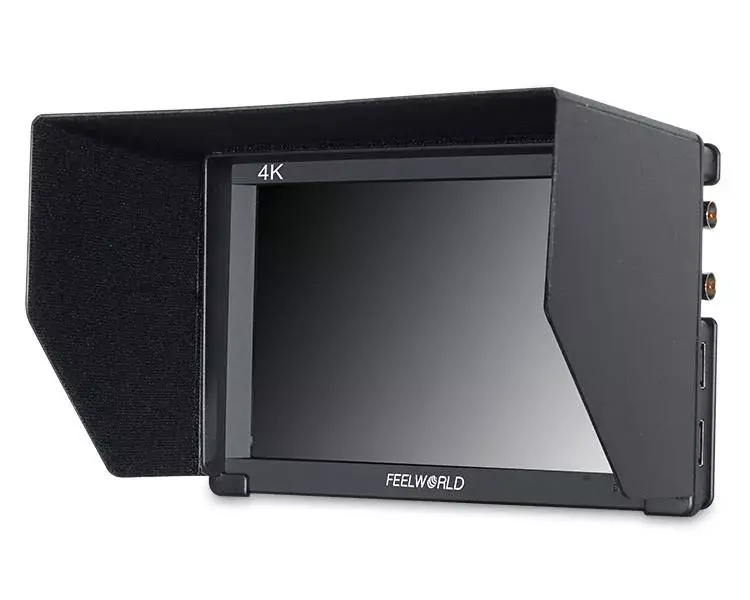

• Other: USB firmware upgrade, collapsible sunshade, F1/F2 customizable shortcut keys

How to use

Mount the FW703 on a camera hot shoe, rig or tripod using the 1/4" thread or the hot shoe mount. Connect video source via HDMI or 3G-SDI; use loop-out to feed additional monitors. Power the monitor from a compatible battery or supply 6.5–24 V DC. Use the touchscreen and front buttons along with the F1/F2 shortcut keys to enable monitoring tools such as focus assist, false color and embedded audio. Adjust image flip or rotate when mounting in different positions and attach the collapsible sunshade for bright outdoor use.

What to consider before purchase

• Whether 7" 1920×1200 resolution and Rec.709 color accuracy meet your monitoring needs
• Required input/output types (3G-SDI and 4K HDMI support) and loop-out functionality for your workflow
• Power options available on your camera rig (battery types or DC voltage 6.5–24 V)
• Weight and size constraints for handheld or gimbal use
• If you need a reference-grade color grading monitor, consider a higher-end studio display

Usage recommendations

For accurate on-set monitoring, perform a quick color check using the built-in Rec.709 calibration and, if possible, compare the monitor image with a reference display when critical color decisions are required. Use the sunshade outdoors and assign F1/F2 to the most frequently used tools like focus assist and false color to speed up operation.
