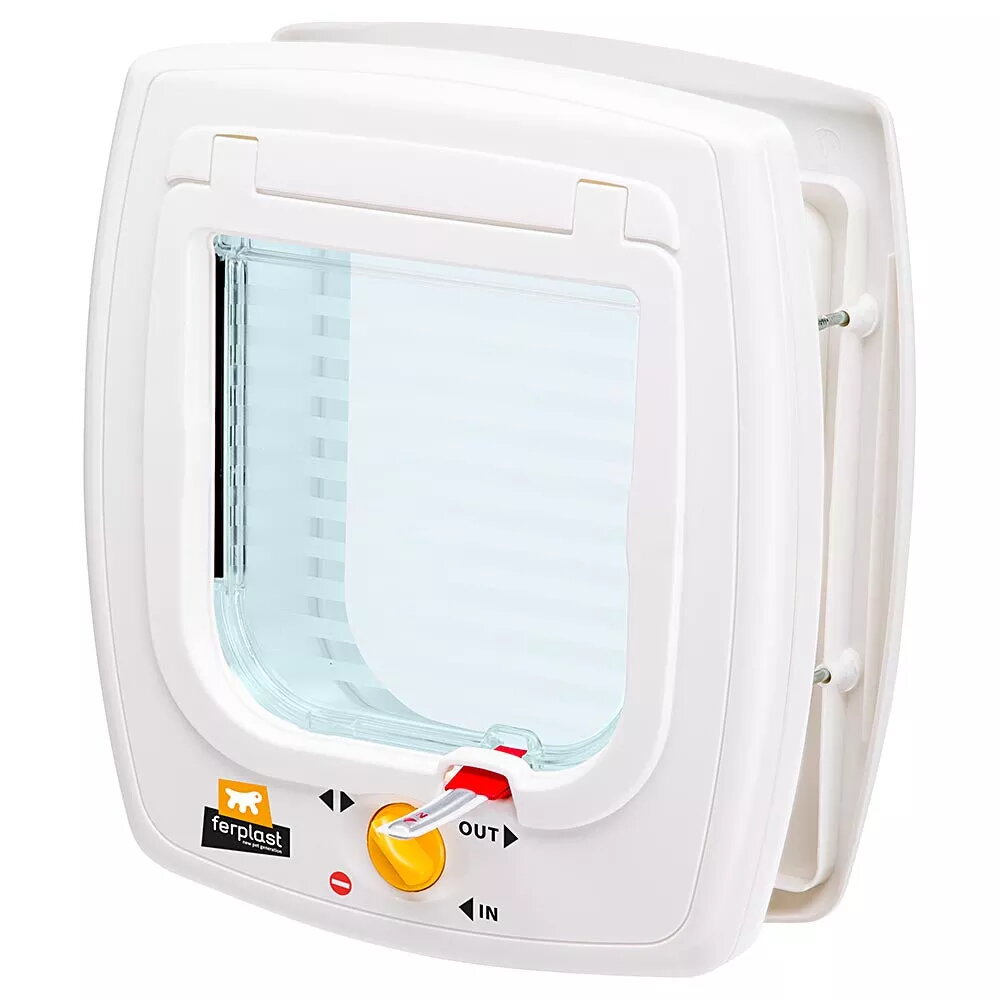

Pet Door Ferplast Swing 5 White Plastic Flap 225x96x252mm

The Ferplast Swing 5 is a white plastic pet door with external dimensions 225 x 96 x 252 mm, designed to allow cats and small-to-medium dogs controlled access through wooden, metal or glass doors and through brick walls. It features a flap mechanism and is supplied with a 5 cm tunnel that can be trimmed to fit the installation. Swing 5 includes a passage indicator to show whether the pet is currently inside or outside.

Advantages

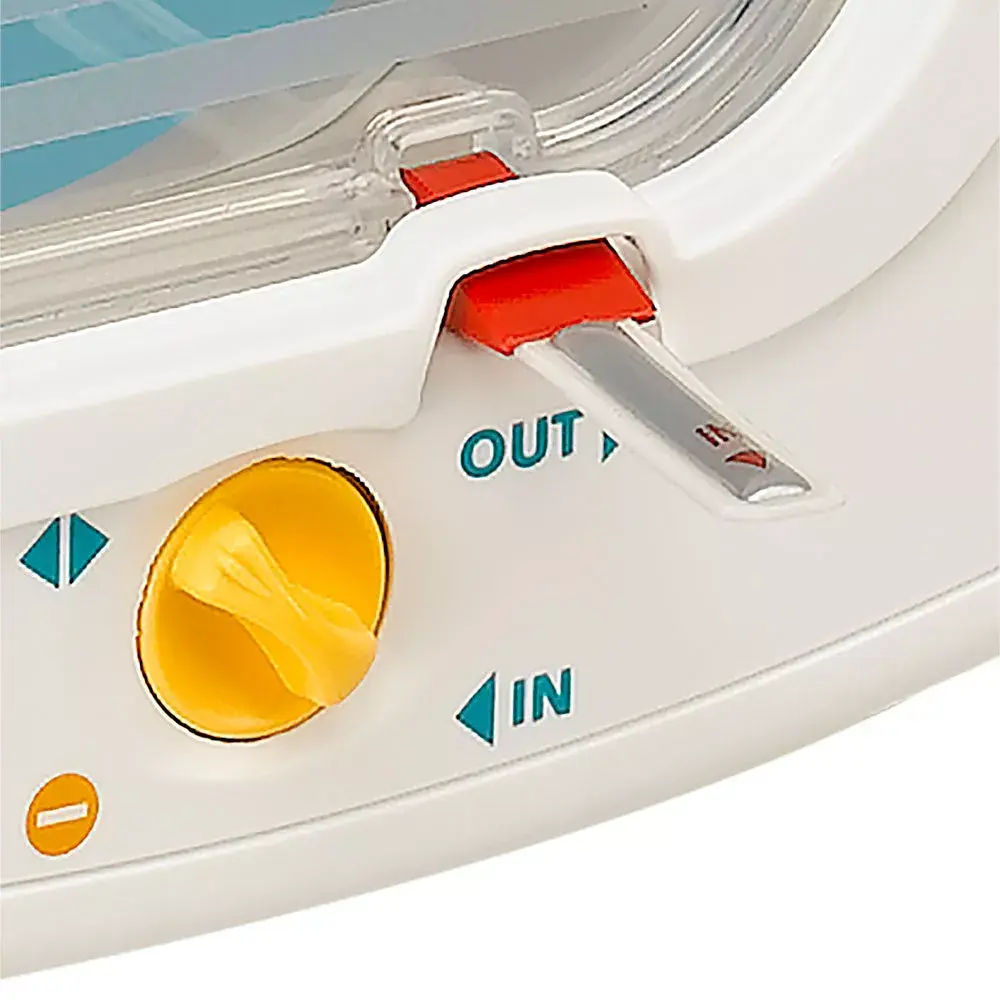

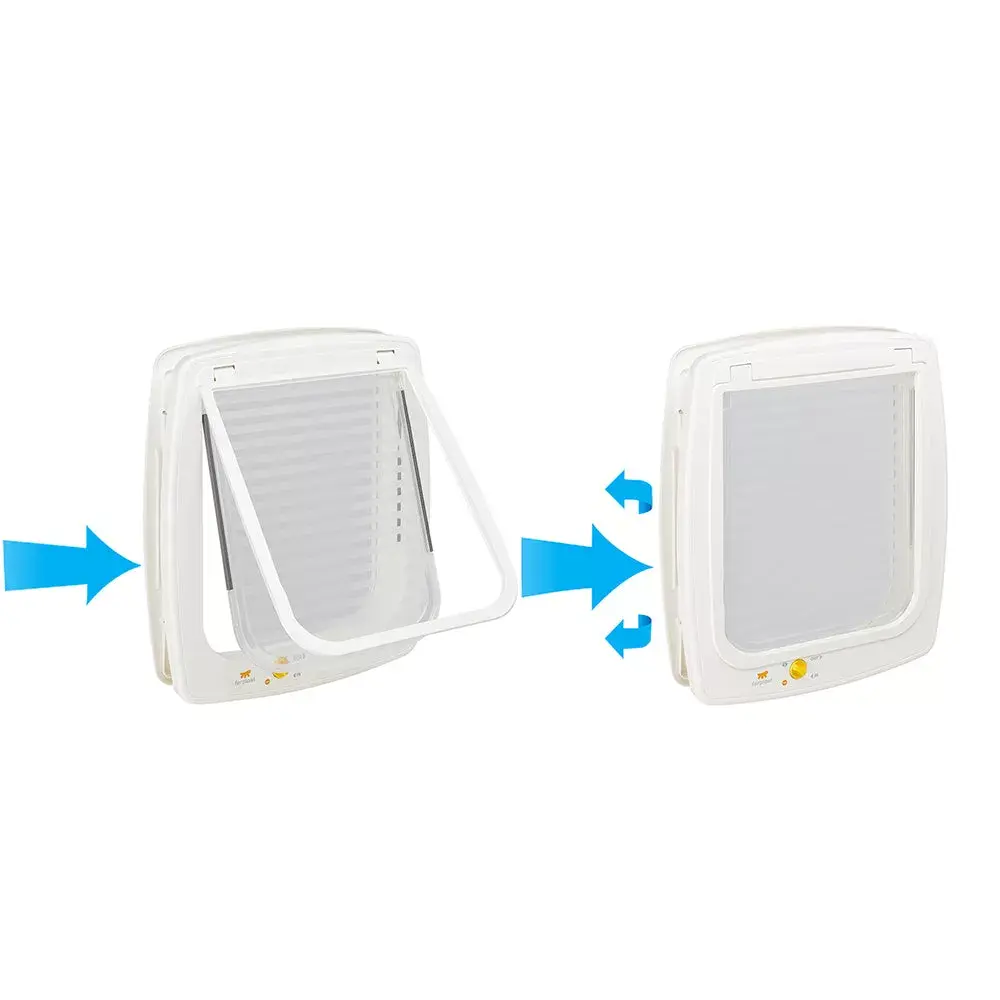

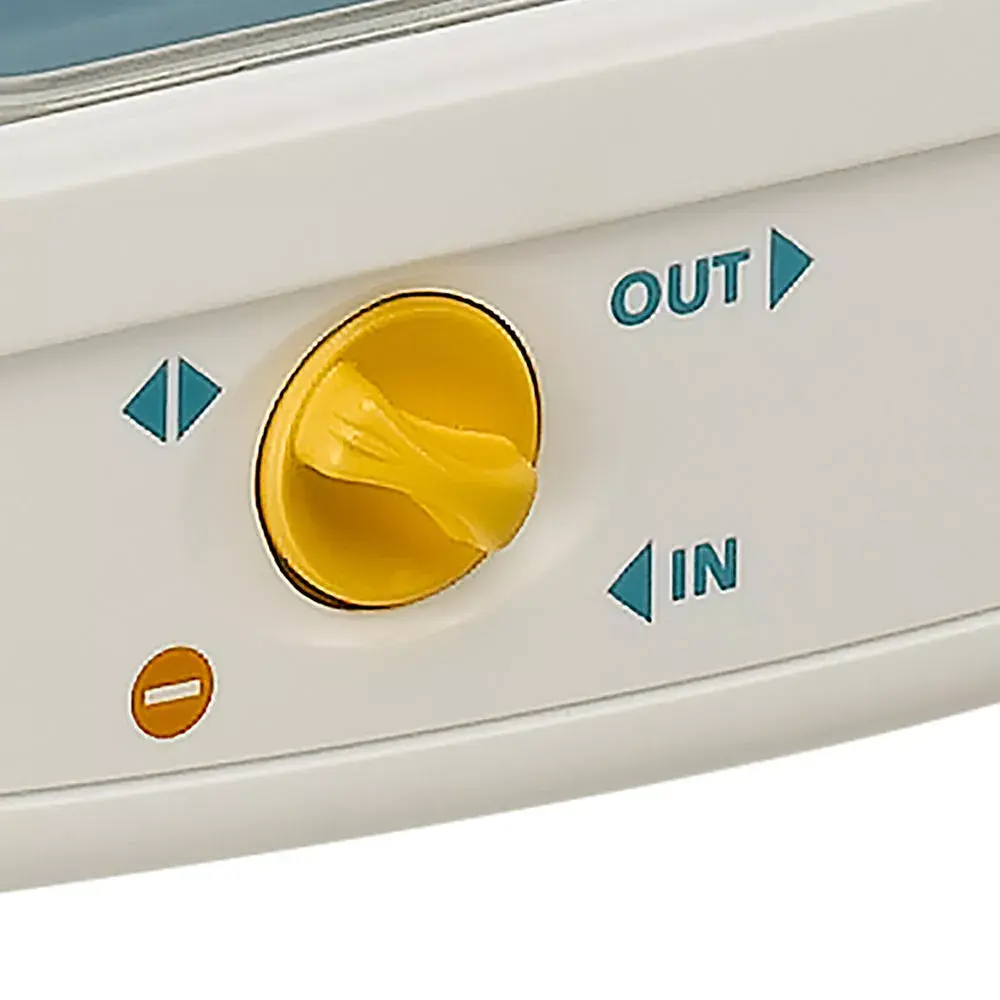

Swing 5 offers a Wind Stopper System to reduce draughts, a 4-way locking system that can be set to entry-only, exit-only, both directions, or fully closed, and a visible flag passage indicator to track the last direction your pet used. The plastic construction provides weather resistance and suitability for indoor and outdoor installations. The included 5 cm tunnel enables adaptation to different door thicknesses and can be trimmed to size for a neat fit.

Suitable for (tasks / use cases)

• Allowing cats and small-to-medium dogs free access between indoors and outdoors
• Installation in wooden or metal doors and in brick walls
• Use in household entrances where a compact pet flap (225×96×252 mm) is required

Key specifications

• Model: Ferplast Swing 5
• Dimensions (W×D×H): 225 × 96 × 252 mm
• Material: white plastic flap and frame
• Tunnel depth: 5 cm (included, trimmable)
• Features: Wind Stopper System, 4-way locking, passage indicator (flag)
• Suitable for: cats and small-to-medium dogs
• Brand: FERPLAST • MPN: 72103011 • EAN: 8010690057231

How to use

Choose a suitable installation location on a wooden, metal or glass door, or in a brick wall; if installing in glass, consult a glazier because holes cannot be drilled in toughened safety glass or double-glazing unless provided by the manufacturer. Cut or trim the supplied 5 cm tunnel to match the door thickness, position the frame and flap in the prepared opening, and secure using appropriate screws (not included). Set the 4-way lock to the desired mode (entry, exit, both, or locked). Observe the passage indicator flag to determine whether your pet is inside or outside.

Usage recommendations

Before installing in glass, consult a professional glazier. Do not trim the tunnel on models that contain delicate mechanisms (Swing 7 and Swing Microchip); trimming is permitted for the Swing 5 tunnel only. Use appropriate fixings for the door material and check the seal around the frame to maintain draught protection.
