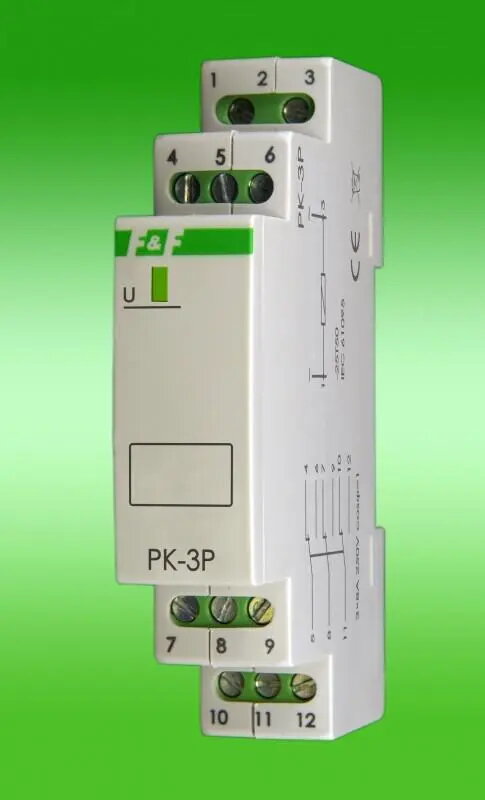

F&F PK-3P/12V Electromagnetic Relay 12V 3x8A

The F&F PK-3P/12V is a robust electromagnetic relay engineered for precise switching operations within electrical control systems. Operating on a 12V DC control voltage, this device provides reliable performance for managing multiple circuits simultaneously. It is equipped with three independent contacts, each capable of handling a load of up to 8A, making it an essential component for automation and power distribution tasks where signal isolation and switching are required.

Advantages

This relay offers significant benefits through its compact design and high-quality construction, ensuring long-term operational stability in demanding environments. The inclusion of three independent contacts allows for versatile circuit configuration, enabling the user to control multiple devices or signals from a single control source. Its efficient electromagnetic mechanism ensures rapid response times and consistent switching performance, which is critical for maintaining the integrity of complex electrical installations.

Suitable for

• Industrial automation systems
• Control panels and switchgear
• Automotive electrical modifications
• Home automation and smart building projects
• Signal switching in low-voltage circuits

When it may not be suitable

This relay is not intended for high-voltage AC applications exceeding its rated insulation parameters. It is also not suitable for environments with extreme moisture or corrosive gases unless housed in an appropriate protective enclosure.

Key specifications

• Control voltage: 12V DC
• Contact configuration: 3 independent contacts
• Maximum current per contact: 8A
• Switching type: Electromagnetic

How to use

Installation should be performed by a qualified professional in accordance with local electrical regulations. Connect the 12V DC control signal to the designated coil terminals to energize the relay. The load circuits should be wired through the respective normally open or normally closed contacts, ensuring that the current does not exceed the 8A limit per contact. Always verify the polarity of the control voltage before finalizing the connection to prevent damage to the internal coil.

What to consider before purchase

• Ensure the control voltage of your system matches the 12V DC requirement.
• Verify that the total load current per contact does not exceed 8A.
• Check the available space in your control cabinet or enclosure for mounting.
• Confirm the number of required switching circuits matches the three-contact configuration.

Usage recommendations

For optimal longevity and safety, ensure that all connections are tightened securely and that the relay is protected from excessive vibration and dust. Periodically inspect the terminals for signs of oxidation or heat-related wear.
