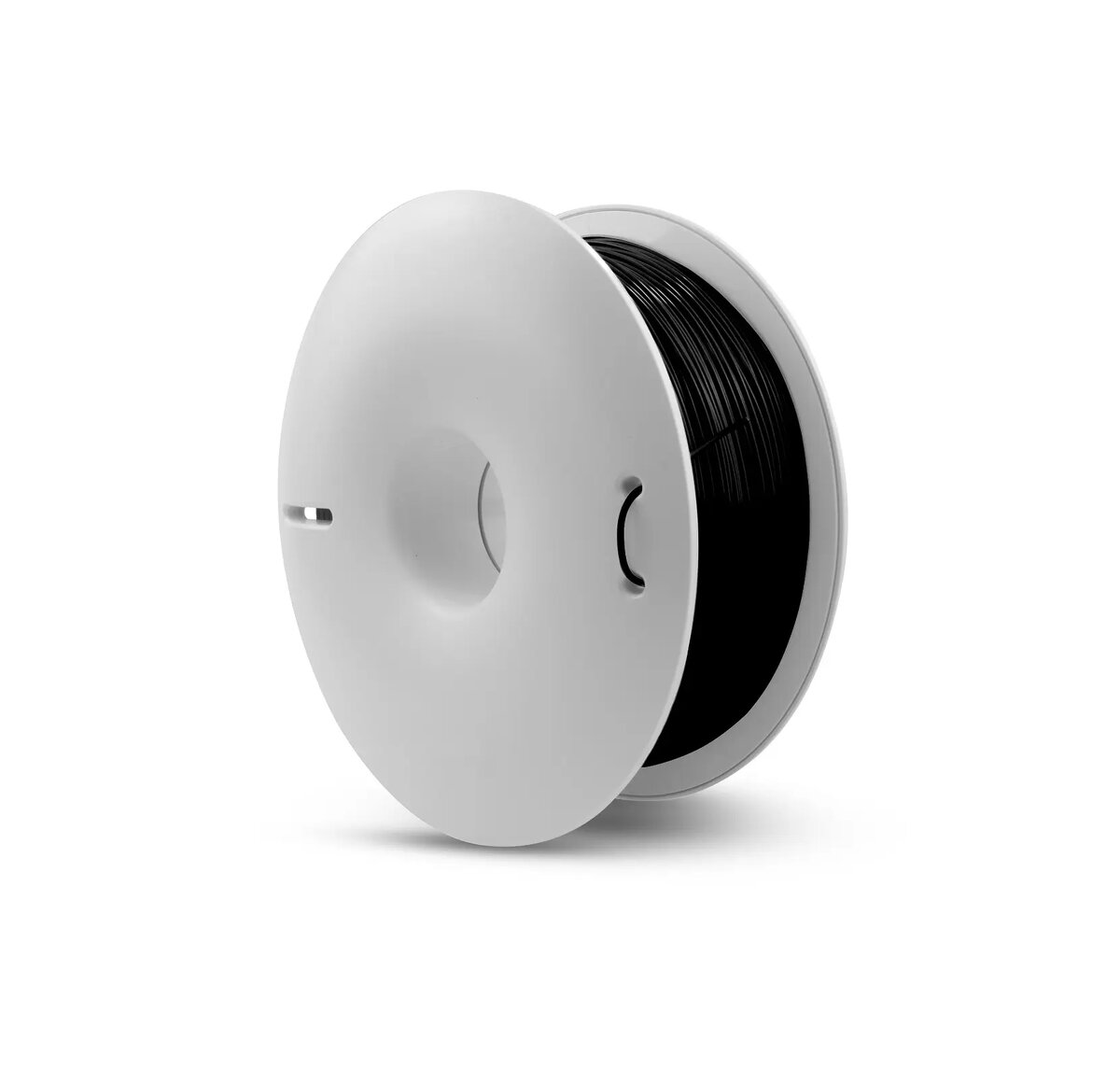

Fiberlogy Nylon PA12 + CF15 3D Printing Filament 1.75 mm 0.5 kg

Fiberlogy Nylon PA12 + CF15 is a professional-grade 3D printing filament engineered with a 15% carbon fiber reinforcement. This composite material combines the inherent durability of polyamide 12 with the structural rigidity of carbon fibers, resulting in a filament that offers significantly reduced shrinkage and enhanced thermal stability compared to standard nylon. It is specifically formulated to produce lightweight yet exceptionally strong components capable of withstanding demanding industrial environments.

The integration of carbon fiber provides a superior strength-to-weight ratio, making it an excellent alternative to metal parts in various engineering applications. The material exhibits high tensile strength and maintains its structural integrity under constant mechanical stress, while its increased thermal resistance allows for reliable performance in temperatures up to 160°C. Its chemical resistance further expands its utility in complex technical projects.

Advantages

The primary benefit of using Fiberlogy Nylon PA12 + CF15 is its remarkable mechanical performance, which includes twice the tensile strength and overall structural rigidity of unmodified PA12. The addition of carbon fiber effectively minimizes the shrinkage typically associated with nylon printing, leading to improved dimensional accuracy and stability for complex geometries. Furthermore, the material is significantly lighter than metal counterparts, allowing for the creation of robust parts that do not add unnecessary mass to the final assembly.

Suitable for

• Automotive prototypes and functional mechanical components
• Drone parts requiring high strength and low weight
• Industrial tools and jigs
• Replacements for metal components in engineering assemblies
• Final-use parts subjected to constant mechanical forces

When it may not be suitable

This filament is not recommended for applications requiring high impact absorption or flexibility, as the carbon fiber reinforcement makes the material rigid and prone to brittle failure under extreme shock. For parts that need to flex or absorb impact energy, a glass fiber-reinforced alternative would be more appropriate.

Key specifications

• Diameter: 1.75 mm
• Diameter tolerance: +/- 0.02 mm
• Ovality tolerance: + 0.01 mm
• Printing temperature: 255 - 270°C
• Bed temperature: 80 - 100°C
• Thermal resistance: Up to 160°C
• Material composition: PA12 with 15% carbon fiber

How to use

To achieve optimal results, ensure your 3D printer is equipped with a hardened steel or sapphire nozzle, as the carbon fiber content is highly abrasive and will quickly wear down standard brass nozzles. The build plate must be heated to the specified range to ensure proper adhesion and prevent warping. It is advisable to print in a controlled environment to maintain consistent temperature levels throughout the build process.

What to consider before purchase

• Requires a hardened steel or sapphire nozzle due to abrasive carbon fibers
• Requires a heated print bed for successful adhesion
• Best suited for rigid, high-strength applications rather than flexible parts
• Ensure your printer is capable of reaching the required 255-270°C nozzle temperature

Usage recommendations: Store the filament in a dry, cool place, preferably in a sealed container with desiccant, as nylon is hygroscopic and absorbs moisture from the air, which can negatively affect print quality.
