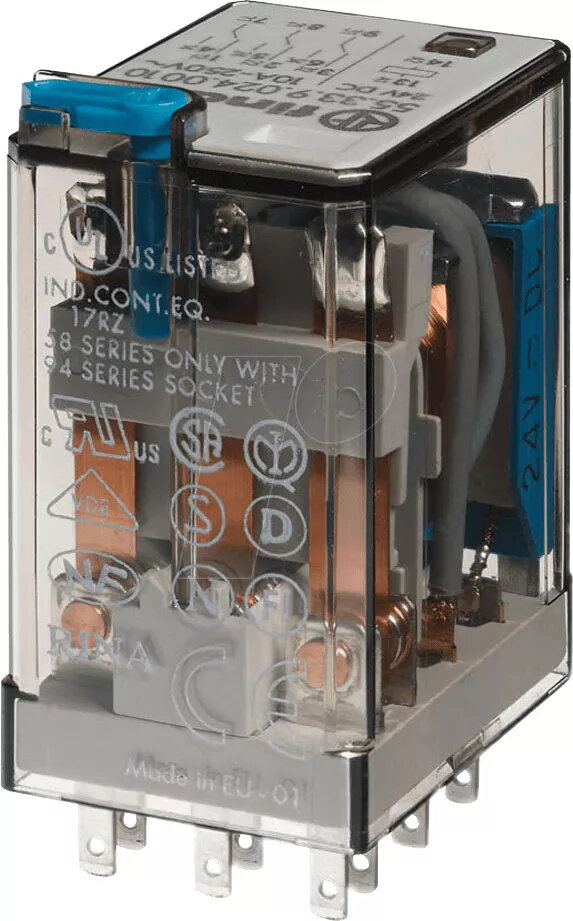

Finder 55.33.9.024.0010 Miniature Plug-in Relay, 24V DC, 10A, 3PDT, with Test Button

The Finder 55.33.9.024.0010 is a high-performance miniature plug-in relay engineered for demanding industrial and automation environments. Operating on a 24V DC coil, this component provides reliable switching for electrical circuits with a rated current of 10A. It features a 3PDT contact configuration, allowing for versatile control over three independent circuits simultaneously. The inclusion of a lockable test button and a mechanical indicator simplifies diagnostic procedures and manual testing, making it an essential tool for maintaining complex electrical systems.

Advantages

This relay stands out due to its robust construction and user-friendly design features that facilitate efficient maintenance. The integrated lockable test button allows technicians to verify circuit functionality without needing to energize the coil, significantly reducing downtime during troubleshooting. Furthermore, the mechanical indicator provides clear visual feedback on the relay status, ensuring that operators can quickly identify active or inactive states. Its compact plug-in design allows for rapid installation and replacement, making it highly suitable for high-density control panels where space is at a premium.

Suitable for

• Industrial automation control panels
• Machine tool control systems
• Power distribution and signal switching
• HVAC system management
• Electrical maintenance and testing equipment

When it may not be suitable

This relay is not intended for high-voltage power switching applications exceeding its 10A rating or for environments with extreme vibration that might require specialized locking sockets. It is also not suitable for direct outdoor installation without a protective enclosure to prevent moisture and dust ingress.

Key specifications

• Coil voltage: 24V DC
• Rated current: 10A
• Contact configuration: 3PDT (3 changeover contacts)
• Features: Lockable test button, mechanical indicator
• Mounting type: Plug-in

How to use

To install the relay, insert it into a compatible 94 series socket, ensuring the pins are correctly aligned with the terminal slots. Once seated, the relay can be operated via the 24V DC control signal. To perform a manual test, rotate the lockable test button to the engaged position, which will manually actuate the contacts. Always ensure the power supply is disconnected before removing or replacing the relay to prevent electrical shock or damage to the contacts.

What to consider before purchase

• Verify that your control circuit provides a stable 24V DC supply.
• Ensure the load current does not exceed the 10A limit.
• Check compatibility with your existing relay socket base.
• Confirm the space requirements for the relay and its socket within your enclosure.

Usage recommendations

For optimal longevity and performance, ensure the relay is installed in a clean, dry environment and protected from excessive heat. Regularly inspect the contacts for signs of wear if the relay is used in high-frequency switching applications.
