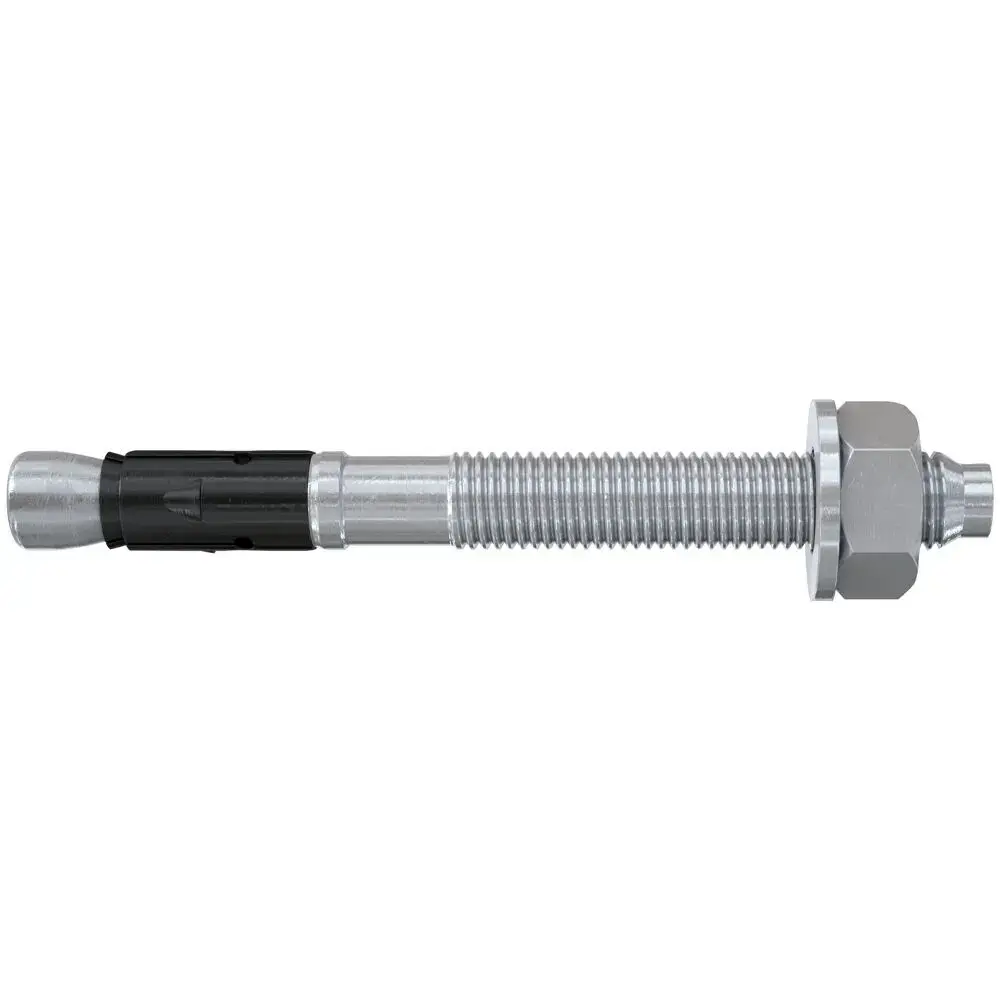

Fischer 564579. Suitable for materials: Brick, Concrete, Material: Zinc plated steel, Connecting thread type: M10. Diameter: 1 cm, Length: 95 mm, Drill hole diameter: 1 cm. Quantity per pack: 50 pc(s)
Key Features
- Quick and easy assembly without the need for drill hole cleaning (M8-M24)
- Decisive increase in tensile load-bearing capacity due to the new assessment (ETA) - fewer fixing points and smaller anchor plates save time and costs
- Highest durability over a service life of 120 years is confirmed by the external test certificate of the FAZ II Plus (M10-M16)
- Highest seismic loads for diameters M10-M24 with and without the use of the filling disc FFD
- Millimeter accurate adjustment to the loads due to the variable anchoring depths

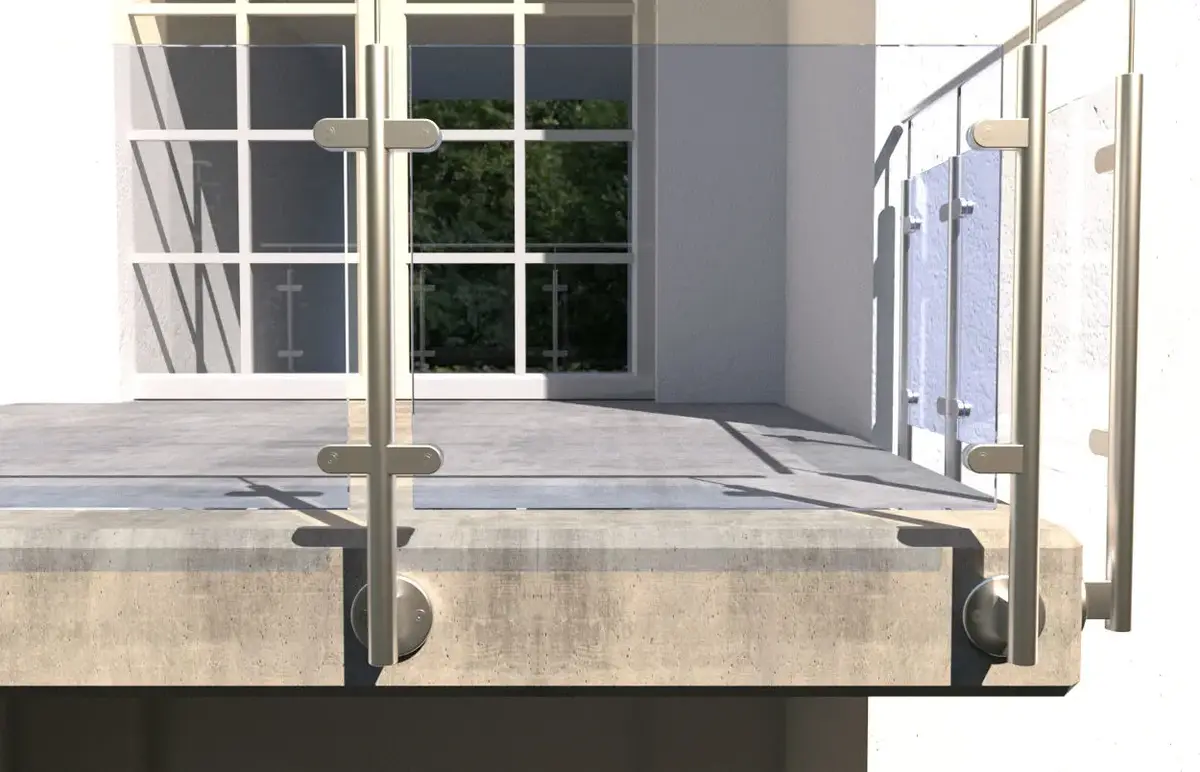

The fischer bolt anchor FAZ II Plus is the steel anchor for the highest demands with high tensile strengths and a wide range of applications. Heavy loads can be secured in cracked concrete using the steel anchor. The FAZ II Plus is easier and faster to set due to the elimination of drill hole cleaning (M8-M24). The tried-and-tested expansion clip safely introduces the loads into the concrete and enables an immediately loadable, high load-bearing capacity. For example, the steel anchor is ideal for the anchoring of railings, cable trays, and consoles.
Advantages- Quick and easier assembly without the need for drill hole cleaning (M8-M24).
- Numerous approval certificates for different substrate materials (concrete C12/15-C80/90, steel fiber concrete, solid sand-lime brick) increase the number of applications and fields of use.
- With the new assessment (ETA), the tensile strengths increase decisively. As a result, fewer fixing points and anchors are required.
- The ETA evaluation, together with other test reports (RWS, ZTV, ETK), ensures high loads in case of fire.
- An external independent assessment confirms the service life of anchorages up to 120 years. Thus, the FAZ II Plus outlasts a whole century and is perfectly suited for large, long-lasting construction projects (M10-M16).
- The FAZ II Plus allows the absorption of high seismic loads of performance category C1 and C2 for diameters M10-M24 with and without the use of the filling disc FFD at installation.
- The variable anchorage depths allow a millimetre-accurate adjustment to the loads.
Functionality- The FAZ II Plus is suitable for pre-positioned and push-through installation and is also ideal for stand-off installation thanks to the long thread.

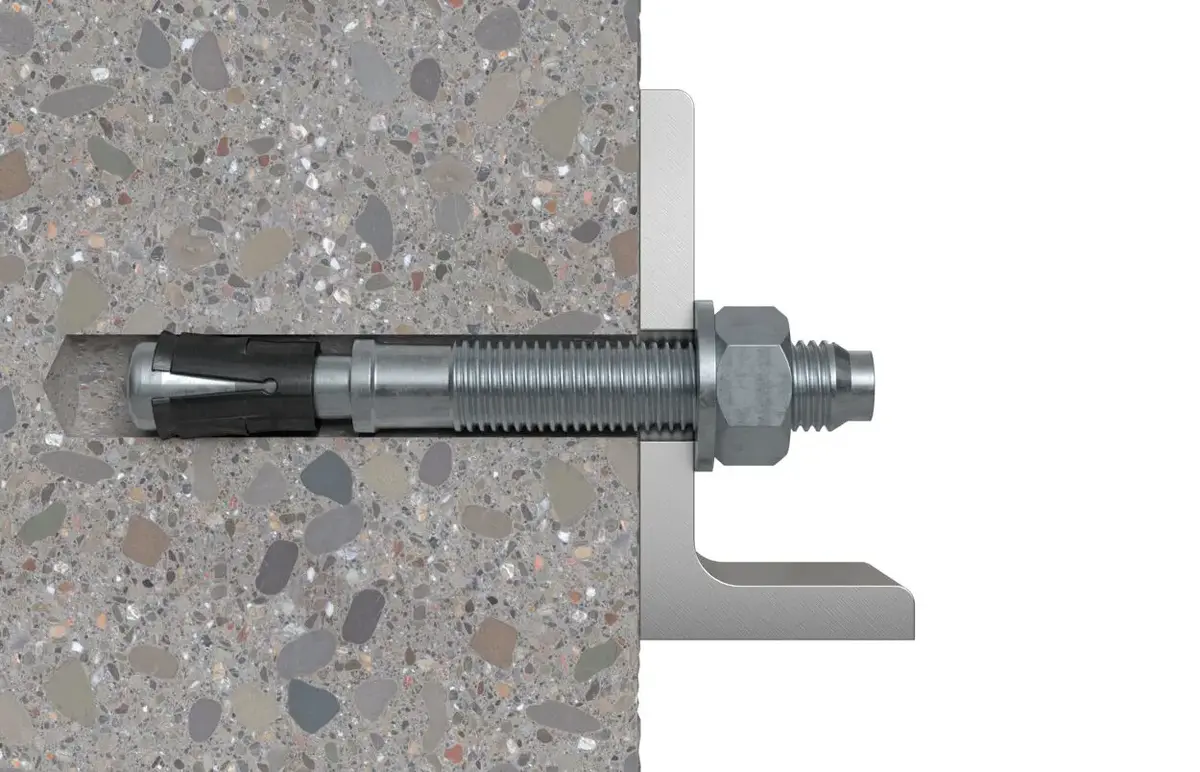

- When applying the torque, the cone bolt is pulled into the expansion sleeve and expands it against the drill hole wall.
- The anchor is set in line with the approval once the preset installation torque is achieved.
- In the case of series installation, we recommend using the FABS or FA-ST II anchor bolt setting tools.
- In case of seismic demands, the annular gap can be filled using the filling disc FFD.
