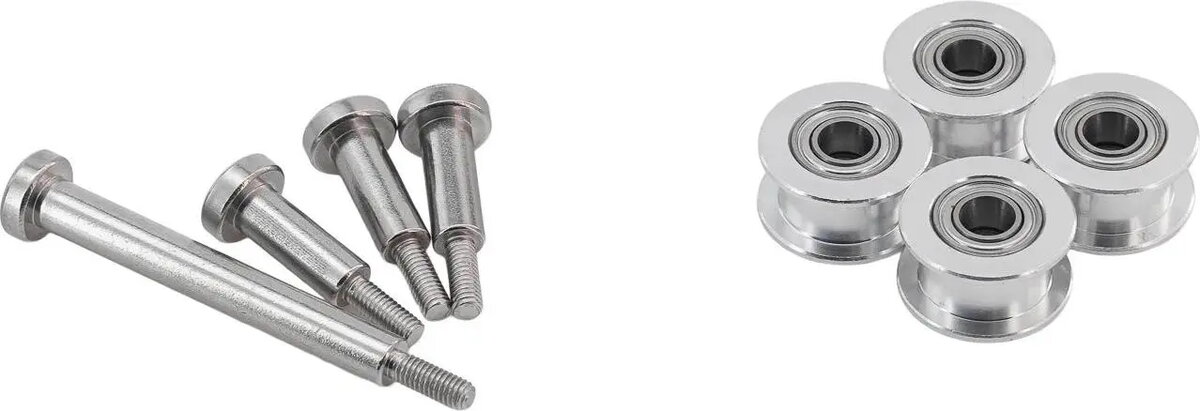

Flashforge AD5M/MP/X XY Shaft Driven Wheel for 3D Printers

The Flashforge AD5M/MP/X XY shaft driven wheel is a precision-engineered replacement component specifically designed for Flashforge 3D printers. This essential mechanical part facilitates smooth and accurate movement along the XY axis, which is critical for maintaining high print quality and consistent performance. By replacing worn or damaged wheels, users can restore the mechanical integrity of their printer and ensure reliable operation during long-term use.

Advantages

This replacement wheel offers high durability and precise dimensions, ensuring a perfect fit within the printer's motion system. Its robust construction minimizes friction and vibration, which directly contributes to cleaner print surfaces and more accurate dimensional results. As an original component, it guarantees compatibility and ease of installation, allowing for efficient maintenance without the need for complex modifications.

Suitable for

• Replacement of worn-out XY axis wheels in Flashforge AD5M, AD5M Pro, and AD5M series printers
• Routine maintenance to restore print accuracy and movement smoothness
• Repairing mechanical issues related to axis jitter or inconsistent layer alignment

When it may not be suitable

This component is not compatible with printer models outside of the specified Flashforge AD5M series. It is also not intended for use in printers that utilize linear rail systems instead of wheel-based motion assemblies.

Key specifications

• Component type: XY shaft driven wheel
• Compatibility: Flashforge AD5M, AD5M Pro, AD5M series
• Function: Facilitates smooth axis movement
• Material: Wear-resistant engineering plastic

How to use

To install the wheel, first power off and unplug the 3D printer. Carefully remove the existing wheel assembly from the XY axis carriage by loosening the eccentric nut or mounting screws. Clean the rail surface of any debris or old lubricant. Place the new wheel onto the shaft, ensuring it is properly seated. Adjust the eccentric nut to achieve the correct tension against the rail, ensuring the carriage moves smoothly without wobbling or excessive resistance. Reconnect the power and perform a test print to verify the movement.

What to consider before purchase

• Verify your printer model matches the AD5M series
• Check if the current print issues are caused by wheel wear or other mechanical factors
• Ensure you have the necessary tools for disassembly and reassembly

Usage recommendations

Regularly inspect the condition of your printer's wheels for signs of flat spots or debris buildup. Keeping the rails clean and properly tensioned will significantly extend the lifespan of these components and maintain optimal print quality.
