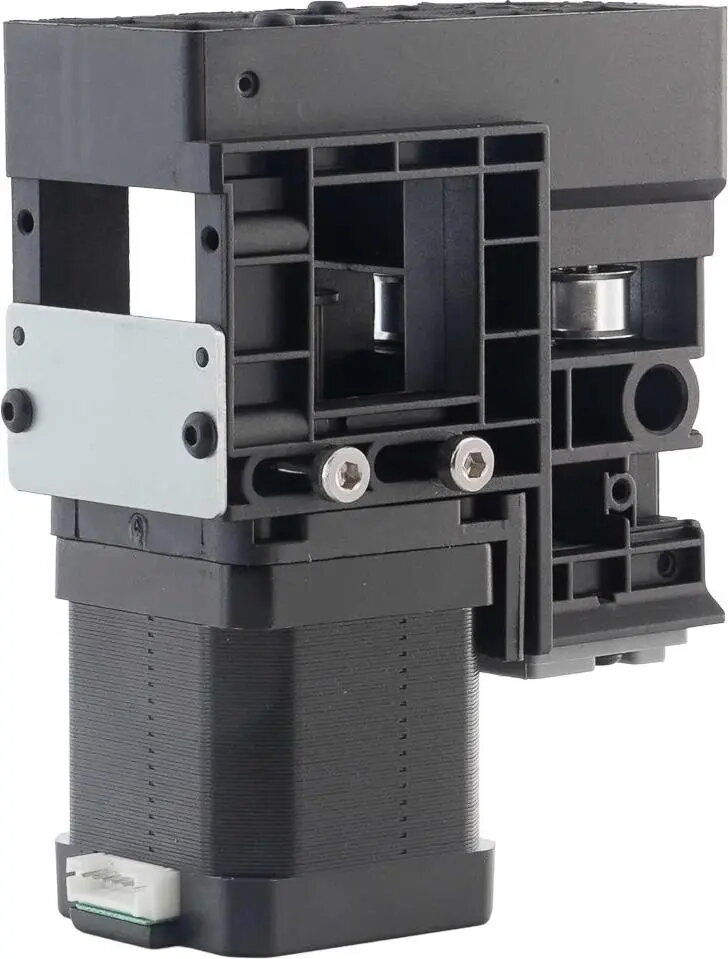

Flashforge AD5X Right Rear Corner Module Assembly

The Flashforge AD5X Right Rear Corner Module Assembly is a precision-engineered structural component designed specifically for Flashforge 3D printers. This genuine replacement part serves as a critical junction for the printer frame, ensuring that the chassis remains rigid and perfectly aligned during operation. By maintaining the structural integrity of the machine, this module helps prevent mechanical vibrations and misalignment issues that can negatively impact print quality.

Advantages

This module assembly offers a seamless fit for compatible Flashforge models, allowing for a straightforward installation process without the need for extensive modifications. Its robust construction provides long-term durability, ensuring that the printer frame remains stable even during high-speed printing tasks. By replacing a worn or damaged corner module with this genuine part, users can restore the original factory precision and reliability of their 3D printing equipment.

Suitable for

• Repairing damaged or misaligned printer frames
• Restoring structural stability to Flashforge AD5X series printers
• Routine maintenance to ensure long-term printing accuracy

This component is not suitable for 3D printer models outside of the specified Flashforge AD5X series. It is also not intended for use as a universal frame connector for custom-built 3D printers or other brands of equipment.

Key specifications

• Genuine Flashforge replacement part
• Designed for the right rear corner position
• High-strength structural material
• Precise mounting hole alignment

To install the module, first ensure the printer is powered off and disconnected from the electrical supply. Carefully remove the outer casing or panels as required to access the rear corner of the frame. Unscrew the damaged module, noting the orientation of any cables or fasteners, and replace it with the new assembly. Secure the screws firmly to ensure the frame is rigid, then reassemble the printer panels before powering the device back on.

What to consider before purchase

• Verify compatibility with your specific printer model version
• Ensure you have the necessary tools for disassembly
• Check if the damage is limited to the module or if the frame itself is bent

For optimal results, ensure all frame screws are tightened evenly after installation to maintain perfect perpendicularity of the printer axes. Regularly inspect the frame modules for signs of wear or loosening to prevent future printing errors.
