Type:
Characteristics of the device.
-

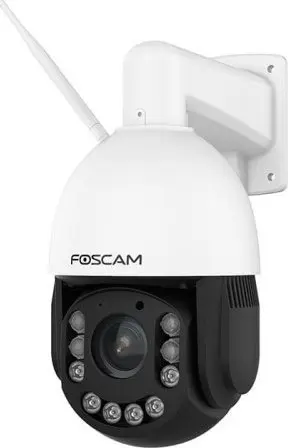

IP security camera
-
Optical zoom:
Indicates the optical zoom capacity, which is the number of times that the picture can be enlarged with the optics of the camera.
-
4 x
-
Weight:
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
-
1.57 kg
-
Certification:
-
CE, RoHS, FCC, IP66
-
Wi-Fi standards:
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
-
802.11b, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a
-
Audio system:
System used to play music or speech.
-
2-way
-
Security algorithms:
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
-
WPA2, WPA
-
Zoom capability:
The amount that the camera lens can zoom.
-
Yes
-
Supported network protocols:
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
-
IP, TCP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, RTSP
-
Operating relative humidity (H-H):
-
20 - 85
-
Compatible memory cards:
Types of memory cards which can be used with this product.
-
MicroSD (TransFlash)
-
Storage temperature (T-T):
The minimum and maximum temperatures at which the product can be safely stored.
-
-20 - 60
-
Form factor:
The shape or design of the product.
-
Dome
-
Operating temperature (T-T):
The minimum and maximum temperatures at which the product can be safely operated.
-
-20 - 60
-
Ethernet LAN:
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
-
Yes
-
Storage relative humidity (H-H):
-
0 - 90
-
Height:
The measurement of the product from head to foot or from base to top.
-
277 mm
-
Antenna type:
Type of antenna, also known an aerial, e.g. external, internal.
-
External
-
Focal length range:
Measure of how strongly the system converges or diverges light. For an optical system in air, it is the distance over which initially collimated rays are brought to a focus. A system with a shorter focal length has greater optical power than one with a long focal length; that is, it bends the rays more strongly, bringing them to a focus in a shorter distance.For an optical system in air, the effective focal length (f and f′) gives the distance from the front and rear principal planes (H and H′) to the corresponding focal points (F and F′).
-
2.8 - 12
-
Sensor type:
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
-
CMOS
-
Width:
The measurement or extent of something from side to side.
-
138 mm
-
Connectivity technology:
The technology that enables connectivity of the device, e.g. wired or wireless.
-
Wireless
-
Maximum resolution:
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
-
2304 x 1536
-
Product colour:
The colour e.g. red, blue, green, black, white.
-
White
-
Cables included:
-
LAN (RJ-45)
-
LED type:
-
IR
-
Audio formats supported:
The audio formats which this device or software can read/use e.g. MP3, MP4.
-
PCM
-
Video compression formats:
-
H.264
-
Built-in speaker(s):
The device contains speaker(s) to produce sound.
-
Yes
-
Length:
The measurement or extent of something from end to end.
-
215 mm
-
Wi-Fi:
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
-
Yes
-
Card reader integrated:
A card reader is a device that enables reading and, in some cases, writing data to and from a memory card.
-
Yes
-
Placement supported:
Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.
-
Outdoor
-
Frame rate:
-
20 fps
-
Supported graphics resolutions:
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
-
2560 x 1440, 2304 x 1296, 1920 x 1080 (HD 1080), 1280 x 720 (HD 720), 640 x 480 (VGA)
-
Supported video modes:
The video modes that can be displayed by the device.
-
1080p, 720p
-
Minimum aperture number:
The minimum size of the hole through which light enters a camera.
-
1.8
-
Night vision:
Night vision is technology which allows you to see in low light conditions.
-
Yes
-
Number of illumination LEDs:
-
6
-
Mounting type:
Type of mounting e.g. wall mounting.
-
Wall
-
Video motion detection:
-
Yes
-
Audio detection:
-
Yes
-
IP address filtering:
-
Yes
-
Video formats supported:
The type of video formats that can be used by this device.
-
H.264
-
DC output voltage:
-
12
-
DC output current:
-
2 A
-
Maximum memory card size:
The maximum size of memory card that can be used with this device.
-
256 GB
-
Ethernet interface type:
-
Fast Ethernet
-
PTZ control:
-
Yes
-
International Protection (IP) code:
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
-
IP66
-
Windows operating systems supported:
Windows vesions wich can be used with the device.
-
Yes
-
Mac operating systems supported:
Mac operating systems e.g. OS X can be used with the device.
-
Yes
-
Power source type:
What the power source is.
-
DC
-
Total megapixels:
A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels).
-
4 MP
-
Image quality adjustment:
-
Sharpness, Saturation, Contrast, Brightness
-
Protection features:
Physical effects from which the product is protected e.g. water resistant, crash proof.
-
Waterproof
-
Night vision distance:
-
50
-
Wide Dynamic Range (WDR):
-
Yes
-
Day/night mode:
-
Yes
-
Number of cameras:
The quantity of cameras that product can support.
-
1
-
Mobile operating systems supported:
The operating systems e.g. Android, iOS, that can be used with the mobile device.
-
iOS
-
Power consumption (max):
The maximum amount of power used by the device.
-
20 W
-
Number of lenses:
The number of lenses installed in the device.
-
1
-
Flip & mirror:
-
Yes
-
Alert notification type:
-
E-mail
-
Infrared (IR) cut-off filter:
-
Yes
-
Camera pan control:
-
Yes
-
Camera tilt control:
-
Yes
-
Lens viewing angle, horizontal:
-
83
-
Lens viewing angle, vertical:
-
44.6
-
Lens viewing angle, diagonal:
-
97
