PC Case Fractal Design Define 7 XL

Name: PC Case Fractal Design Define FD-C-DEF7X-01
Brand: Fractal Design
SKU: 3091384
Price: 233.99 EUR
Availability: OutOfStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

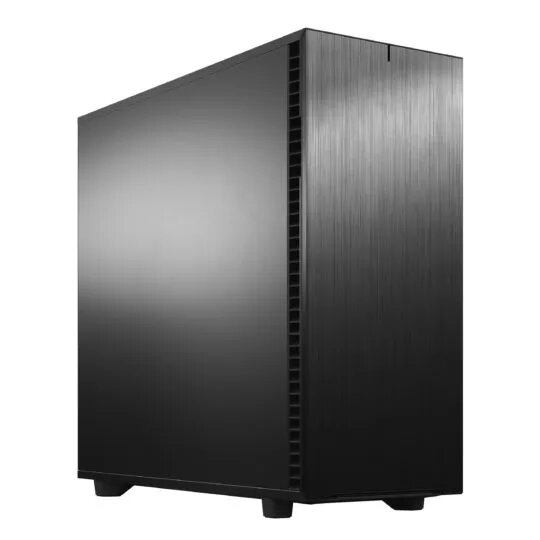

PC Case Fractal Design Define 7 XL Midi Tower Black

PC Case Fractal Design Define 7 XL Photo 1

PC Case Fractal Design Define 7 XL Photo 2

PC Case Fractal Design Define 7 XL Photo 3

PC Case Fractal Design Define 7 XL Photo 4

PC Case Fractal Design Define 7 XL Photo 5

PC Case Fractal Design Define 7 XL Photo 6

PC Case Fractal Design Define 7 XL Photo 7

PC Case Fractal Design Define 7 XL Photo 8

PC Case Fractal Design Define 7 XL Photo 9

PC Case Fractal Design Define 7 XL Photo 10

PC Case Fractal Design Define 7 XL Photo 11

PC Case Fractal Design Define 7 XL Photo 12

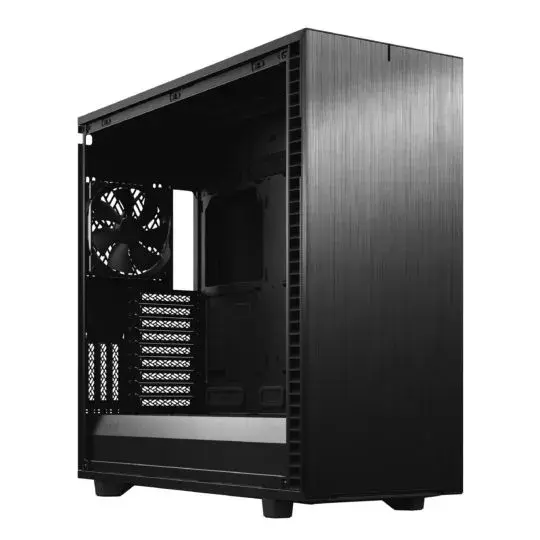

PC Case Fractal Design Define 7 XL Photo 13

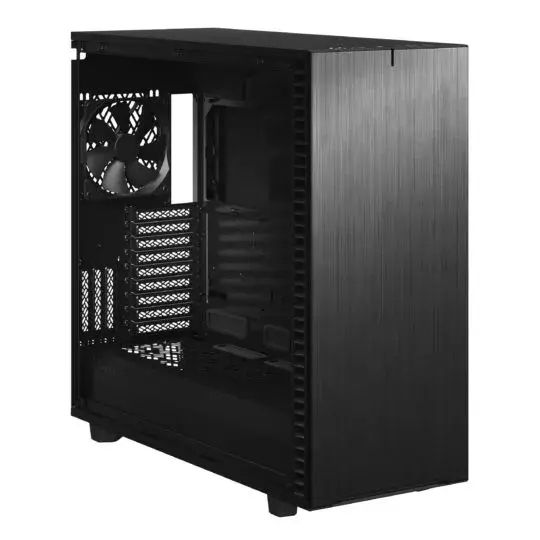

PC Case Fractal Design Define 7 XL Photo 14

Short description

The Fractal Design Define 7 XL is a spacious Midi Tower PC case designed for optimal airflow and cooling. It supports ATX power supplies and accommodates various fan sizes (120/140 mm) at the front, rear, and top. With support for 2.5" and 3.5" HDDs, it offers versatile storage options. Dimensions: 240 mm (W) x 604 mm (D) x 566 mm (H). Its sleek black design enhances any setup while providing excellent functionality.

Warranty: 2 Years

SKU: 3091384

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Fractal Design Define 7 XL is a full-size PC case built for large custom systems, offering extensive modularity and flexible layouts. It supports motherboards up to SSI-EEB and E-ATX, provides room for extensive water-cooling with radiator support up to 480 mm in the front or top and 280 mm in the base, and includes multiple drive and fan mounting options for high-capacity builds.

Advantages

The case features an open, dual-layout interior that adapts to massive components and complex cooling configurations, a ventilated PSU shroud with removable cover, and an ultra-slim Nexus+ 2 fan hub that supports up to three PWM and six 3‑pin fans. Storage capacity is extensive with support for up to 18 HDD/SSDs in the Storage Layout plus additional SSD mounts; cable management is simplified by detachable PSU cable shielding, integrated cable guides and Velcro straps. Noise reduction is achieved through sound-damped front, top and side panels, and the top Moduvent panel can be swapped between solid, sound-dampened steel and a filtered ventilation option. Front I/O includes USB 3.1 Gen 2 Type-C with charging support and up to 10 Gbps transfer speeds.

Suitable for

High-end gaming or workstation builds with E-ATX / SSI-EEB motherboards
Custom liquid-cooling systems with large radiators (up to 480 mm)
Systems requiring extensive storage (multiple 3.5" and 2.5" drives)
Quiet PC builds prioritizing acoustic damping

Key specifications

Form factor: Midi/Full tower supporting SSI-EEB, E-ATX, ATX, Micro-ATX, Mini-ITX
Drive bays: up to 18 HDD/SSD in Storage Layout; two convertible 5.25" bays
Fan mounts: up to 9×140 mm or 11×120 mm; three Dynamic X2 GP-14 fans preinstalled
Radiator support: up to 480 mm (front/top) and 280 mm (base)
Front I/O: USB 3.1 Gen 2 Type-C (up to 10 Gbps) plus USB 3.2/USB 2.0 ports
Material: Steel; Colour: Black; Weight: 16.64 kg

How to use

Install the motherboard using the included standoffs and select the preferred interior layout (Open or Storage) depending on whether you prioritise radiator space or maximum drive capacity. Fit radiators and fans into the supported front, top or base positions, using the Nexus+ 2 hub to connect PWM and 3‑pin fans. Mount drives in the removable trays or Multibrackets and route cables through the 13 pass-through holes with rubber grommets; secure cables with the integrated guides and Velcro straps. Swap the top Moduvent panel between solid and ventilated modes as required for airflow versus noise control.

Usage recommendations

For optimal noise and cooling balance, configure the case with the sound-damped top panel and a front intake fan setup, or switch to the ventilated top panel when prioritising maximum radiator airflow. Use the Multibracket to convert unused fan positions into pump or drive mounts to tailor the interior to your build needs.

Specifications

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 2
Power supply included: There is a power supply with this product.: No
Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.: 2
Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.: 8
Type: Characteristics of the device.: PC
Form factor: The shape or design of the product.: Midi Tower
Supported HDD sizes: The size of the hard disk drives which can be used by the device.: 2.5, 3.5
Supported motherboard form factors: Design of the supported motherboards.: SSI EEB, SSI CEB, Mini-ITX, Micro ATX, EATX, ATX
Product colour: The colour e.g. red, blue, green, black, white.: Black

All features

Other features

Volume: The amount of a substance contained.: 77.6 L

Logistics data

Harmonized System (HS) code:: 84733080

Packaging data

Package weight: Weight of the packaged product.: 18840 g
Package height: The distance from the top to the bottom of the packaging.: 708 mm
Package depth: The distance from the front to the back of the packaging.: 646 mm
Package width: The distance from one side of the packaging to the other.: 357 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 16.64 kg
Height: The measurement of the product from head to foot or from base to top.: 566 mm
Depth: The distance from the front to the back of something.: 604 mm
Width: The measurement or extent of something from side to side.: 240 mm

Storage

Supported HDD sizes: The size of the hard disk drives which can be used by the device.: 2.5, 3.5

Cooling

Top radiator sizes supported:: 480, 420
Top radiator installed:: No
Rear radiator fan size installed:: 120
Rear radiator type:: Single radiator
Bottom radiator sizes supported:: 280, 240
Rear radiator installed:: Yes
Front radiator sizes supported:: 480, 420
Front radiator installed:: No
Bottom fans diameters supported:: 140, 120
Number of bottom fans supported (max):: 2
Top fans diameters supported:: 120, 140
Number of top fans supported (max):: 4
Rear fans diameters supported:: 120, 140
Number of rear fans supported (max):: 1
Front fans diameters supported:: 120, 140
Number of front fans supported (max):: 4

Ports & interfaces

Audio output: The type of audio output that the device produces, and the connector(s).: Yes
Audio input: The type of audio input that the device requires, and the connection needed.: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:: 2
USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 2

Power supply

Supported power supply form factors:: ATX
Number of power supply units:: 1
Power supply location: Where the power supply is positioned.: Bottom
Power supply included: There is a power supply with this product.: No

Design

Maximum PSU length:: 250 mm
Maximum graphics card length:: 549 mm
Maximum CPU cooler height:: 185 mm
Cable management: Description of improved cable management: Yes
Anti-dust filter:: Yes
Illumination: The device has illumination.: No
Side window: A side window is a transparent side (or part of side) in a housing which enables you to see the internal space of the device.: No
Number of expansion slots:: 12
Number of internal 3.5" bays:: 8
Number of 2.5" bays:: 8
Number of 5.25" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 5.25" drive bay, also known as full-height bays, were found in old PCs in the early to mid-1980s. They were 3¼″ high by 5¾″ wide, and up to 8″ deep (83 × 146 × 200 mm), used mainly for hard disks and floppy disk drives.: 2
Number of 3.5" bays: A drive bay is a standard-area for adding hardware to a computer. Most drive bays are fixed to the inside of a case, but some can be removed. A 3.5" drive bay is for floppy disks.: 8
Supported motherboard form factors: Design of the supported motherboards.: SSI EEB, SSI CEB, Mini-ITX, Micro ATX, EATX, ATX
Product colour: The colour e.g. red, blue, green, black, white.: Black
Material: The material from which a thing is or can be made e.g. wood, plastic.: Steel
Type: Characteristics of the device.: PC
Form factor: The shape or design of the product.: Midi Tower

Hide Show all

Instructions

mmo_74483469_1582486714_7449_973.pdf

fractal-design-FD-C-DEF7X-01-3091384.pdf

Description

Instructions

mmo_74483469_1582486714_7449_973.pdf

fractal-design-FD-C-DEF7X-01-3091384.pdf

Machine translation. Load original

Reasons to buy

USB Type-C

USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps USB Type-C

SSI-EEB

Easily holds your SSI-EEB motherboard SSI-EEB

Moduvent

Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation Moduvent

{{product.title}} Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All Fractal Design products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized Fractal Design service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity, usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity, usb 2.0 ports quantity, power supply included, number of 5.25" bays, number of 3.5" bays, type, form factor, supported hdd sizes, supported motherboard form factors, product colour, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for PC Case Fractal Design Define 7 XL?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
