header-product Power supply unit FSP ADVAN GM 1000W 20+4 pin ATX 80 PLUS Gold, 1000 W, black, 120 mm fan
122.99 €

Power supply unit FSP ADVAN GM 1000W 20+4 pin ATX 80 PLUS Gold, 1000 W, black, 120 mm fan

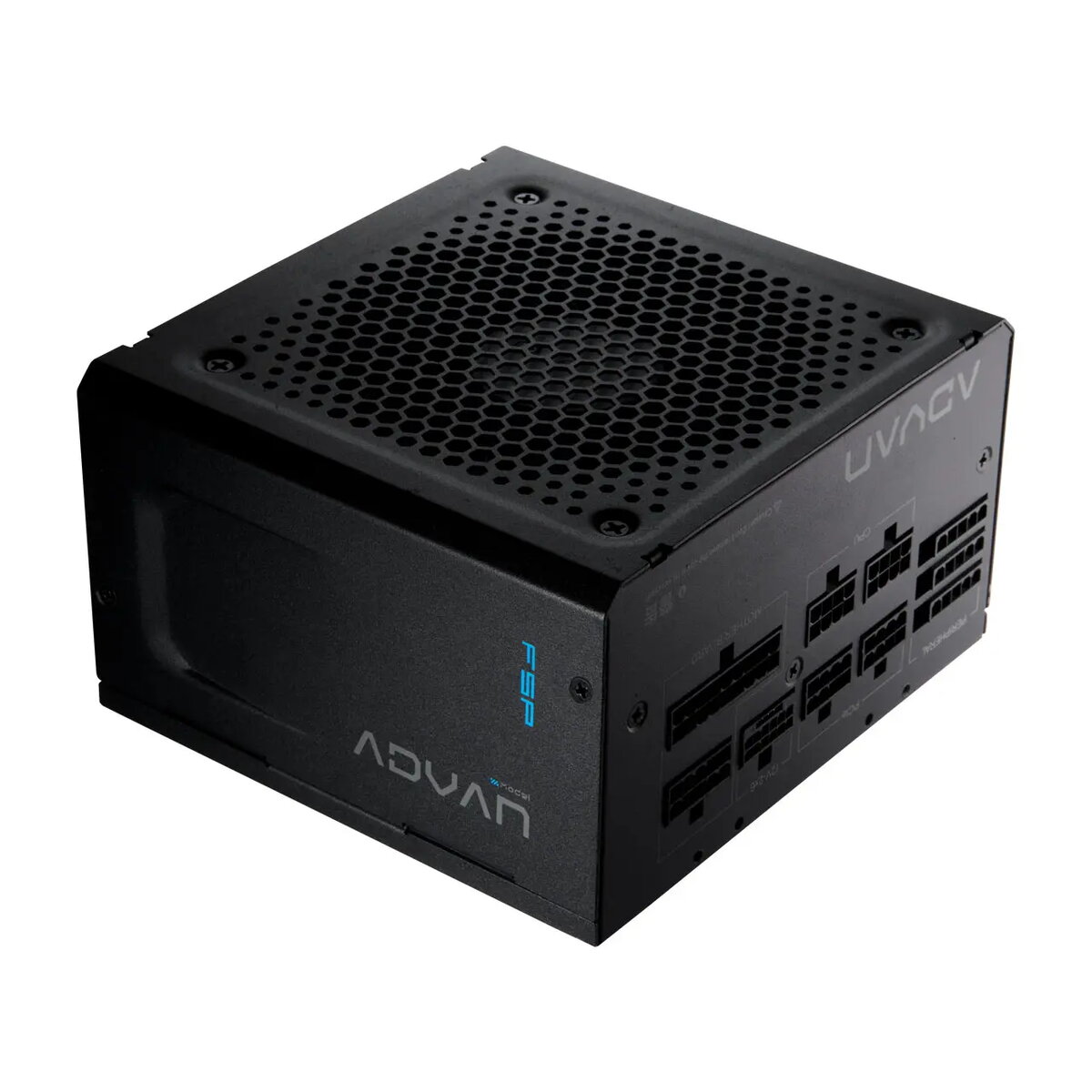

FSP ADVAN GM 1000W power supply unit Photo 1

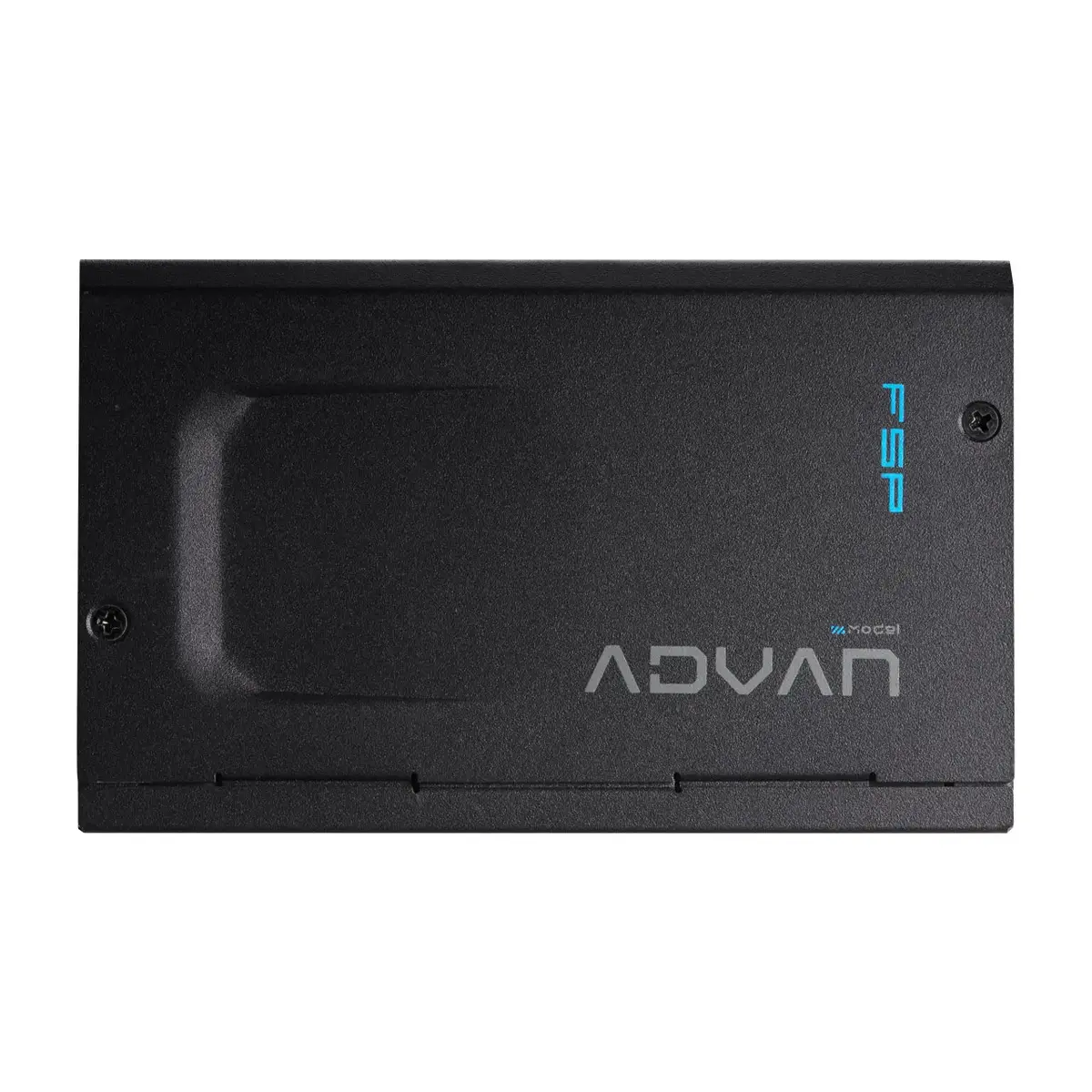

FSP ADVAN GM 1000W power supply unit Photo 2

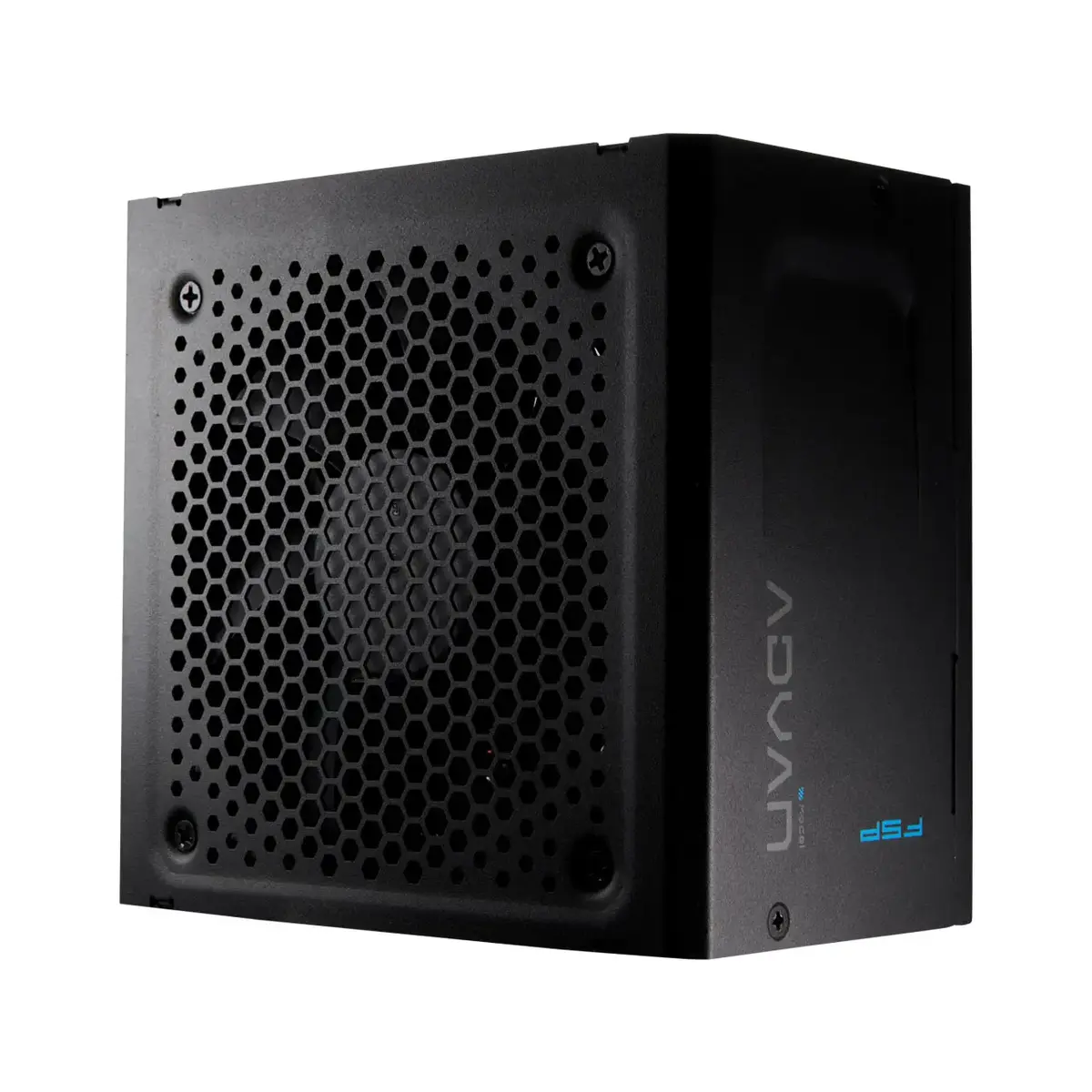

FSP ADVAN GM 1000W power supply unit Photo 3

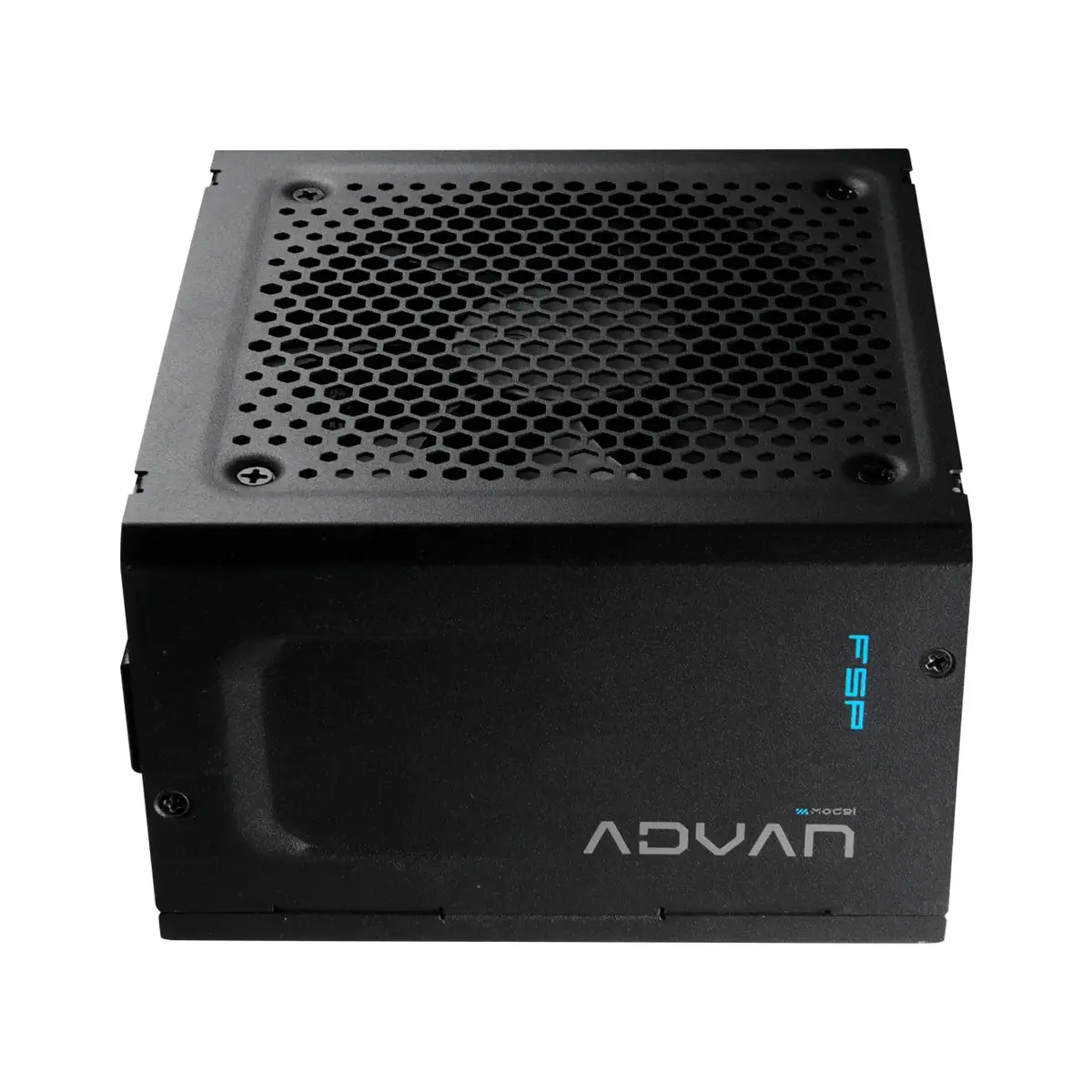

FSP ADVAN GM 1000W power supply unit Photo 4

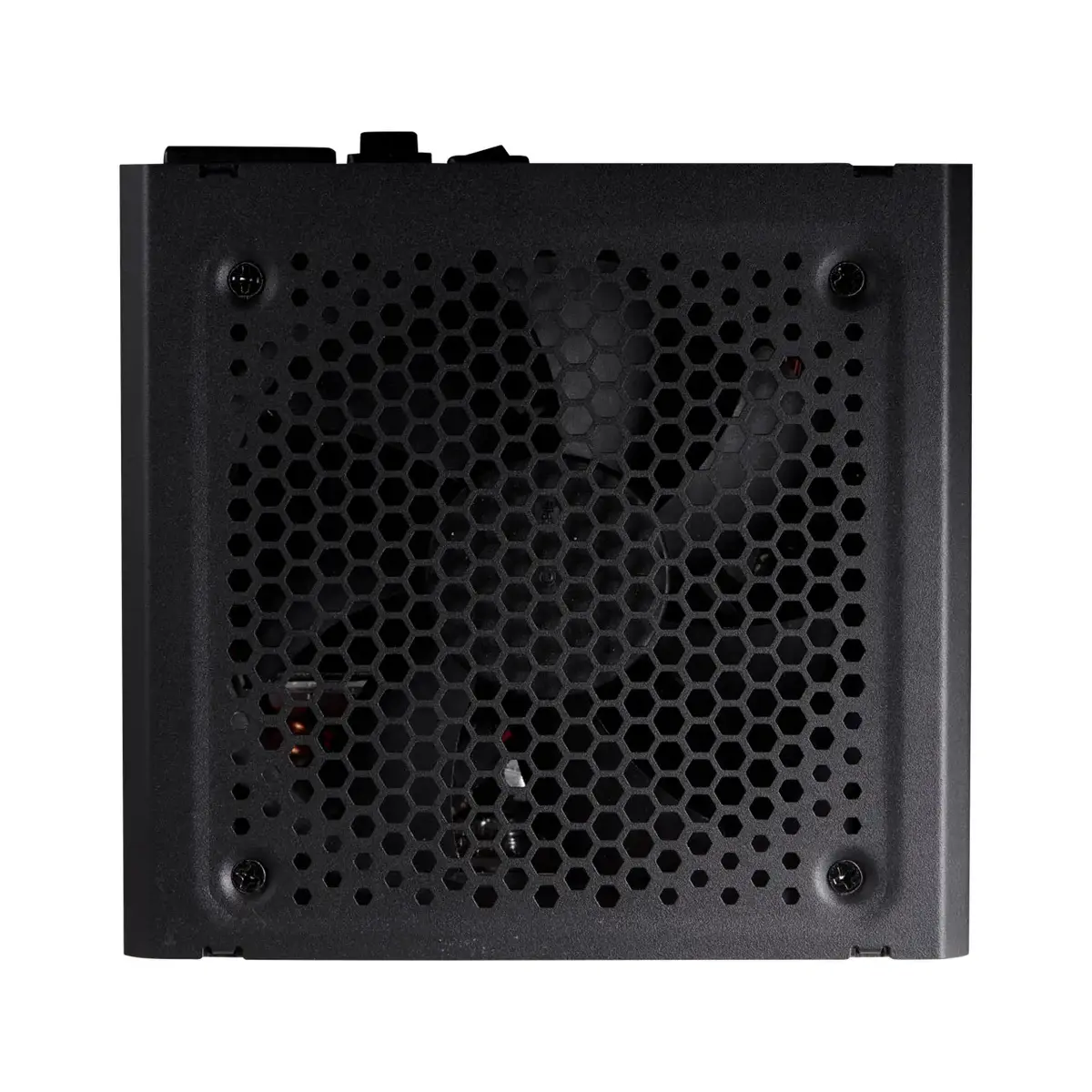

FSP ADVAN GM 1000W power supply unit Photo 5

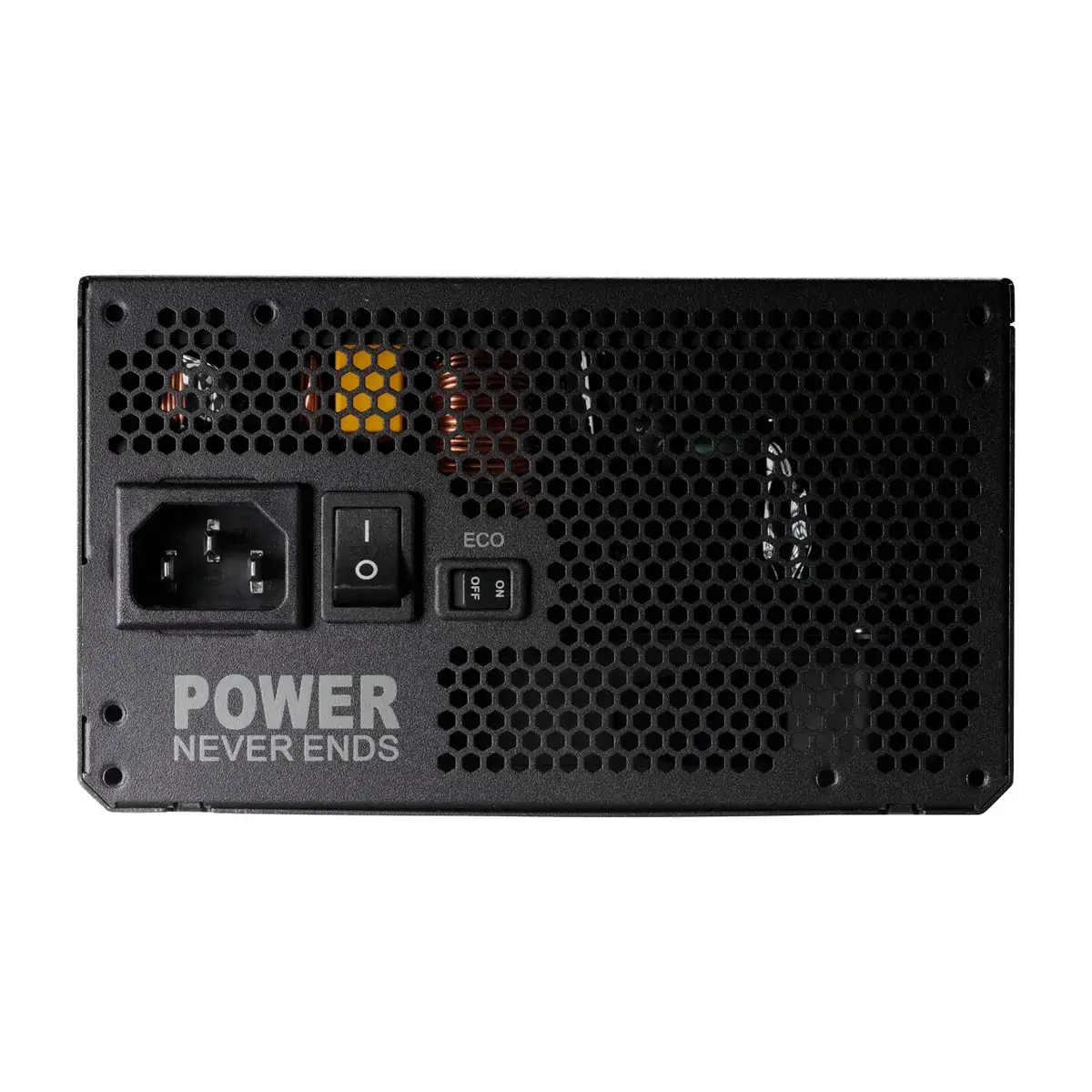

FSP ADVAN GM 1000W power supply unit Photo 6
FSP ADVAN GM 1000W power supply unit Photo 1
FSP ADVAN GM 1000W power supply unit Photo 2
FSP ADVAN GM 1000W power supply unit Photo 3
FSP ADVAN GM 1000W power supply unit Photo 4
FSP ADVAN GM 1000W power supply unit Photo 5
FSP ADVAN GM 1000W power supply unit Photo 6
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Power supply unit FSP ADVAN GM 1000W 20+4 pin ATX 80 PLUS Gold, 1000 W, black, 120 mm fan

{{email}}
You keep track of price changes

Power supply unit FSP ADVAN GM 1000W 20+4 pin ATX 80 PLUS Gold, 1000 W, black, 120 mm fan

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

ATX power supply unit FSP ADVAN GM 1000W delivering up to 1000 W total power with 80 PLUS Gold efficiency. Works from 100–240 V AC with 6 A input current. Features a 20+4 pin ATX motherboard connector, 60 cm motherboard cable and 70 cm PCIe cable. Active cooling with a 120 mm fan, compact ATX dimensions (150 × 140 × 86 mm). Designed for desktop PCs requiring reliable, high-power PSU.
Available at price 122.99 €: 300 pcs.
Total available for order: 305 pcs.
Warranty: 2 Years
SKU: 11346369
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.99 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
02.10.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
07.10.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 €
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / DPD Paku skapis / Omniva LV / Latvijas Pasts pakomāts / Latvijas Pasts nodaļa
07.10.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.99 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 41 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 3.42 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

ADVAN GM series power supply complies with the Intel® Power Design Guide ATX 3.1 and supports the new PCIe 12V-2x6 connector. The unit features LLC resonant-converter topology with synchronous rectifier, gold-level efficiency certification and a fully modular cabling design. A 120 mm hydraulic bearing fan and an ECO semi-fanless switch allow quiet operation at low loads, while a single high-amperage +12V rail, +5V/3.3V DC-to-DC design and 105°C Japanese bulk capacitors ensure stable power delivery and long-term reliability.

Advantages

The power supply offers high conversion efficiency (80 PLUS® Gold), reduced switching losses from the LLC resonant topology, and regulated voltages under varying loads. Fully modular cables and improved black embossed leads simplify installation and improve case airflow. The ECO switch enables zero-RPM operation below approximately 40% load for quieter systems. A robust single +12V rail and dual PCIe 6+2Pin plus 12V-2x6 connectors support demanding GPUs and high-performance CPUs.

Key specifications

  • Certification: 80 PLUS® Gold
  • Typical efficiency: ≥ 90%
  • Output power: 1000 W
  • Input voltage: 100–240 V
  • Form factor / Standard: ATX 3.1 compatible
  • Motherboard connector: 20+4 pin ATX
  • PCIe power: Dual 6+2 pin cables and 12V-2x6 connector
  • Topology: LLC resonant converter with synchronous rectifier
  • +5V & 3.3V: DC-to-DC circuit design
  • Fan: 120 mm hydraulic bearing (HYB) with ECO semi-fanless switch
  • Capacitors: 105°C Japanese bulk capacitor
  • Protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
  • Color: Black

How to use

Install the PSU into a compatible ATX case and connect the 20+4 pin ATX cable to the motherboard. Attach the dual 6+2 pin PCIe and the 12V-2x6 connector to graphics cards as required by the GPU manufacturer. Use only the modular cables needed for your build to maintain optimal airflow. If quieter operation is desired at low load, enable the ECO semi-fanless switch so the fan stops when load is below the semi-fanless threshold; ensure adequate ventilation when the fan is idle. Verify all connectors are firmly seated before powering the system.

Рекомендации

Use this PSU in systems with compatible ATX 3.1 motherboards and high-performance GPUs that require dual 6+2 pin or 12V-2x6 power. Keep dust levels low and provide sufficient case airflow for sustained heavy workloads, and follow the GPU and motherboard manufacturer guidelines for power cabling and connector usage.

Specifications

80 PLUS certification:
80 PLUS Gold
Power supply unit (PSU) form factor:
ATX
Purpose: What the product is used for.
PC
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.
4
Motherboard power connector: The way in which the motherboard is connected to the power supply.
20+4 pin ATX
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240
Total power: The total power that is needed by the device, or the total power produced by the device.
1000 W
All features

Weight & dimensions

Height: The measurement of the product from head to foot or from base to top.
86 mm
Depth: The distance from the front to the back of something.
140 mm
Width: The measurement or extent of something from side to side.
150 mm

Design

On/off switch: The button which is pressed to switch the device on or off.
Yes
Number of fans: The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
Fan diameter: The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan.
120 mm
Cooling type: The method used to cool the device or to cool the air around the device.
Active
Product colour: The colour e.g. red, blue, green, black, white.
Black

Performance

Bearing technology:
HYB
ATX version: ATX (Advanced Technology eXtended) is a motherboard form factor specification developed by Intel in 1995. The specification defines the key mechanical dimensions, mounting point, I/O panel, power and connector interfaces between a computer case, a motherboard and a power supply. There are many versions of ATX including ATX12V 1.x and ATX12V v2.3.
3.1
80 PLUS certification:
80 PLUS Gold
Power supply unit (PSU) form factor:
ATX
Purpose: What the product is used for.
PC

Ports & interfaces

Cabling type:
Fully-Modular
CPU power cable length:
700 mm
CPU power connector (4+4 pin):
Yes
PCI Express power cable length:
700 mm
PCI Express power connectors (12-pin):
1
PCI Express power connectors (6+2 pin):
2
Peripheral (Molex) power connectors (4-pin): White 4-pinned connector used to connect a peripheral to the power supply.
4
Number of SATA power connectors:
4
Motherboard power cable length:
600 mm
Motherboard power connector: The way in which the motherboard is connected to the power supply.
20+4 pin ATX

Power

Power protection features: Features that protect the device against power problems e.g. overload.
Over current, Under voltage, Surge & inrush protection (SIP), Short circuit, Over voltage, Over power, No load operation
Efficiency:
90 %
Max output current (+5Vsb):
3 A
Max output current (-12V):
0.3 A
Max output current (+5V):
20 A
Max output current (+12V):
83.33 A
Max output current (+3.3V):
20 A
Combined power (+5Vsb):
15 W
Combined power (-12V):
3.6 W
Combined power (+5V):
100 W
Combined power (+12V):
1000 W
Combined power (+3.3V):
100 W
Power Factor Correction (PFC) type:
Active
Power factor:
0.9
Input current:
6
AC input voltage: The voltage of the AC electricity that is inputted into the product.
100 - 240
Total power: The total power that is needed by the device, or the total power produced by the device.
1000 W
