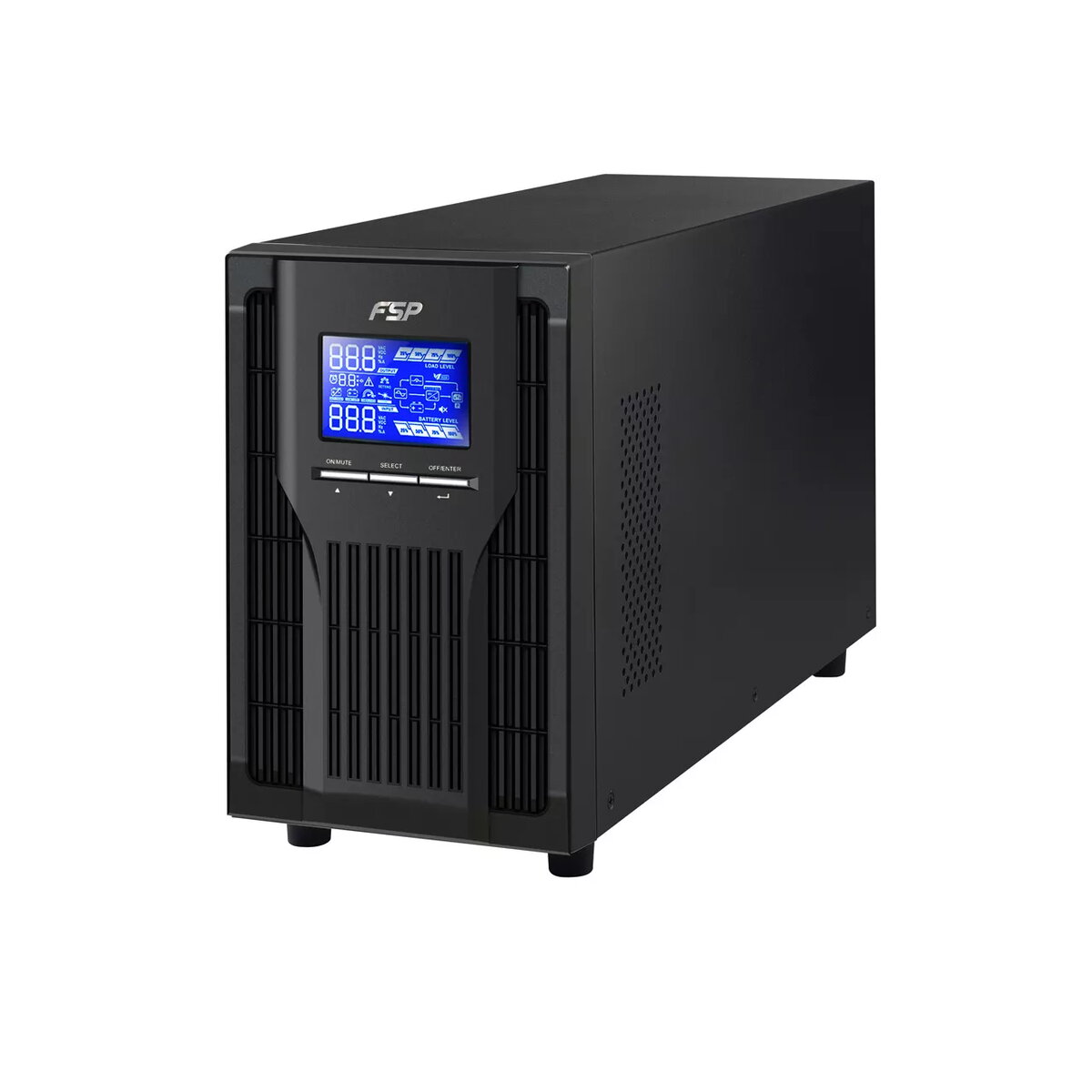

Uninterruptible Power Supply FSP Champ Tower 1K

Name: Uninterruptible Power Supply FSP Champ PPF8001305
Brand: fsp/fortron
SKU: 3477519
Price: 204.99 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Short description

The FSP Champ Tower 1K is a double-conversion online UPS with a capacity of 1 kVA and 900 W. It features a 9 Ah battery with a 12 V voltage, providing a backup time of 3.2 minutes at full load. The UPS includes USB Type-B and RS-232 interfaces for connectivity. With a compact tower form factor and a sleek black design, it measures 145 mm in width, 282 mm in depth, and 220 mm in height. Control is simple with button operation.

Warranty: 2 Years

SKU: 3477519

Manufacturer: fsp/fortron

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The FSP Champ Tower 1K is an online double-conversion uninterruptible power supply providing 1 kVA (900 W) of output power in a compact tower enclosure. Designed for continuous protection of sensitive electronics, it uses a 12 V, 9 Ah internal battery to deliver short-term backup power and clean, regulated output. The UPS features a microprocessor controller, USB Type-B and RS-232 communication ports, a built-in intelligent slot for optional adapters and cards, and a straightforward button-based control interface. Its black, space-saving tower design measures 145 mm (W) × 282 mm (D) × 220 mm (H) and weighs 9.8 kg, making it suitable for small server closets, workstations, or network equipment cabinets where full online protection is required.

Advantages

The double-conversion topology continuously isolates load equipment from mains disturbances, providing consistent sine wave output and tight voltage regulation. A high output power factor of 0.9 increases usable power for connected devices relative to apparent power. Built-in USB Type-B and RS-232 ports enable monitoring and graceful shutdown through common management software. The intelligent expansion slot allows adding communication or dry-contact modules without replacing the UPS, while the compact tower form factor conserves rack and desk space.

Suitable for (tasks / use cases)

Small servers and network switches requiring continuous online power conditioning
Workstations and point-of-sale terminals that need clean, regulated power and controlled shutdown
Telecom and network edge devices in small offices or branch locations
Home labs or small data closets where footprint and reliable battery backup matter

Key specifications

Output power capacity: 1 kVA
Output power: 900 W
Topology: Double-conversion (online) UPS
Battery type and rating: 12 V, 9 Ah internal battery
Estimated backup time at full load: approximately 3.2 minutes
Communication interfaces: USB Type-B and RS-232
Expansion: Built-in intelligent slot for optional adapters and cards
Control: Button operation with microprocessor controller
Form factor and colour: Compact tower, black
Dimensions (W×D×H): 145 × 282 × 220 mm
Weight: 9.8 kg

How to use

Place the UPS on a stable, flat surface with adequate ventilation and connect the input to a properly grounded mains outlet. Attach critical equipment to the UPS output sockets and, if required, connect the USB Type-B or RS-232 port to a management computer for monitoring and automatic shutdown configuration. Use the front-panel buttons to power the unit on and off and to access basic status indicators. Periodically check battery status through the management interface or front panel indicators, and allow the battery to charge fully after initial installation before relying on the unit for extended backup.

Usage recommendations

For reliable operation, install the UPS in a dry, dust-free environment with ambient temperature within the manufacturer’s recommended range. Do not overload the unit beyond its 900 W output rating; plan for margin to extend battery runtime and reduce stress on internal components. Test the shutdown sequence with connected equipment via the communication interface to ensure graceful closure of applications and data integrity during a power event.

Specifications

USB 2.0 ports quantity:: 1
Weight:: 9.8 kg
Output power capacity:: 1 kVA
Output power:: 900 W
Product colour:: Black

All features

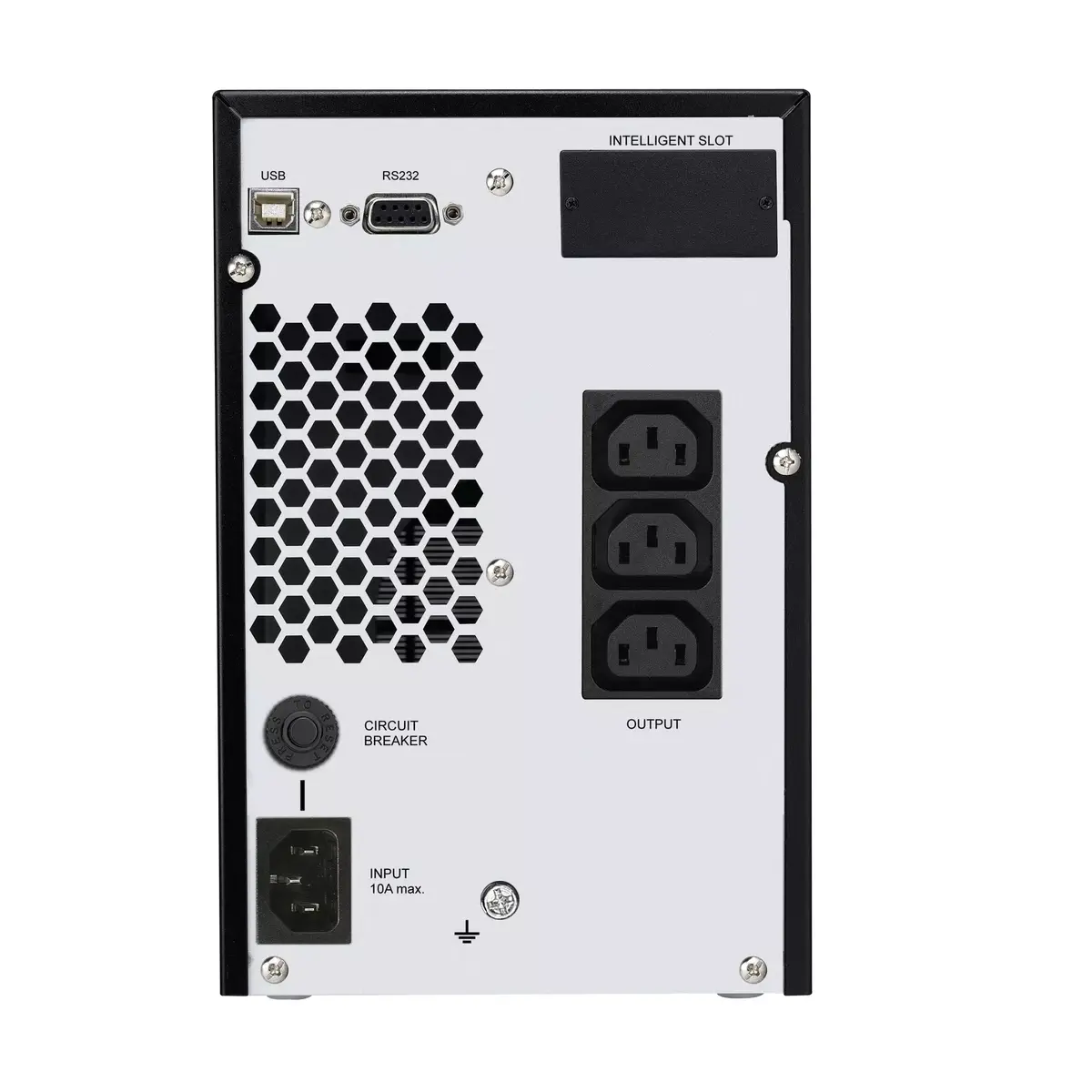

Ports & interfaces

USB 2.0 ports quantity:: 1
Serial interface type:: RS-232
RS-232 ports:: 1
Number of output IEC jumpers:: 3
Serial interface:: Yes
USB port:: Yes
USB port type:: USB Type-B

Battery

Number of battery cells:: 2
Typical backup time at half load:: 8.9 min
Typical backup time at full load:: 3.2 min
Battery voltage:: 12 V
Battery capacity:: 9 Ah
Battery recharge time(90%):: 4 h

Design

Product colour:: Black
Form factor:: Tower
LED indicators:: Y
Control type:: Buttons
Display type:: LCD

Weight & dimensions

Weight:: 9.8 kg
Height:: 220 mm
Width:: 145 mm
Depth:: 282 mm

Operational conditions

Operating relative humidity (H-H):: 20 - 90
Operating temperature (T-T):: 0 - 40

Packaging content

Cables included:: USB cable, Input power cable
Manual:: Yes
Batteries included:: Yes

Other features

Number of phases:: 1
Packaging content:: UPS, Power cable, USB cable, Software on CD, User manual

Features

Audible alarm(s):: Yes
Output power capacity:: 1 kVA
Noise level: Not only energy saving helps to protect the environment but also noise level reduction. Noise level reduction up to 3 dB really means noise level reduction in 2 times. For example, a device with noise level 39 dB (А) will be two times quieter than a devise with a noise level 42 dB (А). Energy-saving certificate that shows noise level plays the role of an additional objective indicator basing on which You can successfully choose a product.: 50 dB
Input frequency:: 40 - 70
Output power:: 900 W
Power factor:: 0.99
Crest factor:: 3:1
Input operation voltage (max):: 300 V
Input operation voltage (min):: 120 V
Output operation voltage (min):: 200 V
Output operation voltage (max):: 240 V
Output frequency:: 47/63
Waveform:: Sine
Output voltage regulation:: 1
UPS topology:: Double-conversion (Online)
Audible alarm modes:: Overload alarm, Low battery alarm, Fault, Alarm when on battery
Total Harmonic Distortion (THD) (linear load):: 3 %
Total Harmonic Distortion (THD) (non-linear load):: 6 %

Logistics data

Harmonized System (HS) code:: 85078000

Packaging data

Software CD:: Yes
