header-product Motherboard FUJITSU D3236-S GS3 Intel Q87 ATX LGA 1150, 4x DIMM, DDR3, max 32 GB, PCIe 3.0 x16, Micro SATA, RAID
276.49 €

Motherboard FUJITSU D3236-S GS3 Intel Q87 ATX LGA 1150, 4x DIMM, DDR3, max 32 GB, PCIe 3.0 x16, Micro SATA, RAID

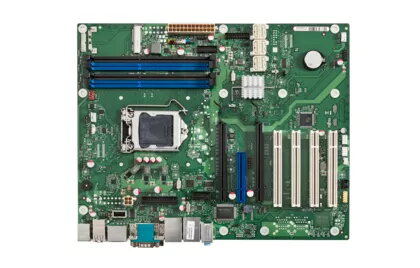

FUJITSU D3236-S GS3 motherboard Intel Q87 LGA1150 Photo 1
FUJITSU D3236-S GS3 motherboard Intel Q87 LGA1150 Photo 2
FUJITSU D3236-S GS3 motherboard Intel Q87 LGA1150 Photo 1
FUJITSU D3236-S GS3 motherboard Intel Q87 LGA1150 Photo 2
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard FUJITSU D3236-S GS3 Intel Q87 ATX LGA 1150, 4x DIMM, DDR3, max 32 GB, PCIe 3.0 x16, Micro SATA, RAID

{{email}}
You keep track of price changes

Motherboard FUJITSU D3236-S GS3 Intel Q87 ATX LGA 1150, 4x DIMM, DDR3, max 32 GB, PCIe 3.0 x16, Micro SATA, RAID

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

FUJITSU D3236-S GS3 is an ATX desktop motherboard with Intel® Q87 chipset and LGA 1150 (Socket H3) for Intel Celeron® and Pentium® processors. It features four DIMM slots supporting DDR3 up to 32 GB, one PCI Express 3.0 x16 slot for discrete graphics, Micro SATA/SATA III storage with RAID 0/1/5/10 support, and integrated Gigabit Ethernet (Intel® I210-AT / I217LM). Suitable for office and business PC builds and workstation upgrades.
Available at price 276.49 €: 24 pcs.
Total available for order: 48 pcs.
Warranty: 2 Years
SKU: 458848
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.69 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 92.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 7.68 euros per month
Price for companies: 228.50€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

FUJITSU D3236-S GS3 is an ATX desktop/mainboard built on the Intel® Q87 chipset and LGA 1150 (Socket H3). It supports 4th generation Intel processors compatible with LGA 1150, four DIMM slots for DDR3 memory up to 32 GB, and a PCI Express 3.0 x16 slot for discrete graphics. Storage interfaces include Micro SATA / SATA III with hardware RAID support for 0, 1, 5 and 10. Integrated Gigabit Ethernet controllers provide reliable network connectivity and the board is designed for continuous operation and industrial-grade thermal management.

Advantages

The motherboard combines an industry-grade design with mainstream desktop features: support for DDR3 memory up to 32 GB across four DIMM slots, a PCIe 3.0 x16 slot for expansion, and Micro SATA/SATA III storage with RAID 0/1/5/10 capability. Dual integrated Gigabit Ethernet controllers enable stable wired networking and remote manageability. The board is manufactured to high quality standards and is suited for extended continuous operation with enhanced thermal management and system monitoring features.

Suitable for

  • Office and business desktop PCs
  • Workstation upgrades requiring PCIe graphics
  • Systems needing hardware RAID for data redundancy or performance
  • 24/7 operation in industrial or commercial environments

Key specifications

  • Form factor: ATX
  • Chipset: Intel® Q87
  • Processor socket: LGA 1150 (Socket H3)
  • Memory: 4 x DIMM slots, DDR3-SDRAM, up to 32 GB
  • Expansion: 1 x PCI Express 3.0 x16 slot
  • Storage: Micro SATA / SATA III interfaces with RAID 0/1/5/10 support
  • Networking: Integrated Gigabit Ethernet controllers
  • Designed for continuous operation with enhanced thermal management and system monitoring

How to use

Install the motherboard into an ATX-compatible chassis and fit a compatible LGA 1150 CPU according to the processor manufacturer’s installation instructions. Populate DDR3 DIMM modules across the four memory slots following the motherboard manual for recommended channel configurations and maximum supported capacity. Connect storage devices to the Micro SATA / SATA III ports and configure RAID arrays via the onboard RAID controller or BIOS utility if redundancy or performance arrays are required. Install a PCIe 3.0 x16 graphics card in the dedicated slot when discrete graphics are needed. Attach power, front-panel connectors and network cabling, then update BIOS/firmware and drivers as supplied by Fujitsu or system integrator to ensure full functionality and manageability.

Usage recommendations

Use matched DDR3 memory modules of the same capacity and speed for optimal stability, configure RAID arrays after backing up data, and ensure adequate chassis airflow when operating under continuous or elevated temperature conditions. For remote management and network reliability, use quality Ethernet cabling and keep firmware and management tools up to date.

Specifications

Motherboard form factor:
ATX
Motherboard chipset:
Intel® Q87
Processor socket:
LGA 1150 (Socket H3)
Number of memory slots:
4
Maximum internal memory:
32 GB
PCI Express x16 (Gen 3.x) slots:
1
Supported memory types:
DDR3-SDRAM
All features

Features

Motherboard form factor:
ATX
Motherboard chipset:
Intel® Q87
Audio output channels:
5.1
Windows operating systems supported:
Y
Motherboard chipset family:
Intel
Power source type:
ATX

Processor

Processor manufacturer:
Intel
Compatible processor series:
Intel Celeron, Intel Pentium
Processor socket:
LGA 1150 (Socket H3)
Intel Core i3/i5/i7/i9 series:
i3-4xxx, i5-4xxx, i7-4xxx

Memory

Number of memory slots:
4
Maximum internal memory:
32 GB
Supported memory types:
DDR3-SDRAM
Supported memory clock speeds:
1600, 1333
Memory voltage:
1.5
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM

Expansion slots

PCI slots:
4
PCI Express x8 (Gen 2.x) slots:
1
PCI Express x16 (Gen 2.x) slots:
1
PCI Express x16 (Gen 3.x) slots:
1

Graphics

Graphics card:
HD Graphics
DirectX version:
11.1

Network

Ethernet LAN:
Yes
Wake-on-LAN ready:
Yes
LAN controller:
Intel I217LM, Intel I210-AT
Ethernet interface type:
Gigabit Ethernet

Internal I/O

USB 2.0 connectors:
3
S/PDIF out connector:
No
CPU fan connector:
Yes
Number of Parallel ATA connectors:
0
Front panel audio connector:
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of SATA III connectors:
6
Number of SATA II connectors:
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
12V power connector:
Yes

Rear panel I/O ports

Parallel ports quantity:
0
Serial ports quantity:
1
PS/2 ports quantity:
2
USB 2.0 ports quantity:
6
Firewire (IEEE 1394) ports:
0
Ethernet LAN (RJ-45) ports:
2
Headphone outputs:
1
Microphone in:
Yes
S/PDIF out port:
No
VGA (D-Sub) ports quantity:
0
eSATA ports quantity:
0
DVI-I ports quantity:
1
DVI-D ports quantity:
0
HDMI ports quantity:
0
DisplayPorts quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 5, 10
Supported storage drive interfaces:
Micro SATA, SATA III, PCI Express 3.0

BIOS

BIOS type:
UEFI AMI

Weight & dimensions

Width:
243.8 mm
Depth:
304.8 mm

Other features

S/PDIF in port:
No
S/PDIF in connector:
Yes
Parallel connector:
Yes
mSATA ports quantity:
1
Audio chip:
Realtek ALC671

Operational conditions

Storage temperature (T-T):
0 - 60
