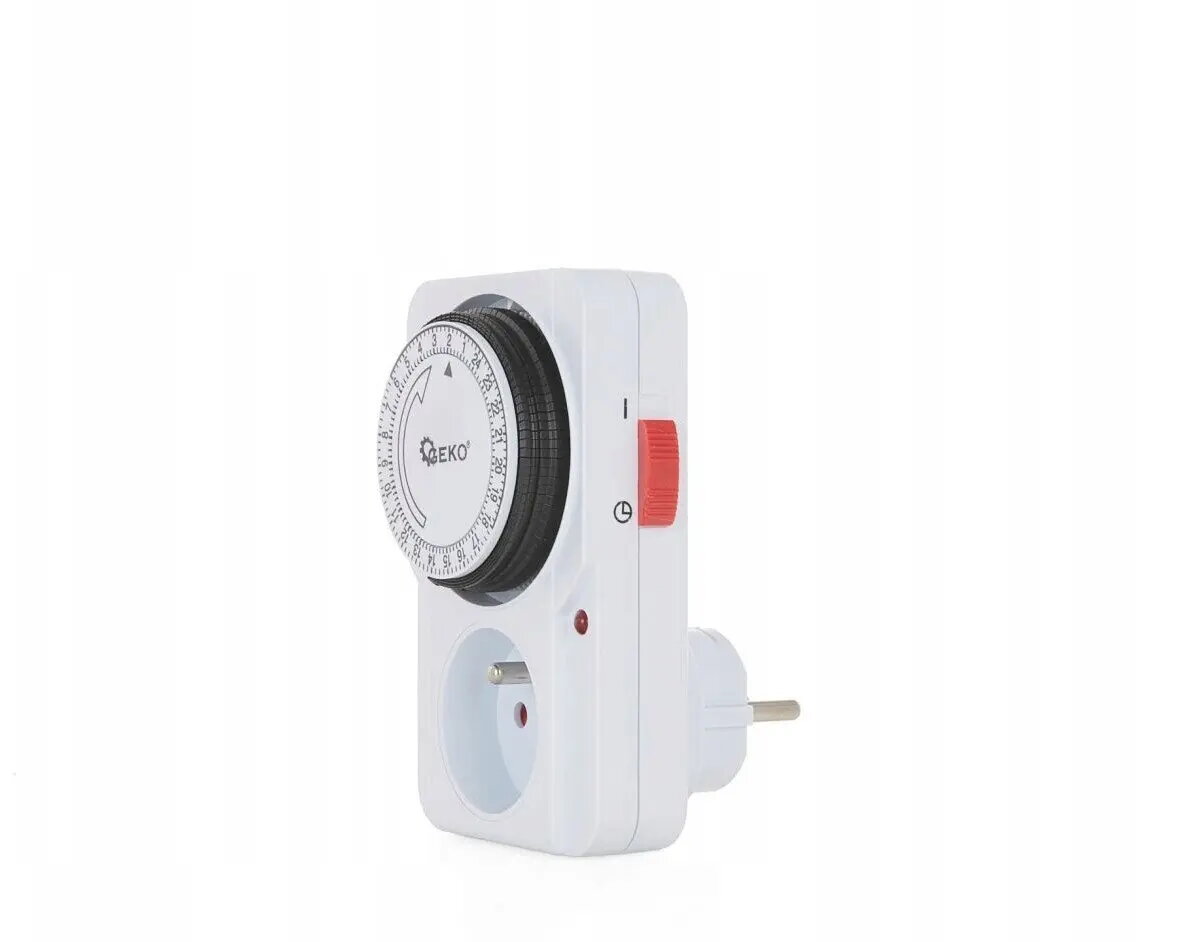

Analog timer switch GEKO model 48 — mechanical 24-hour on/off time programmer

Analog timer switch GEKO model 48 is a mechanical 24-hour on/off time programmer intended for scheduled control of mains-powered devices. The unit uses a rotary dial with selectable segments or pins to set daily on and off intervals. With a straightforward mechanical design, the GEKO model 48 provides a reliable option for repeating daily cycles without the need for programming software or batteries.

Advantages

The mechanical construction ensures operation during mains-powered conditions and allows simple manual setup using the rotary dial and pins. The device supports daily repeating schedules with clear visual indication of set periods and provides a direct switching interface compatible with many household and light commercial electrical loads. Installation and operation are uncomplicated, with no digital interface required, reducing potential electronic failures and making it suitable for basic timed control tasks.

Suitable for

• Automatic switching of indoor and outdoor lighting on a daily schedule
• Control of small heaters or circulation pumps with daily on/off cycles
• Timed operation of ventilation or extractor fans for routine use
• Scheduling of signage, display lights or other appliances that need daily repetition

Key specifications

• Operating principle: mechanical 24-hour rotary dial with pins/segments for on/off setting
• Switching type: single-pole on/off switching suitable for mains circuits
• Cycle: repeats every 24 hours with manual adjustment of segments or pins
• Power supply: mains powered (no battery required for timing)
• Mounting: designed for panel or flush mounting in standard enclosures (verify dimensions before installation)

How to use

Set the current time on the rotary dial by aligning the hour indicator with the present time. Insert or adjust the provided pins or segments on the dial to define on and off intervals across the 24-hour cycle. Once set, connect the device into the mains circuit following electrical safety rules and local regulations; the timer will switch the connected load according to the configured daily pattern. Manual override is typically available via a switch on the unit for temporary bypass of the programmed schedule.

Usage recommendations

For reliable operation, install the timer in a dry, ventilated location protected from direct water exposure. Verify that the connected load does not exceed the switch’s rated current and ensure wiring is carried out by a qualified electrician. Periodically check the pins/segments and the dial to confirm settings have not shifted and adjust seasonally if necessary.
