Hydraulic floor jack GEKO G01051 — low-profile vehicle jack, 4 t lifting capacity

Hydraulic jack GEKO G01051 is a low-profile floor jack designed for lifting vehicles and other loads up to 4000 kg. Its compact dimensions and simple design provide straightforward use and reliable operation for professional and home users in garages, transport companies and industrial workshops.

Advantages

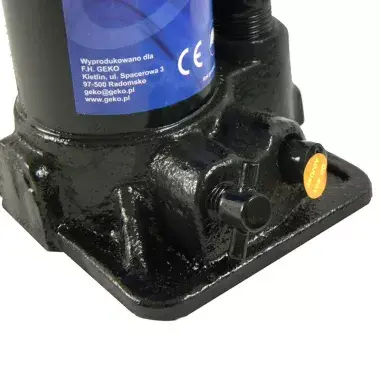

The GEKO G01051 offers a 4-ton maximum lifting capacity and an adjustable lifting range from 178 to 348 mm, with an additional 60 mm height adjustment via a head screw. A 28 mm diameter piston ensures stable lifting action. The jack includes two handles for lifting and lowering, an exhaust valve for controlled descent, and a stable 105 x 95 mm base. CE certification confirms compliance with applicable safety standards.

Suitable for

• Vehicle maintenance and repairs in home or professional garages
• Service and repair of trucks and industrial vehicles
• Transport companies performing routine vehicle servicing

Key specifications

• Manufacturer: GEKO
• Model: G01051
• Maximum lifting capacity: 4000 kg
• Lifting height range: 178–348 mm
• Additional head screw adjustment: +60 mm
• Piston diameter: 28 mm
• Base dimensions: 105 x 95 mm
• Certification: CE

How to use

Place the jack on a firm, level surface and position the saddle under the vehicle lifting point. Use the provided handles to pump the jack until the desired lifting height is reached. For fine adjustment, use the head screw to add up to 60 mm of additional height. To lower the vehicle, open the exhaust valve slowly while keeping clear of the load. Always follow the vehicle manufacturer's recommended lifting points and safety procedures.

Usage recommendations

Use the jack on a flat, stable surface and support the vehicle with certified stands before working under it. Do not exceed the 4000 kg capacity and perform regular inspections of seals, piston and base for wear or damage.
