HDMI video splitter GEMBIRD DSP-4PH4-02 — 4× HDMI outputs, HDMI 1.4, 225 MHz, steel case, 146×73×24 mm

GEMBIRD HDMI video splitter DSP-4PH4-02 Photo 1

GEMBIRD HDMI video splitter DSP-4PH4-02 Photo 2

GEMBIRD HDMI video splitter DSP-4PH4-02 Photo 3

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

GEMBIRD DSP-4PH4-02 is an HDMI video splitter with four HDMI outputs and HDMI 1.4 support. It offers 225 MHz bandwidth, HDCP support and 3D compatibility. Housed in a steel case (146×73×24 mm) and weighing 280 g, it includes an AC adapter and manual. Outputs provide 5 V/1 A power via DC-in jack. Suitable for distributing one HDMI source to multiple displays in home or small commercial setups.

Available at price 20.99 €: 12 pcs.

Total available for order: 14 pcs.

Warranty: 2 Years

SKU: 14291

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

26.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

01.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 0.40 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts nodaļa

01.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

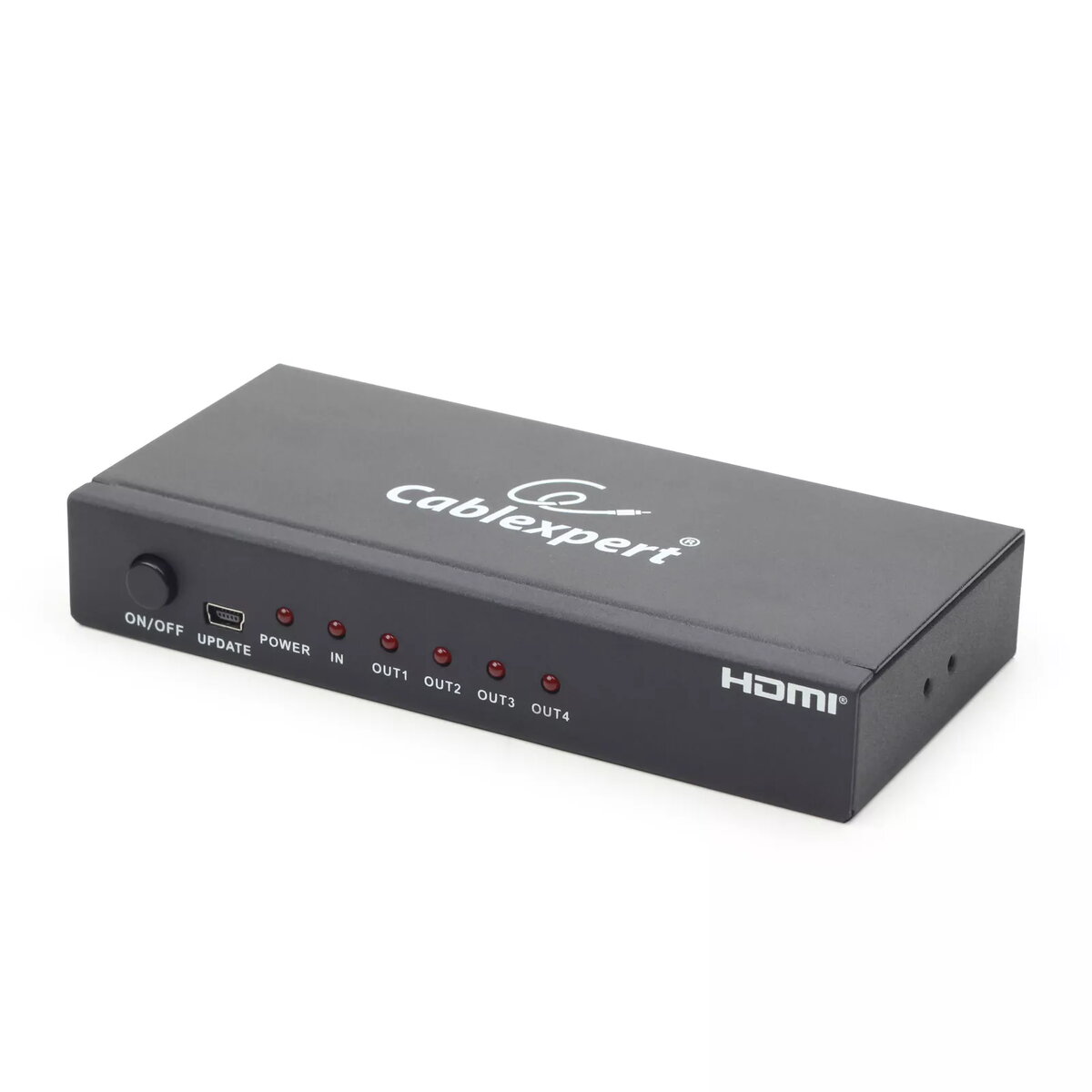

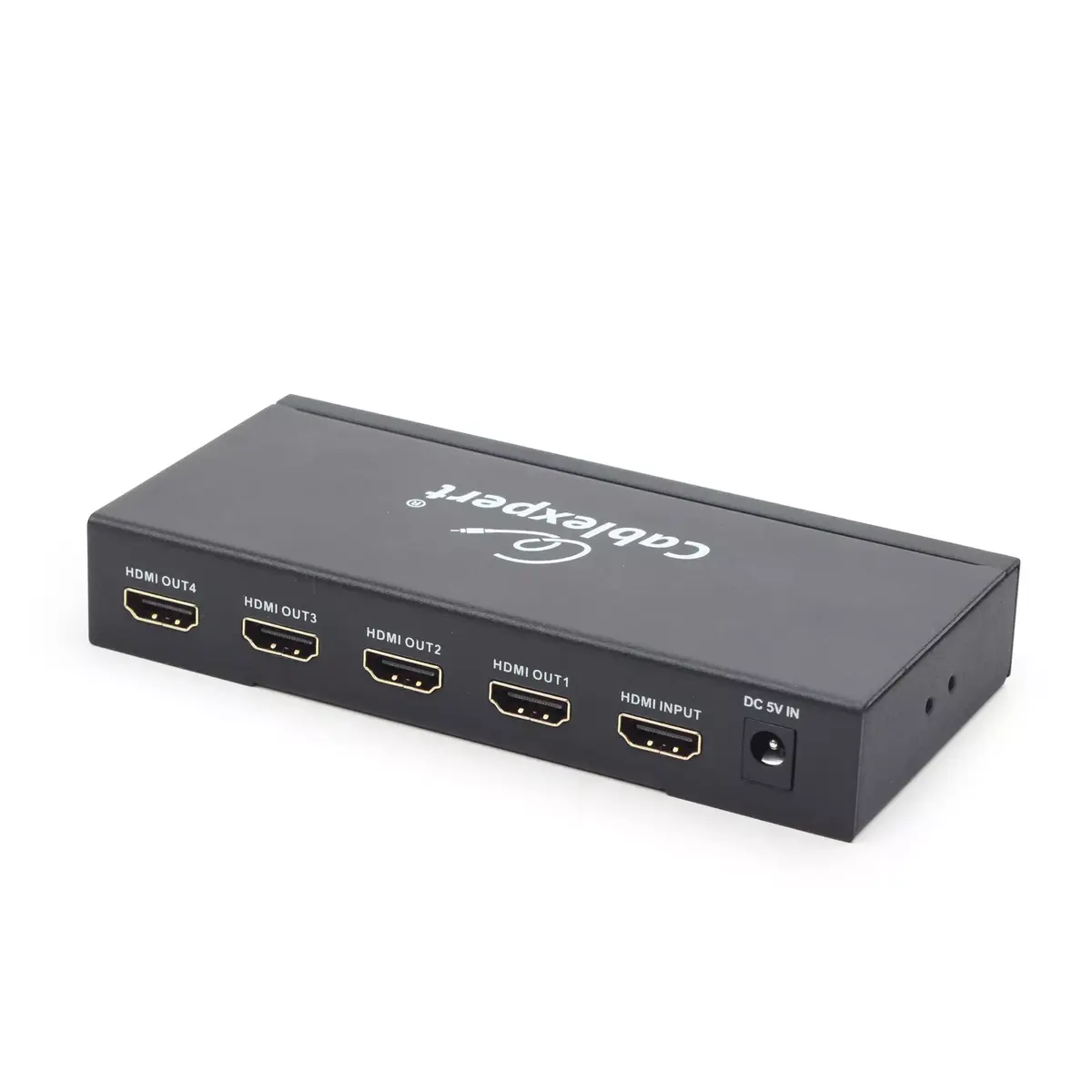

The Gembird DSP-4PH4-02 is an HDMI video splitter that distributes a single HDMI input to up to four HDMI outputs. It supports a bandwidth of 225 MHz and is housed in a durable steel case with a compact footprint (146 x 73 x 24 mm) and a weight of 280 g. The unit is powered with 5 V at 1 A and is designed for straightforward installation in small AV setups.

Advantages

The splitter offers four simultaneous HDMI outputs from one source while maintaining signal integrity across a 225 MHz bandwidth. Its steel construction provides mechanical durability and a compact form factor that fits into limited spaces. Low weight and simple power requirements (5 V, 1 A) make it easy to integrate into desktop or rack environments.

Suitable for

Showing the same HDMI source on multiple displays or TVs
Retail displays and digital signage requiring identical content on several screens
Classroom or meeting-room setups where one source must be visible on multiple monitors

Key specifications

Video port type: HDMI
Number of HDMI outputs: 4
Bandwidth: 225 MHz
Material: Steel housing
Dimensions: 146 x 73 x 24 mm
Weight: 0.28 kg
Power supply: 5 V, 1 A
Colour: Black

How to use

Connect an HDMI source (for example a computer, media player or set-top box) to the splitter's input port, then connect up to four HDMI cables from the splitter outputs to your displays. Connect the included 5 V, 1 A power adapter to the splitter and plug it into a power outlet. Turn on the source and displays; the same video signal will be sent to all connected outputs. No additional software is required.

Usage recommendations

For best performance use high-quality HDMI cables and ensure all connected displays support the resolution and refresh rate provided by your source. Place the splitter in a well-ventilated area and avoid stacking heavy objects on top of the device.

Specifications

Video port type:: HDMI
Video ports quantity:: 4
Weight:: 0.28 kg
Product colour:: Black

All features

Ports & interfaces

Video port type:: HDMI
Video ports quantity:: 4
DC-in jack:: Yes
Video out:: 4x HDMI
HDMI version:: 1.4

Power

Output voltage:: 5
Output current:: 1 A

Weight & dimensions

Weight:: 0.28 kg

Certificates

Certification:: RoHS, CE, ISO 9002

Packaging content

AC adapter included:: Yes
Manual:: Yes

Logistics data

Master (outer) case height:: 450 mm
Master (outer) case width:: 300 mm
Master (outer) case gross weight:: 13650 g
Master (outer) case length:: 450 mm
Products per master (outer) case:: 30 pc(s)

Other features

Dimensions (WxDxH):: 146 x 73 x 24

Features

Product colour:: Black
Supported video modes:: 1280p, 1080i, 720p, 576p, 576i, 480p
Housing material:: Steel
Bandwidth:: 225 MHz
HDCP:: Yes
3D:: Yes
