UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W

Name: Uninterruptible Power Supply (UPS) Gembird EG-UPSRACK-13
Brand: GEMBIRD
SKU: 147616
Price: 301.23 EUR
Availability: OutOfStock

EcoFlow – energy without limits

Powerful EcoFlow stations for energy anywhere!

Uninterruptible Power Supply (UPS) Gembird EG-UPSRACK-13 — 3 kVA / 1800 W, 7x C13 outlets, 9 Ah battery, rack/tower

UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W Photo 1

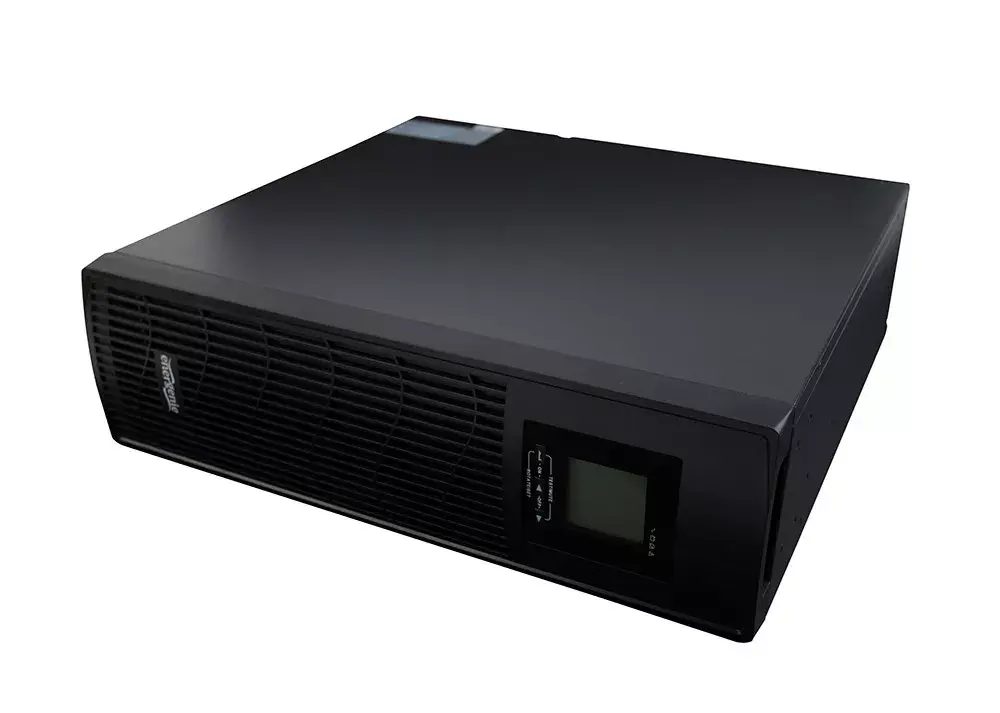

UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W Photo 2

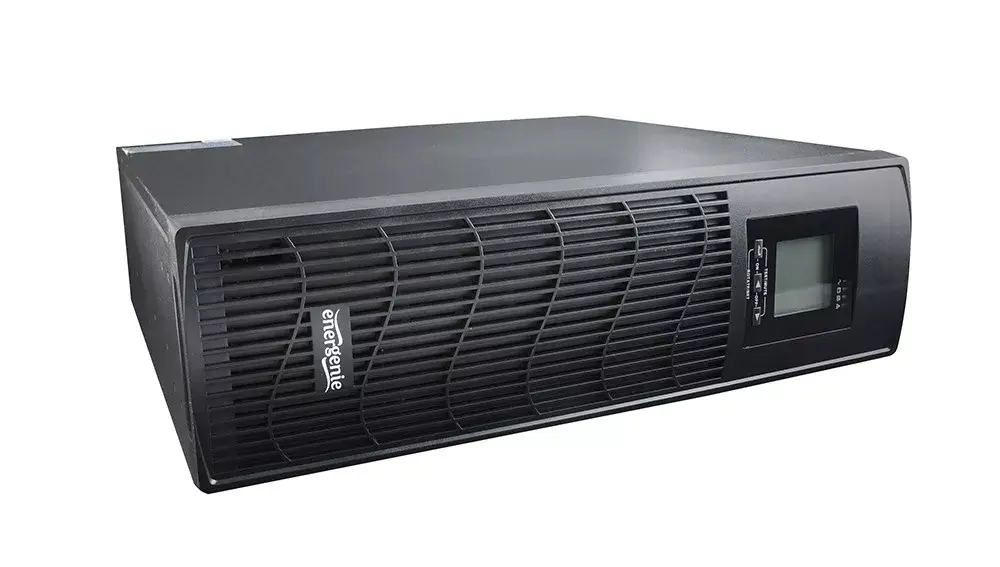

UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W Photo 3

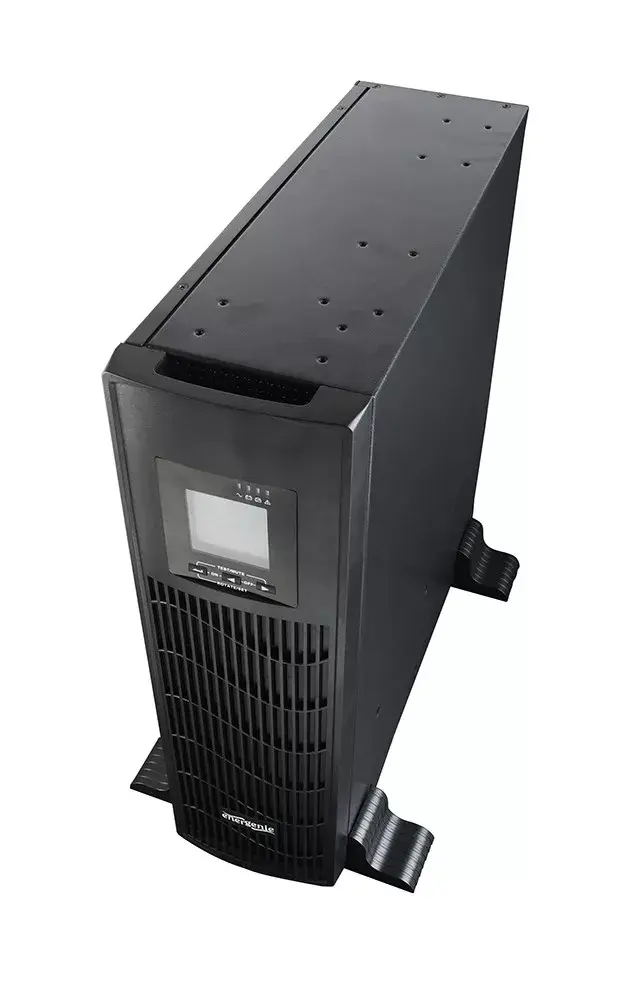

UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W Photo 4

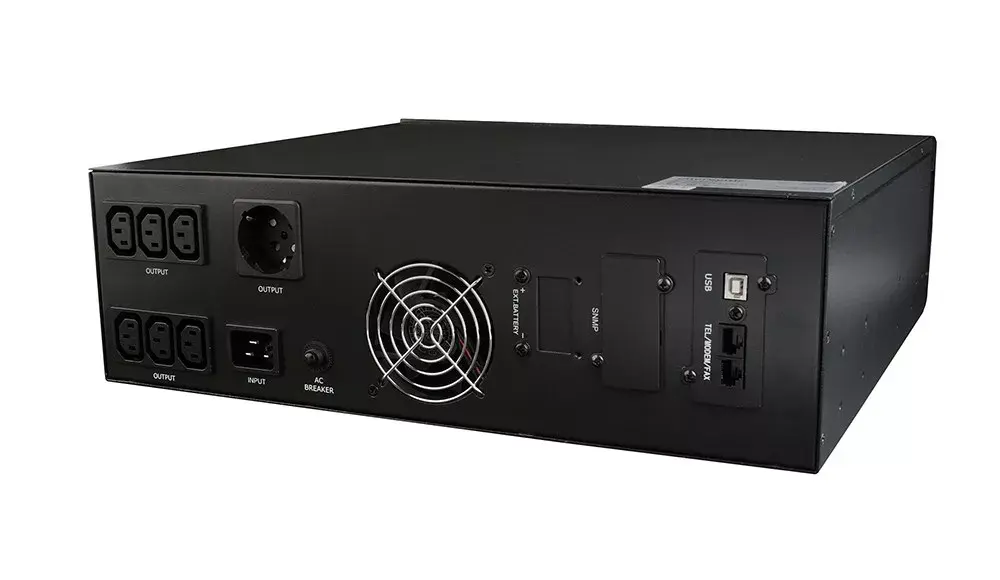

UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W Photo 5

Out of stock.
View similar!

Short description

The Gembird EG-UPSRACK-13 is a Line-Interactive uninterruptible power supply delivering 3 kVA (1800 W) output for rackmount or tower installations. It includes seven C13 AC outlets, one USB 2.0 port and a sealed 9 Ah lead‑acid battery. Designed with active cooling and compliance to RoHS and ISO 9002, it provides reliable short‑term backup and power conditioning for servers, network equipment and critical devices.

Warranty: 2 Years

SKU: 147616

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Gembird EG-UPSRACK-13 is a Line-Interactive uninterruptible power supply offering 3 kVA (1800 W) of output power for rackmount or tower installations. It is equipped with seven C13 AC outlets and a single USB 2.0 port, and uses a sealed 9 Ah lead‑acid battery. The unit provides short‑term backup power and voltage conditioning to protect servers, network devices and other critical equipment from outages and power disturbances. Active cooling helps maintain stable operation during load and battery discharge, while RoHS compliance and ISO 9002 alignment reflect manufacturing and environmental standards.

Advantages

The UPS delivers a balance of rated capacity and compact form factor suitable for data closets and small server rooms, combining 3 kVA (1800 W) output with a sealed 9 Ah battery for reliable short-term autonomy. Seven C13 outlets allow multiple devices to be supported without additional power strips, and the included USB 2.0 port enables basic communication and monitoring with compatible systems. Active cooling maintains thermal stability under sustained load and prolongs component life. The rack/tower convertible design provides installation flexibility for different equipment environments.

Suitable for

Small servers and storage appliances
Network switches, routers and firewalls
Workstations and point-of-sale terminals
Telecom equipment and PBX systems
Edge computing nodes and rackmount appliances

Key specifications

Output power capacity: 3 kVA
Output power (continuous): 1800 W
AC outlets: 7 × C13
Communication port: 1 × USB 2.0
Battery type: sealed lead‑acid
Battery capacity: 9 Ah
Cooling: active cooling (internal fan)
Form factor: rackmount or tower convertible
Weight: 28.1 kg

How to use

Install the unit in a suitable rack bay or position it as a tower on a stable, ventilated surface. Connect the UPS input to a dedicated AC supply in accordance with local electrical codes. Plug the protected devices into the provided C13 outlets and connect the USB 2.0 port to a monitoring host if communication or orderly shutdown functionality is required. Verify battery charge status before putting critical loads onto the UPS and perform routine self-tests as recommended by the manufacturer.

Usage recommendations

Place the UPS in a climate-controlled environment with ambient temperature and humidity within the manufacturer’s specified ranges. Avoid covering ventilation openings and ensure adequate airflow around the unit. Periodically check battery condition and replace the sealed lead‑acid battery when end-of-life indicators appear or runtime becomes insufficient for your shutdown procedures.

Specifications

Form factor: The shape or design of the product.: Rackmount/Tower
Input frequency: The frequency (Hz) which is required to power the product.: 50/60
Waveform:: Sine
Output power: The power that the device can produce.: 1800 W
Output power capacity: The maximum power that the device can produce.: 3 kVA
UPS topology: The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.: Line-Interactive

All features

Other features

Nominal output voltage: The voltage which the manufacturer states that the device can produce.: 220
Nominal input voltage: The voltage which the manufacturer recommends that the device needs to operate normally.: 220
Output connections:: 6 x C13, 1 x Schuko EU

Logistics data

Harmonized System (HS) code:: 85078000

Packaging data

Package height: The distance from the top to the bottom of the packaging.: 225 mm
Package depth: The distance from the front to the back of the packaging.: 410 mm
Package width: The distance from one side of the packaging to the other.: 525 mm

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 28.1 kg
Height: The measurement of the product from head to foot or from base to top.: 410 mm
Depth: The distance from the front to the back of something.: 440 mm
Width: The measurement or extent of something from side to side.: 132 mm

Certificates

Certification:: ISO 9002, CE
Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.: RoHS

Packaging content

Cables included:: USB cable

Operational conditions

Operating relative humidity (H-H):: 10 - 90
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.: 0 - 40

Design

LED indicators:: Y
Display type: Type of display (screen) e.g. LCD.: LED
Cooling type: The method used to cool the device or to cool the air around the device.: Active
Housing material: What the casing of the product is made of.: Metal
Form factor: The shape or design of the product.: Rackmount/Tower

Battery

Cold start:: Yes
Battery recharge time: Approximate time required to recharge the battery from completely empty to completely full: 12 h
Number of batteries supported: The number of batteries that can be used with the product.: 4
Battery voltage: The voltage (V) of the battery.: 12 V
Battery capacity: The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h).: 9 Ah
Battery technology: The type of battery in the device, e.g. nickel–cadmium (NiCd).: Sealed Lead Acid (VRLA)

Ports & interfaces

USB 2.0 ports quantity: Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.: 1
Number of type F outputs:: 1
AC outlets quantity: The number of sockets in the device where AC electrical power can be connected.: 7 AC outlet(s)
Power plug: A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.: C14 coupler
AC outlet types: The type of outlet for AC electricity.: C13 coupler

Features

Audible alarm(s): Alarms that make a sound when they are activated (set off).: Yes
Power protection features: Features that protect the device against power problems e.g. overload.: Short circuit, Overdischarge, Overcharge
Surge protection:: Yes
Noise level: The amplitude level of the undesired background noise, usually measured in decibels (db).: 45 dB
Output power factor:: 0.8
Efficiency:: 85 %
Response time: The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.): 10 ms
Automatic Voltage Regulation (AVR):: Yes
Input frequency: The frequency (Hz) which is required to power the product.: 50/60
Waveform:: Sine
Output power: The power that the device can produce.: 1800 W
Output power capacity: The maximum power that the device can produce.: 3 kVA
UPS topology: The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances.: Line-Interactive

Hide Show all

Instructions

mmo_31819408_1671731639_3532_2163.pdf

Description

Instructions

mmo_31819408_1671731639_3532_2163.pdf

Machine translation.

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All GEMBIRD products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized GEMBIRD service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: form factor, input frequency, waveform, output power, output power capacity, ups topology, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for UPS Gembird EG-UPSRACK-13 — 3 kVA / 1800 W?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
