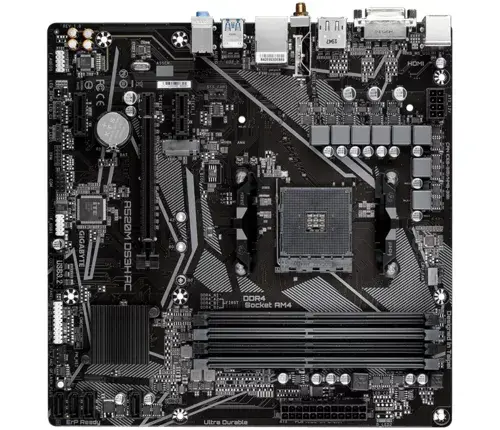

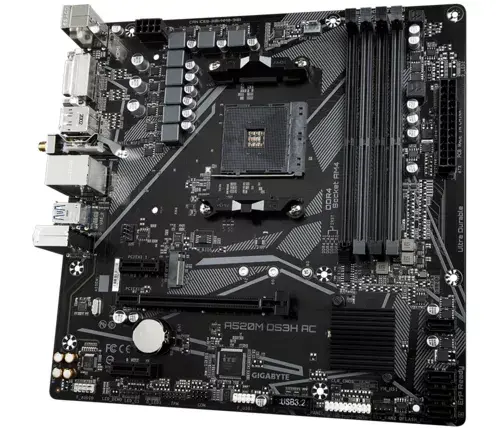

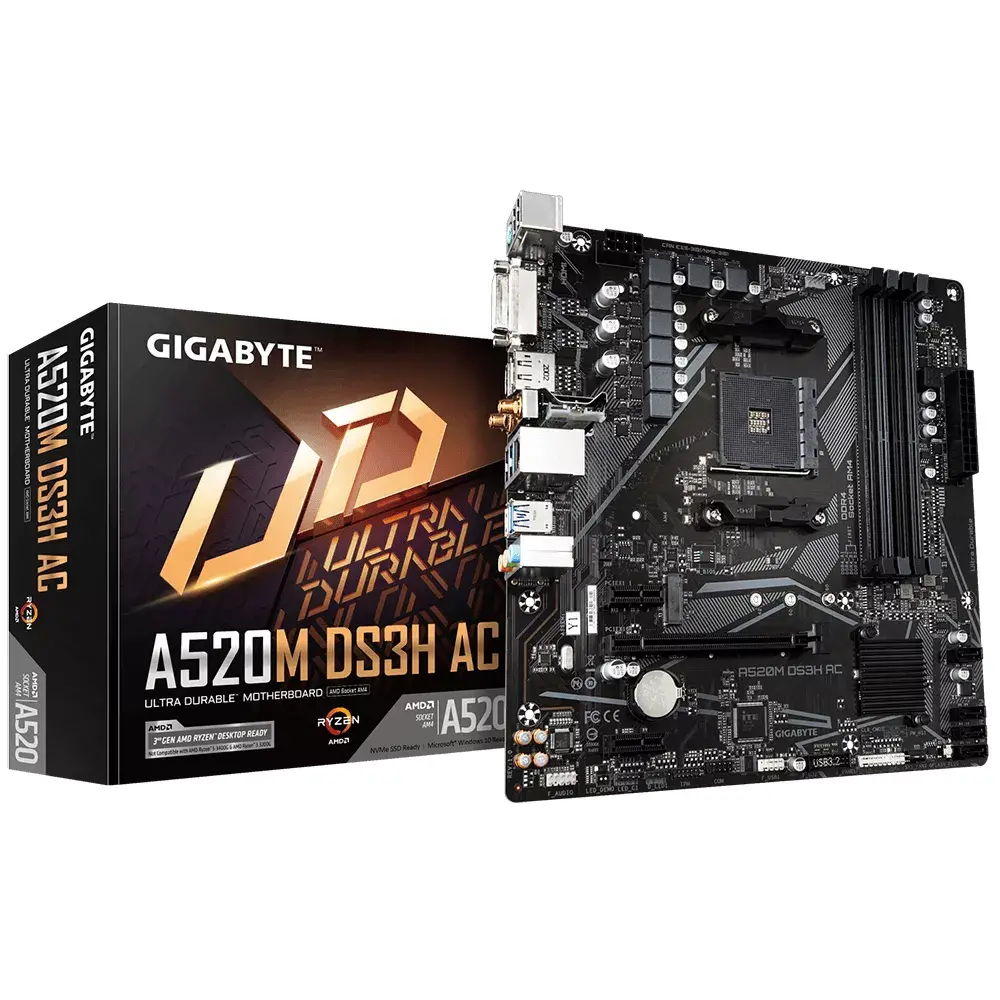

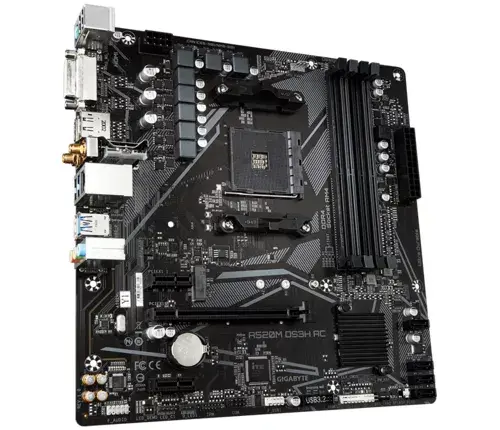

header-product Motherboard GIGABYTE A520M DS3H AC, A520, AM4, Micro ATX
64.99 €

Motherboard GIGABYTE A520M DS3H AC, A520, AM4, Micro ATX

Motherboard GIGABYTE A520M DS3H AC, A520 Photo 1
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 2
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 3
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 4
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 5
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 1
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 2
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 3
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 4
Motherboard GIGABYTE A520M DS3H AC, A520 Photo 5
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard GIGABYTE A520M DS3H AC, A520, AM4, Micro ATX

{{email}}
You keep track of price changes

Motherboard GIGABYTE A520M DS3H AC, A520, AM4, Micro ATX

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The GIGABYTE A520M DS3H AC motherboard supports AMD Ryzen 5000 Series CPUs with a Socket AM4. It features 5+3 phases VRM, supports DDR4 memory up to 128 GB, and offers PCIe 3.0 M.2, Gigabit Ethernet, and Wi-Fi 5 connectivity. Ideal for building a powerful and efficient system.
Available at price 64.99 €: 20 pcs.
Total available for order: 265 pcs.
Warranty: 3 Years
SKU: 11330587
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
13.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
16.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.40 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
16.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Price for companies: 53.71€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The GIGABYTE A520M DS3H AC is a Micro ATX motherboard designed for Socket AM4 systems and compatible with AMD Ryzen 5000 Series processors. Based on the AMD A520 chipset, it supports up to 128 GB of DDR4 memory across four DIMM slots and provides a balanced set of connectivity options including PCIe 3.0 M.2 storage, Gigabit Ethernet and integrated Wi‑Fi 5 for versatile desktop builds.

Advantages

This motherboard offers a reliable 5+3 phase VRM design for stable power delivery to AM4 CPUs, multiple expansion slots with one PCIe x16 and two PCIe x1 (Gen 3.x) slots, and an M.2 slot supporting PCIe 3.0 storage for faster boot and load times. With four memory slots supporting DDR4 up to 128 GB and built‑in Wi‑Fi 5 and Gigabit Ethernet, it balances performance and connectivity in a compact Micro ATX form factor.

Suitable for

  • Home and office PCs
  • Budget to mid-range gaming builds with AM4 Ryzen CPUs
  • Content creation systems requiring multiple memory channels and M.2 storage
  • Compact Micro ATX builds with wireless connectivity

Key specifications

  • Form factor: Micro ATX
  • Chipset: AMD A520
  • Processor socket: Socket AM4 (supports AMD Ryzen 5000 Series)
  • Memory: 4× DDR4 DIMM slots, up to 128 GB
  • PCI Express: 1× PCIe x16 (Gen 3.x), 2× PCIe x1 (Gen 3.x)
  • Storage: PCIe 3.0 M.2 slot
  • Networking: Gigabit Ethernet and integrated Wi‑Fi 5
  • VRM: 5+3 phase power design
  • Weight: 0.72 kg

How to use

Install the motherboard into a compatible Micro ATX case, mount an AM4 processor and apply appropriate cooling, populate DDR4 memory modules in the recommended slot configuration, and connect storage devices including M.2 SSDs and SATA drives. Attach power supply connectors (24‑pin ATX and CPU 8‑pin as required), install a compatible graphics card into the PCIe x16 slot if needed, and connect front panel and peripheral cables. After assembly, configure BIOS settings for memory and storage and install the operating system and drivers.

Usage recommendations

For best stability, use quality DDR4 modules tested for compatibility with AM4 platforms, ensure adequate CPU cooling for Ryzen processors, and update the BIOS to the latest version before system deployment. Choose a power supply with sufficient wattage and stable rails to support the CPU and any discrete GPU installed.

Specifications

Motherboard form factor:
Micro ATX
Motherboard chipset:
AMD A520
Component for:
PC
Processor socket:
Socket AM4
Number of memory slots:
4
Maximum internal memory:
128 GB
PCI Express x1 (Gen 3.x) slots:
2
PCI Express x16 (Gen 3.x) slots:
1
Weight:
0.72 kg
Supported memory types:
DDR4-SDRAM
All features

Features

Motherboard form factor:
Micro ATX
Motherboard chipset:
AMD A520
Component for:
PC
Audio output channels:
7.1
PC health monitoring:
FAN, Temperature, Voltage
Windows operating systems supported:
Windows 10 x64, Windows 11
Motherboard chipset family:
AMD
Power source type:
ATX

Processor

Processor manufacturer:
AMD
Maximum number of SMP processors:
1
Processor socket:
Socket AM4

Memory

Number of memory slots:
4
Maximum internal memory:
128 GB
Supported memory types:
DDR4-SDRAM
Supported memory clock speeds:
2133, 2400, 2667, 2933, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3800, 3866, 4000, 4400, 4733
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM
Supported memory clock speed (max):
4733 MHz
Maximum internal memory per slot:
32 GB
ECC сompatibility:
ECC & non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
2
PCI Express x16 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
1
1st M.2 largest key size:
2280
1st M.2 highest PCI Express generation:
3.0

Graphics

Maximum resolution:
5120 x 2880
Parallel processing technology support:
Not supported
HDCP:
Yes
Discrete graphics support:
Yes
Number of displays supported:
3

Network

Bluetooth version:
4.2
Ethernet LAN:
Yes
Bluetooth:
Yes
Wi-Fi:
Yes
Ethernet interface type:
Gigabit Ethernet
Top Wi-Fi standard:
Wi-Fi 5 (802.11ac)
WLAN controller model:
Intel Dual Band Wireless-AC 3168

Internal I/O

USB 2.0 connectors:
1
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Number of chassis fan connectors:
2
Front panel audio connector:
Yes
TPM connector:
Yes
EPS power connector (8-pin):
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Number of SATA III connectors:
4
Number of SATA II connectors:
0
Serial port headers:
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Total number of SATA connectors:
4
Front panel connector:
Yes
12V power connector:
Yes
RGB LED pin header:
Yes
Number of RGB LED pin headers:
2
Number of CPU fan connectors:
1
Number of EPS power connectors (8-pin):
1

Rear panel I/O ports

PS/2 ports quantity:
1
Line-in:
Yes
USB 2.0 ports quantity:
2
Ethernet LAN (RJ-45) ports:
1
Headphone outputs:
1
Microphone in:
Yes
VGA (D-Sub) ports quantity:
0
DVI-D ports quantity:
1
WiFi-AP antenna jack:
2
HDMI ports quantity:
1
HDMI version:
2.1
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 10
Supported storage drive types:
HDD & SSD
RAID support:
Yes
Number of storage drives supported:
5
Supported storage drive interfaces:
M.2, SATA III

Technical details

Warranty period:
3 year(s)

BIOS

BIOS memory size:
128 Mbit
BIOS type:
UEFI AMI
ACPI version:
5.0
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
System Management BIOS (SMBIOS) version:
2.7

Weight & dimensions

Width:
244 mm
Depth:
244 mm

Other features

Number of HDDs supported:
4
Supported processor sockets:
Socket AM4
Weight:
0.72 kg
Wi-Fi standards:
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Package weight:
1210 g
Height:
35 mm
DisplayPort version:
1.4

Packaging content

Batteries included:
Yes
Screws included:
Yes
Antenna included:
Yes

Packaging data

Package depth:
268 mm
Package height:
68 mm
Package width:
270 mm

Battery

Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Number of battery cells:
1
Battery weight:
3 g
Lithium weight per battery:
0.07 g

Logistics data

Products per shipping (inner) case:
1 pc(s)
