header-product Motherboard GIGABYTE A520M DS3H V2 micro ATX, AMD A520, Socket AM4, 4x DIMM DDR4 up to 128GB, 1x M.2, 4x SATA III
60.49 €

Motherboard GIGABYTE A520M DS3H V2 micro ATX, AMD A520, Socket AM4, 4x DIMM DDR4 up to 128GB, 1x M.2, 4x SATA III

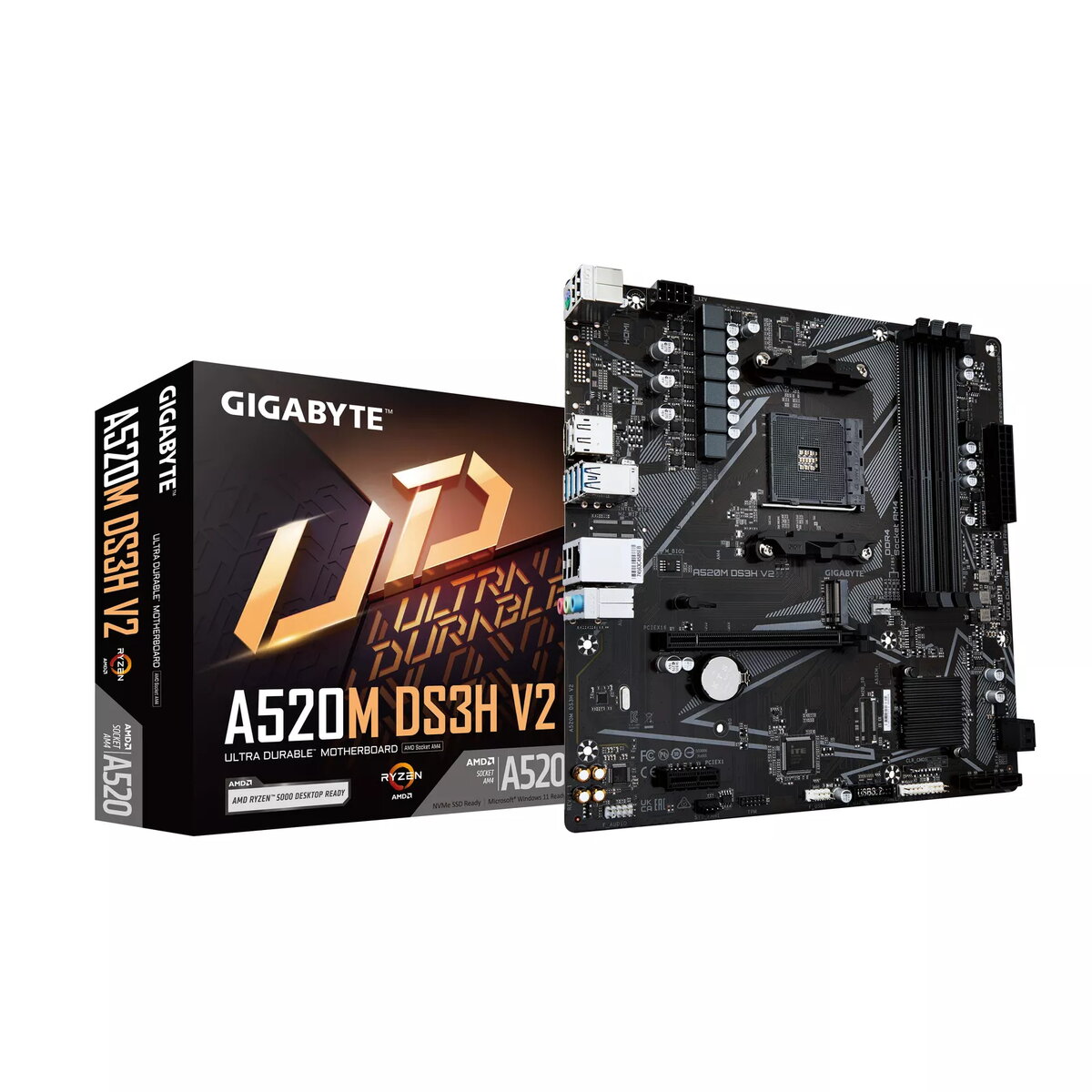

GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 1

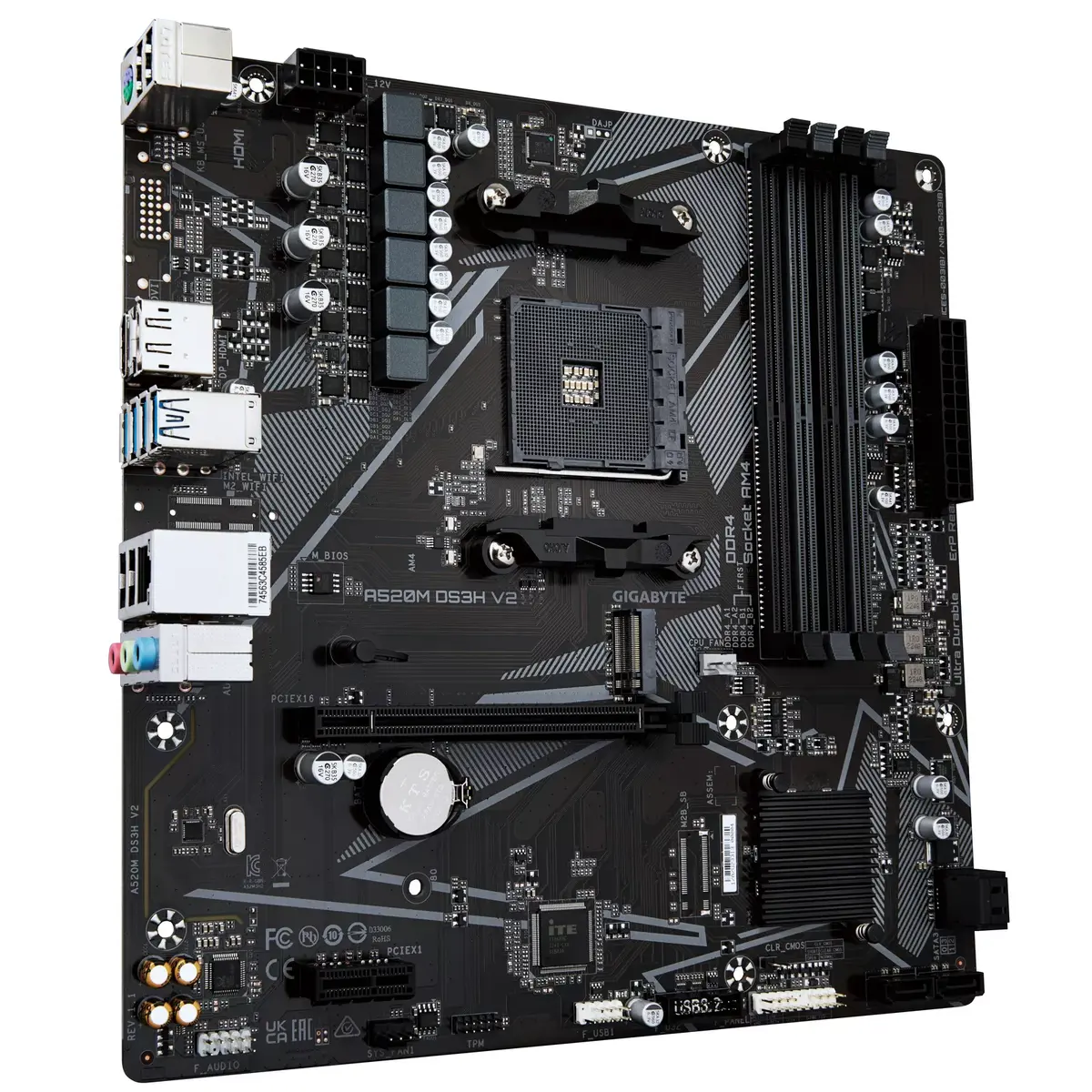

GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 2

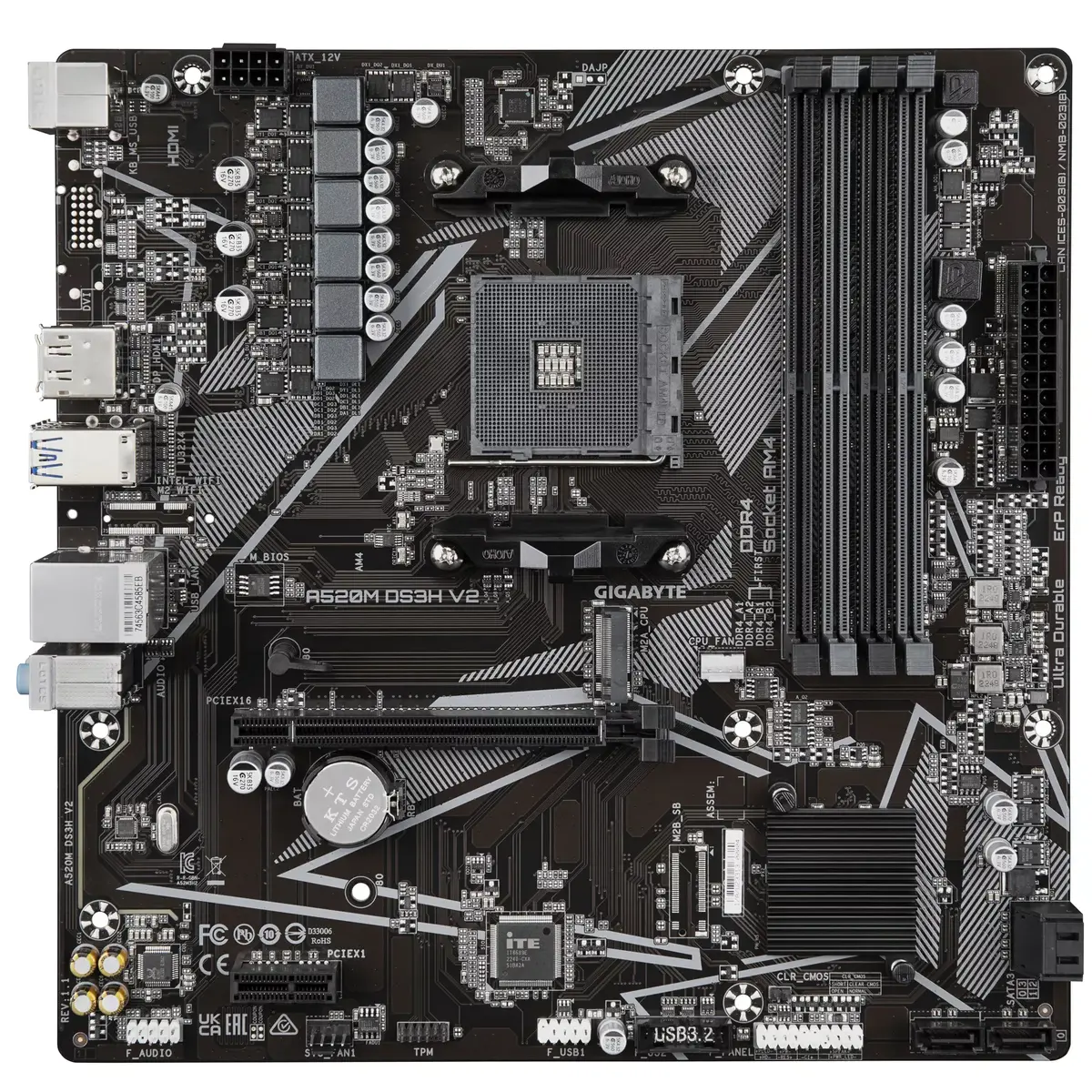

GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 3

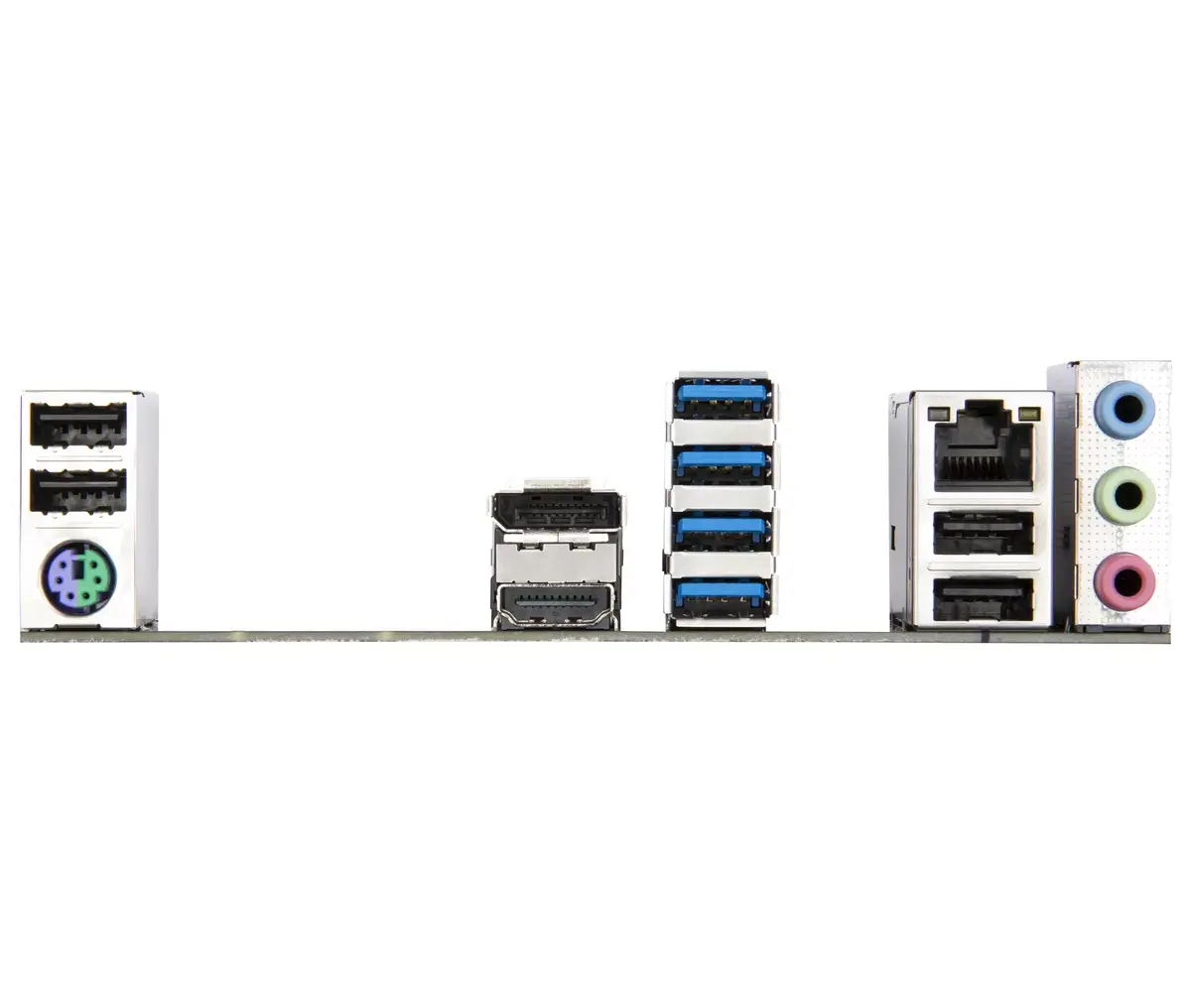

GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 4
GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 1
GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 2
GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 3
GIGABYTE A520M DS3H V2 micro ATX motherboard Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard GIGABYTE A520M DS3H V2 micro ATX, AMD A520, Socket AM4, 4x DIMM DDR4 up to 128GB, 1x M.2, 4x SATA III

{{email}}
You keep track of price changes

Motherboard GIGABYTE A520M DS3H V2 micro ATX, AMD A520, Socket AM4, 4x DIMM DDR4 up to 128GB, 1x M.2, 4x SATA III

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

GIGABYTE A520M DS3H V2 is a micro ATX motherboard for Socket AM4 AMD processors supporting Ryzen series. It features AMD A520 chipset, 4 DDR4 DIMM slots (dual-channel) up to 128 GB, one M.2 slot, four SATA III ports, PCIe: 1x x16 and 2x x1 (Gen3). Integrated HDMI 2.1, DVI-D, DisplayPort, Gigabit LAN, Realtek ALC887 7.1 audio and UEFI BIOS. Suitable for compact desktop builds, office and home systems with RAID support and active cooling.
Available at price 60.49 €: 20 pcs.
Total available for order: 359 pcs.
Warranty: 3 Years
SKU: 10648365
free shipment

Cheapest delivery:

Venipak Locker LV

Pick-up points

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
09.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
14.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 1.00 kg)
Parcel couriers
Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Venipak Pickup LV / Latvijas Pasts nodaļa
14.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
payment
Payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay
Price for companies: 49.99€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The GIGABYTE A520M DS3H V2 is a Micro ATX motherboard compatible with Socket AM4 processors and designed for desktop PC builds. It supports AMD Ryzen 5000 Series CPUs, up to 128 GB DDR4 memory (4 DIMM slots) with overclocking up to 4733 MHz (OC), and provides a balance of connectivity and expandability with PCIe 3.0 slots, M.2 and SATA III storage support, GbE LAN and USB 3.2 Gen 1 ports.

Advantages

This motherboard combines a compact Micro ATX form factor with support for modern Ryzen processors and high-capacity DDR4 memory, offering reliable fundamentals for gaming, content creation or general-purpose PCs. Built-in M.2 and SATA III interfaces accommodate both NVMe/SSD and HDD storage, while RAID 0/1/10 support enables flexible storage configurations. The board also includes multiple PCIe slots and contemporary connectivity such as USB 3.2 Gen 1 and Gigabit Ethernet.

Suitable for

  • Home and office desktop PCs
  • Mid-range gaming systems with a single PCIe x16 graphics card
  • Content creation and multimedia editing on a budget
  • Upgrading existing AM4-based systems

Key specifications

  • Form factor: Micro ATX
  • Processor socket: Socket AM4 (supports AMD Ryzen 5000 Series)
  • Memory: 4 x DDR4 DIMM slots, up to 128 GB, up to 4733 MHz (OC)
  • PCIe slots: 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
  • Storage interfaces: M.2, SATA III
  • LAN: Gigabit Ethernet (GbE)
  • USB: USB 3.2 Gen 1 ports
  • RAID: Support for RAID 0, 1 and 10

How to use

Install the motherboard into a Micro ATX-compatible case and seat an AM4-compatible Ryzen CPU into the socket following the CPU cooler manufacturer's instructions. Insert DDR4 memory modules into the four DIMM slots according to the motherboard manual for optimal channel configuration. Connect storage devices via M.2 and SATA III connectors, and install a graphics card into the PCIe 3.0 x16 slot if required. Attach power supply cables (24-pin ATX and CPU 8-pin) and connect front-panel headers, USB, and LAN. Configure BIOS/UEFI settings to detect installed devices and, if desired, enable memory overclocking profiles or set up RAID arrays for supported drives.

Usage recommendations

Use high-quality DDR4 modules that match the motherboard's supported frequencies and populate DIMM slots as advised in the manual for dual-channel operation. When installing an M.2 SSD, consult the manual for M.2 slot thermal considerations and enable appropriate BIOS settings. For RAID configurations, back up data before creating arrays and use identical drives for best results.

Specifications

Motherboard form factor:
Micro ATX
Component for:
PC
Processor socket:
Socket AM4
Number of memory slots:
4
Maximum internal memory:
128 GB
PCI Express x1 (Gen 3.x) slots:
2
PCI Express x16 (Gen 3.x) slots:
1
Supported memory types:
DDR4-SDRAM
All features

Features

Motherboard form factor:
Micro ATX
Component for:
PC
Audio output channels:
7.1
Cooling type:
Active
PC health monitoring:
CPU, LED, Power supply, Temperature, Voltage
Windows operating systems supported:
Windows 10 x64
Motherboard chipset family:
AMD
Power source type:
ATX
Product colour:
Black

Processor

Processor manufacturer:
AMD
Maximum number of SMP processors:
1
Processor socket:
Socket AM4
Maximum internal memory supported by processor:
128 GB

Memory

Number of memory slots:
4
Maximum internal memory:
128 GB
Supported memory types:
DDR4-SDRAM
Supported memory clock speeds:
2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4733
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM
Supported memory module capacities:
1GB, 2GB, 4GB, 8GB, 16GB, 32GB
ECC сompatibility:
ECC & non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
2
PCI Express x16 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
1

Graphics

Maximum resolution:
5120 x 2880
HDCP:
Yes
Discrete graphics support:
Yes
Number of displays supported:
3

Network

Ethernet LAN:
Yes
Wi-Fi:
No
Ethernet interface type:
Gigabit Ethernet

Internal I/O

USB 2.0 connectors:
1
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Number of Parallel ATA connectors:
0
Front panel audio connector:
Yes
Power fan connector:
Yes
TPM connector:
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Number of SATA III connectors:
4
Number of SATA II connectors:
0
Clear CMOS button:
Yes
Serial port headers:
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Total number of SATA connectors:
4
Front panel connector:
Yes
12V power connector:
Yes

Rear panel I/O ports

PS/2 ports quantity:
1
USB connector type:
USB Type-A
USB 2.0 ports quantity:
2
Firewire (IEEE 1394) ports:
0
Ethernet LAN (RJ-45) ports:
1
Headphone outputs:
1
Microphone in:
Yes
VGA (D-Sub) ports quantity:
0
eSATA ports quantity:
0
DVI-D ports quantity:
1
Digital audio optical out:
1
HDMI ports quantity:
1
HDMI version:
2.1
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 10
Supported storage drive types:
HDD & SSD
RAID support:
Yes
Number of storage drives supported:
5
Supported storage drive interfaces:
M.2, SATA III

Technical details

Warranty period:
3 year(s)

BIOS

BIOS memory size:
128 Mbit
BIOS type:
UEFI AMI
ACPI version:
5.0
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
System Management BIOS (SMBIOS) version:
2.7

Weight & dimensions

Width:
244 mm
Depth:
244 mm

Other features

Number of HDDs supported:
4
Supported processor sockets:
Socket AM4
Package weight:
810 g
Height:
35 mm
Number of EATX power connectors:
1
DisplayPort version:
2.0
Audio chip:
Realtek ALC887

Packaging content

Bundled software:
Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Cables included:
SATA
Batteries included:
Yes
Drivers included:
Yes

Packaging data

Package depth:
265 mm
Package height:
54 mm
Package width:
265 mm

Battery

Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Number of battery cells:
1
Battery weight:
3 g
Lithium weight per battery:
0.07 g

Logistics data

Country of origin:
China
Products per shipping (inner) case:
1 pc(s)
