header-product Motherboard GIGABYTE B840M D3HP — Micro ATX, AMD B840, Socket AM5, 4x DIMM DDR5 up to 256GB, 2x PCIe 4.0 M.2, 1GbE, USB 3.2 Gen2
117.49 €

Motherboard GIGABYTE B840M D3HP — Micro ATX, AMD B840, Socket AM5, 4x DIMM DDR5 up to 256GB, 2x PCIe 4.0 M.2, 1GbE, USB 3.2 Gen2

GIGABYTE B840M D3HP Micro ATX Motherboard Photo 1

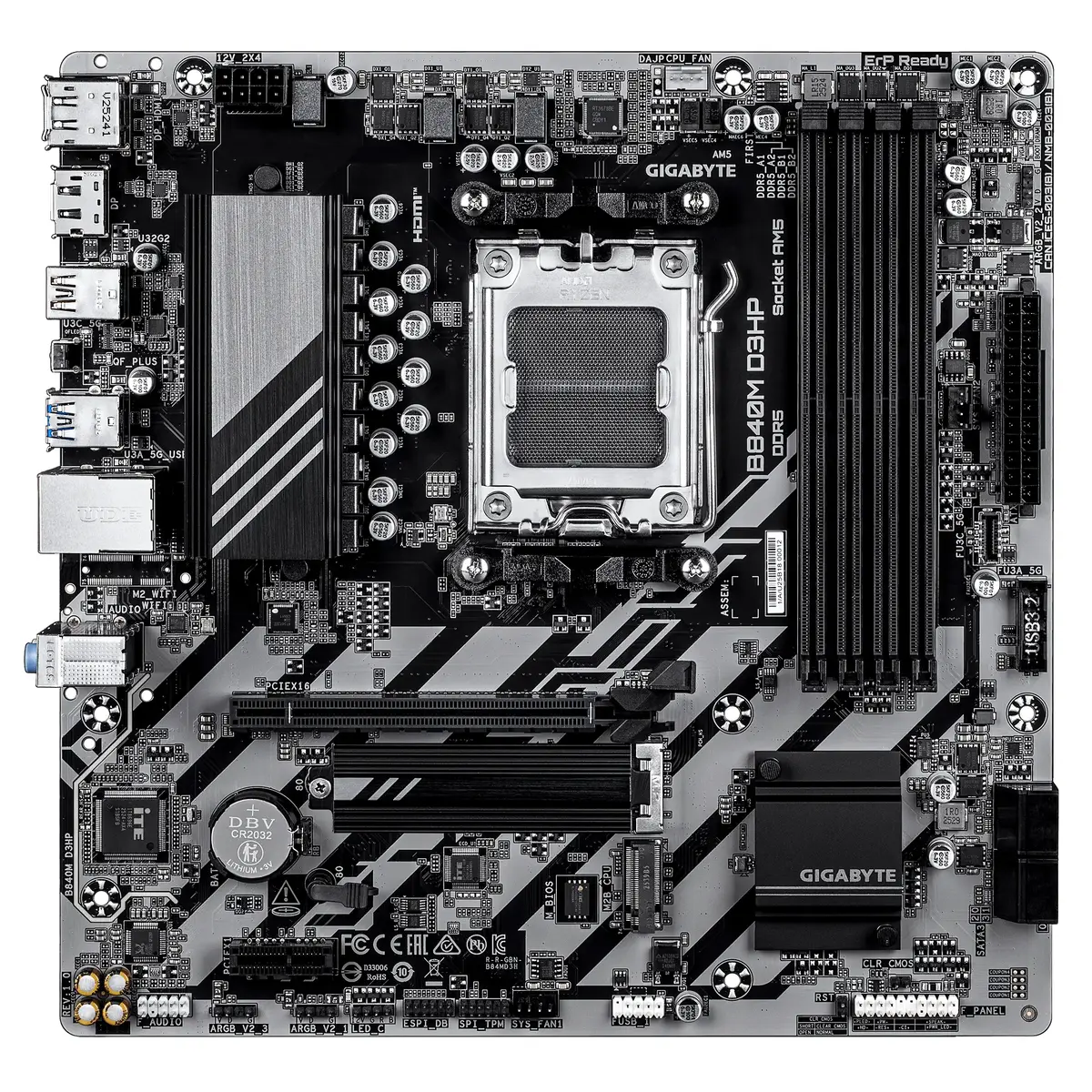

GIGABYTE B840M D3HP Micro ATX Motherboard Photo 2

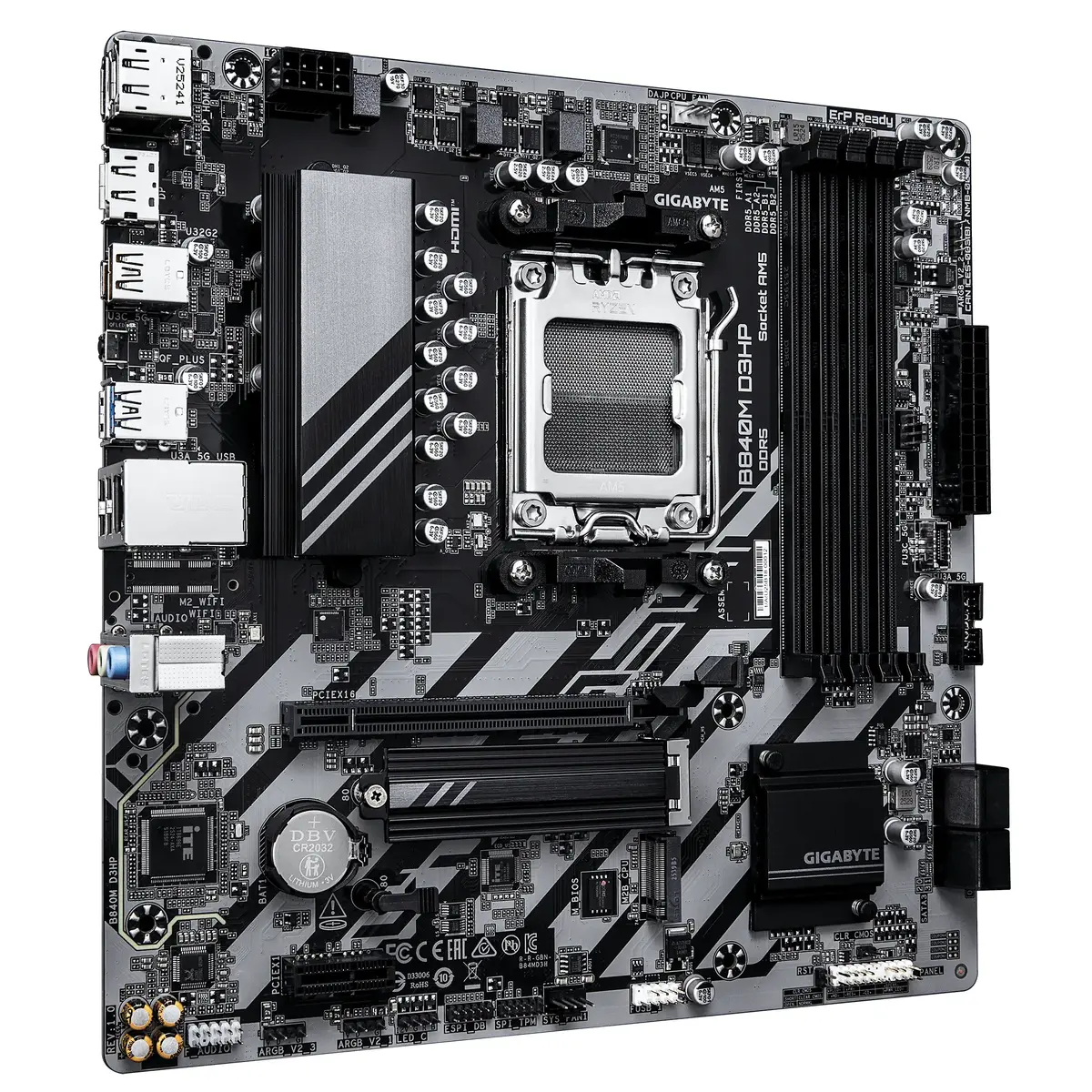

GIGABYTE B840M D3HP Micro ATX Motherboard Photo 3

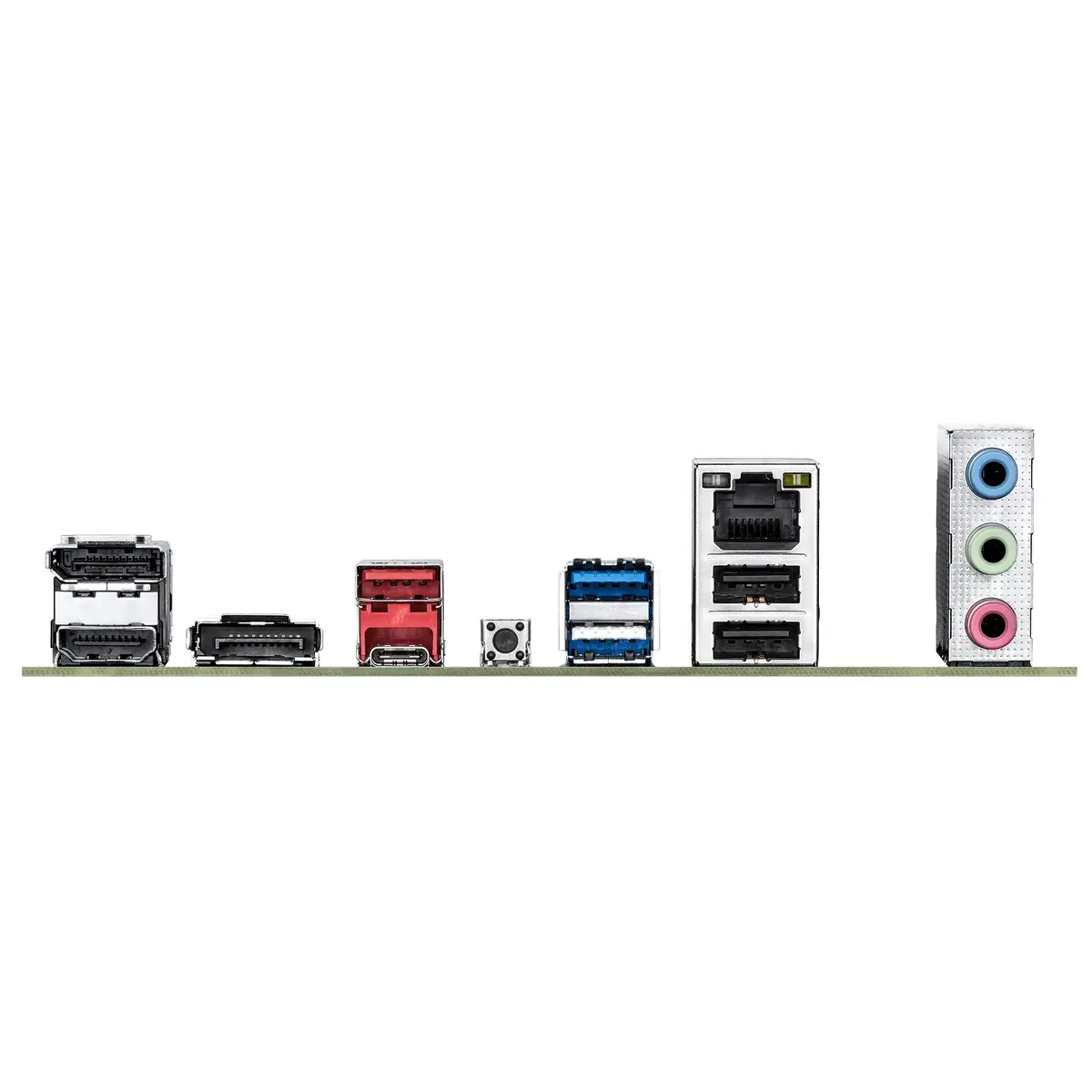

GIGABYTE B840M D3HP Micro ATX Motherboard Photo 4
GIGABYTE B840M D3HP Micro ATX Motherboard Photo 1
GIGABYTE B840M D3HP Micro ATX Motherboard Photo 2
GIGABYTE B840M D3HP Micro ATX Motherboard Photo 3
GIGABYTE B840M D3HP Micro ATX Motherboard Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard GIGABYTE B840M D3HP — Micro ATX, AMD B840, Socket AM5, 4x DIMM DDR5 up to 256GB, 2x PCIe 4.0 M.2, 1GbE, USB 3.2 Gen2

{{email}}
You keep track of price changes

Motherboard GIGABYTE B840M D3HP — Micro ATX, AMD B840, Socket AM5, 4x DIMM DDR5 up to 256GB, 2x PCIe 4.0 M.2, 1GbE, USB 3.2 Gen2

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

GIGABYTE B840M D3HP is a Micro ATX motherboard for Socket AM5 supporting AMD Ryzen 7000/8000/9000 series processors. Based on the AMD B840 chipset, it provides an 8+2+2 phases VRM, four DDR5 DIMM slots up to 256 GB (supports overclocking to 8200 MHz as specified), two PCIe 4.0 M.2 slots, SATA III, one PCIe x1 slot, Realtek RTL8111H Gigabit LAN and USB 3.2 Gen 2 connectivity. Suitable for compact desktop builds, gaming and workstation systems requiring high-speed storage and modern memory.
Available at price 117.49 €: 2 pcs.
Total available for order: 32 pcs.
Warranty: 2 Years
SKU: 12088136
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
16.07.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
21.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.92 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
21.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 39.16 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 3.26 euros per month
Price for companies: 97.10€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Key Features

  • X3D Turbo Mode: Unleash new era gaming performance
  • DDR5 OC up to 8200MT/s
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 8+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
  • EZ-Latch: PCIe and M.2 slots with Quick Release Design
  • Ultra-Fast Storage: 2*M.2 slots, including PCIe 4.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: GbE LAN
  • Extended Connectivity: HDMI, 2*Displayport
  • AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
  • PC micro ATX AMD B840 Realtek ALC897 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, PCI Express 4.0, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit ACPI version: 5.0 Clear CMOS jumper
  • Gigabit Ethernet

Specifications

Motherboard form factor:
Micro ATX
Motherboard chipset:
AMD B840
Component for:
PC
Processor socket:
Socket AM5
Number of memory slots:
4
Maximum internal memory:
256 GB
PCI Express x1 (Gen 3.x) slots:
1
Weight:
0.96 kg
Supported memory types:
DDR5-SDRAM
All features

Features

Motherboard form factor:
Micro ATX
Motherboard chipset:
AMD B840
Component for:
PC
Audio output channels:
7.1
Cooling type:
Passive
PC health monitoring:
FAN, Temperature, Voltage, Water cooling
Windows operating systems supported:
Windows 10 x64, Windows 11 x64
Motherboard chipset family:
AMD
Power source type:
ATX
Product colour:
Dark brown

Processor

Processor manufacturer:
AMD
Processor socket:
Socket AM5

Memory

Number of memory slots:
4
Maximum internal memory:
256 GB
Supported memory types:
DDR5-SDRAM
Supported memory clock speeds:
7000, 6800, 6600, 6400, 6200, 6000, 5600, 5800
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM
Supported memory clock speed (max):
8200 MHz
Maximum internal memory per slot:
64 GB
ECC сompatibility:
non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
2
PCI Express x16 (Gen 4.x) slots:
1
1st M.2 largest key size:
2580
2nd M.2 largest key size:
2280
1st M.2 highest PCI Express generation:
4.0
2nd M.2 highest PCI Express generation:
4.0

Graphics

Maximum resolution:
4096 x 2160
Parallel processing technology support:
Not supported
DirectX version:
12.0
HDCP:
Yes
HDCP version:
2.3

Network

Ethernet LAN:
Yes
LAN controller:
Realtek RTL8111H
Wi-Fi:
No
Ethernet interface type:
Gigabit Ethernet

Internal I/O

USB 2.0 connectors:
1
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Number of chassis fan connectors:
2
Front panel audio connector:
Yes
TPM connector:
Yes
EPS power connector (8-pin):
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
2
Number of SATA III connectors:
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Front panel connector:
Yes
RGB LED pin header:
Yes
Number of RGB LED pin headers:
4
Number of CPU fan connectors:
1
Number of EPS power connectors (8-pin):
1

Rear panel I/O ports

Line-in:
Yes
USB 2.0 ports quantity:
3
Ethernet LAN (RJ-45) ports:
1
Headphone outputs:
1
Microphone in:
Yes
VGA (D-Sub) ports quantity:
0
DVI-D ports quantity:
0
HDMI ports quantity:
1
HDMI version:
2.1
DisplayPorts quantity:
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 10, 5
Supported storage drive types:
HDD & SSD
RAID support:
Yes
Number of storage drives supported:
6
Supported storage drive interfaces:
M.2, PCI Express 4.0, SATA III

Technical details

Warranty period:
3 year(s)

BIOS

BIOS memory size:
256 Mbit
BIOS type:
UEFI AMI
ACPI version:
5.0
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
System Management BIOS (SMBIOS) version:
2.7

Weight & dimensions

Width:
244 mm
Depth:
244 mm

Other features

Number of HDDs supported:
4
Supported processor sockets:
Socket AM5
Weight:
0.96 kg
Package weight:
1040 g
Height:
35 mm
DisplayPort version:
1.4
Audio chip:
Realtek ALC897

Packaging content

Bundled software:
Norton® Internet Security (OEM version)
Batteries included:
Yes
Screws included:
Yes

Packaging data

Package depth:
265 mm
Package height:
54 mm
Package width:
265 mm

Battery

Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Battery capacity:
220 mAh
Number of battery cells:
1
Battery weight:
3 g
Lithium weight per battery:
0.07 g

Logistics data

Country of origin:
China
Products per shipping (inner) case:
1 pc(s)
