header-product Motherboard GIGABYTE B860M E GEN5 LGA1851 for Intel Core Ultra, DDR5 up to 8800MHz (O.C.), 2x PCIe 4.0 M.2, 1GbE
110.49 €

Motherboard GIGABYTE B860M E GEN5 LGA1851 for Intel Core Ultra, DDR5 up to 8800MHz (O.C.), 2x PCIe 4.0 M.2, 1GbE

Fast shipping
GIGABYTE B860M E GEN5 motherboard Photo 1

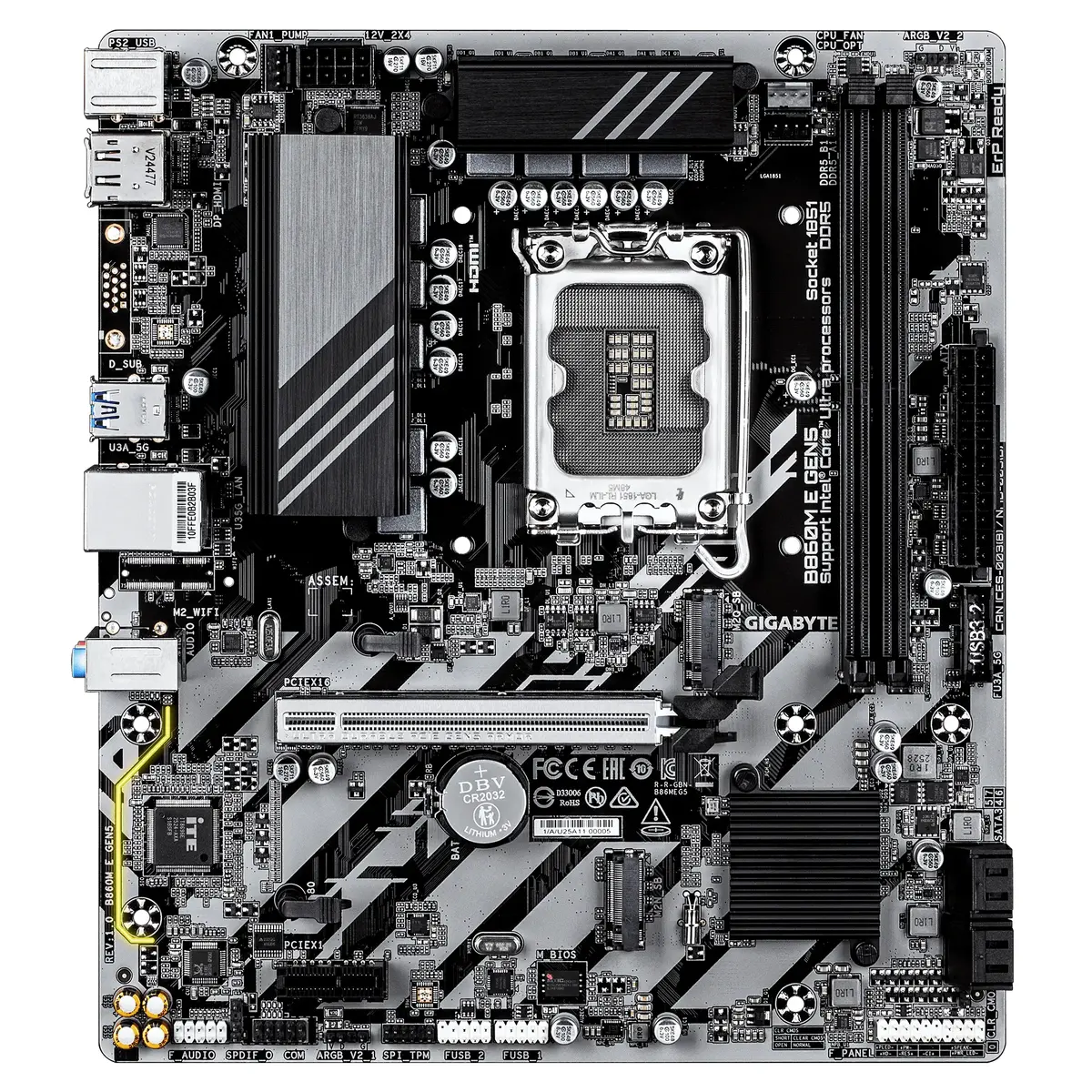

GIGABYTE B860M E GEN5 motherboard Photo 2

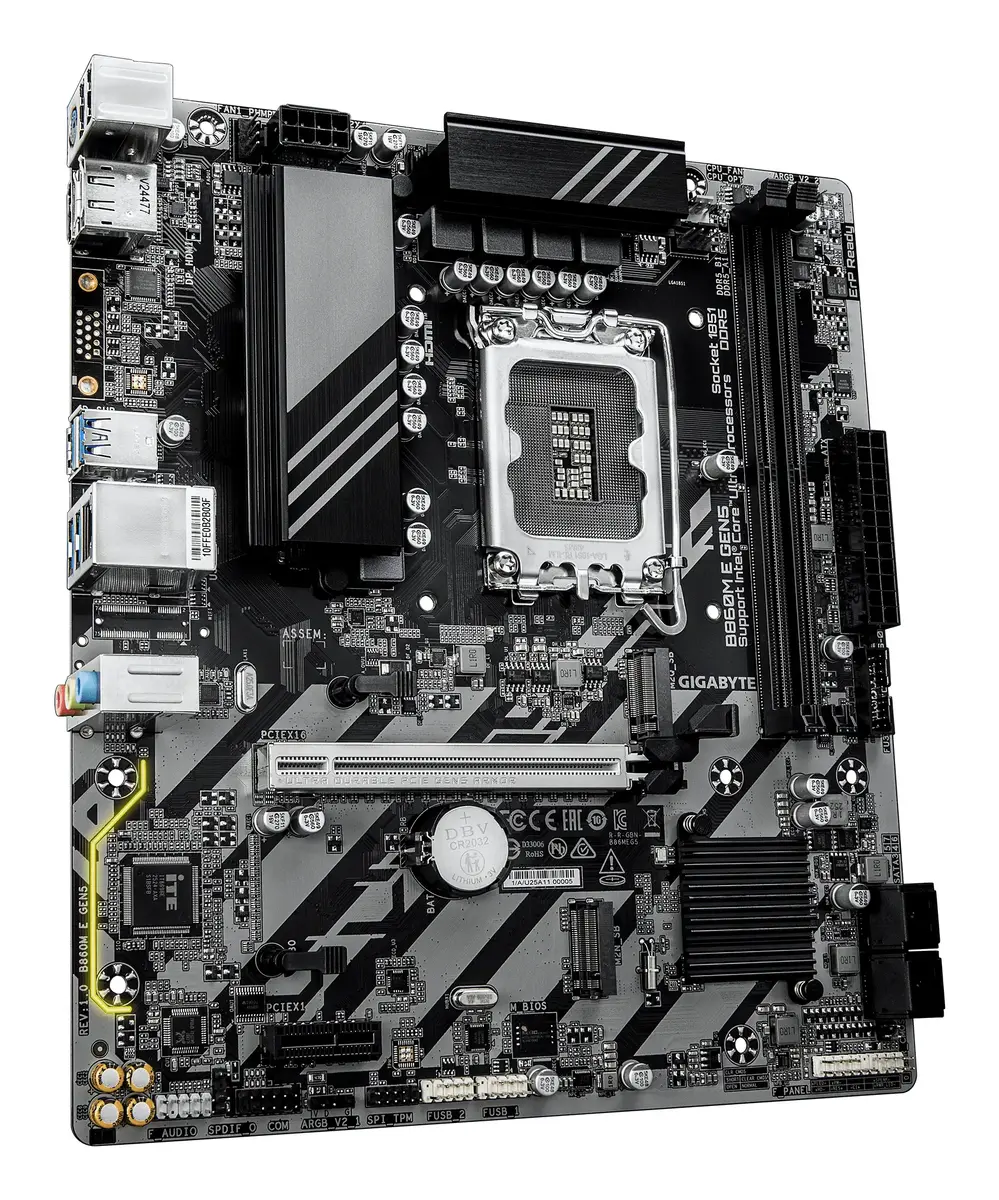

GIGABYTE B860M E GEN5 motherboard Photo 3

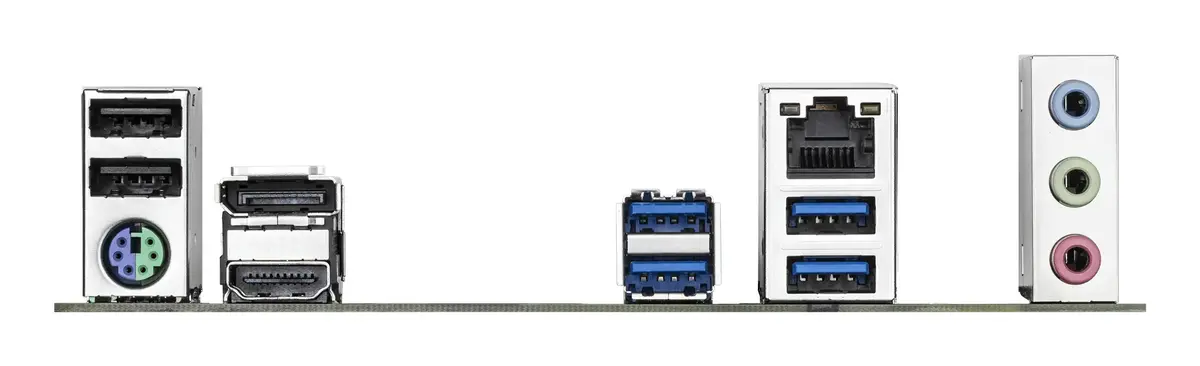

GIGABYTE B860M E GEN5 motherboard Photo 4
GIGABYTE B860M E GEN5 motherboard Photo 1
GIGABYTE B860M E GEN5 motherboard Photo 2
GIGABYTE B860M E GEN5 motherboard Photo 3
GIGABYTE B860M E GEN5 motherboard Photo 4
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Motherboard GIGABYTE B860M E GEN5 LGA1851 for Intel Core Ultra, DDR5 up to 8800MHz (O.C.), 2x PCIe 4.0 M.2, 1GbE

{{email}}
You keep track of price changes

Motherboard GIGABYTE B860M E GEN5 LGA1851 for Intel Core Ultra, DDR5 up to 8800MHz (O.C.), 2x PCIe 4.0 M.2, 1GbE

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

Micro-ATX motherboard GIGABYTE B860M E GEN5 with LGA1851 socket for Intel Core Ultra series (Series 2). Supports DDR5 memory up to 128 GB and overclocking up to 8800 MHz (O.C.), 4+1+2 phases VRM, two PCIe 4.0 M.2 slots, SATA III and RAID 0/1/5/10 support. Integrated Realtek RTL8111H Gigabit Ethernet and USB 3.2 Gen1 provide connectivity for gaming, content creation and workstation builds.
Available at price 110.49 €: 10 pcs.
Total available for order: 29 pcs.
Warranty: 3 Years
SKU: 12256717
free shipment

Cheapest delivery:

Venipak Pickup LV, Venipak Locker LV

Pick-up points

Venipak Pickup LV

Venipak Locker LV

Cost

1.89 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
Monday {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
09.07.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.91 kg)
Parcel couriers
Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / Unisend LV / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
09.07.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.89 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 36.83 €

overpayment

0 €

All payment Methods:
Cash payment, Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 3.07 euros per month
Price for companies: 91.31€ Price is valid only for legal clients
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The GIGABYTE B860M E GEN5 is a micro-ATX motherboard designed for Intel Core Ultra (Series 2) processors with an LGA1851 socket. It supports DDR5 memory up to 128 GB with overclocking potential up to 8800 MHz (O.C.), and offers PCIe Gen5-ready platform features alongside two PCIe 4.0 x4 M.2 slots, SATA III with RAID 0/1/5/10 support, and integrated Gigabit Ethernet. The board targets gaming, content creation and workstation use while maintaining a compact micro-ATX form factor suitable for smaller builds.

Advantages

This motherboard combines modern connectivity and performance-oriented design: DDR5 memory support with high overclocking headroom, a hybrid 4+1+2 phase VRM for stable power delivery, and PCIe Gen5-capable expansion. Dual PCIe 4.0 M.2 connectors and SATA III RAID support enable flexible storage configurations, while integrated Gigabit Ethernet and multiple display outputs provide straightforward networking and video options. User-focused BIOS features and EZ-Latch PCIe slot design simplify setup and component changes.

Suitable for

  • Compact gaming systems based on Intel Core Ultra (Series 2)
  • Content creation and video editing workstations with fast NVMe storage
  • Office and productivity PCs requiring reliable Gigabit Ethernet connectivity
  • Small-form-factor builds that need modern I/O and DDR5 support

When it may not be suitable

This micro-ATX board may not be the best choice for users who need full-size ATX feature sets such as a large number of PCIe slots or extreme multi-GPU setups. It also does not provide built-in 2.5GbE or faster onboard networking, so users who require higher-than-gigabit LAN speeds will need an add-in card or external solution.

Key specifications

  • Form factor: micro-ATX
  • CPU socket: LGA1851 for Intel Core Ultra (Series 2)
  • Memory: 2 × DDR5 DIMM slots, up to 128 GB, supports overclocking up to 8800 MHz (O.C.)
  • VRM design: Hybrid 4+1+2 phases
  • Storage: 2 × PCIe 4.0 x4 M.2 connectors, SATA III ports with RAID 0/1/5/10 support; up to 6 storage drives supported
  • Expansion: PCIe Gen5-ready PCIe x16 slot with EZ-Latch quick release design
  • Audio: Realtek ALC897 7.1-channel audio codec
  • LAN: Gigabit Ethernet (Realtek RTL8111H)
  • Video outputs: HDMI, DisplayPort
  • BIOS: UEFI AMI (256 Mbit), ACPI version 5.0, Clear CMOS jumper

How to use

Install the CPU into the LGA1851 socket following Intel and GIGABYTE mounting instructions, populate up to two DDR5 DIMMs in the recommended slots, and secure the board into a compatible micro-ATX case. Connect storage devices to the M.2 slots or SATA ports and configure RAID in the UEFI BIOS if required. Use the BIOS or GIGABYTE software tools for fan control, multi-theme UI and to apply AI Perfdrive presets for optimized BIOS profiles. Ensure proper cooling and power connections to the VRM area when planning higher memory overclocks.

What to consider before purchase

  • Ensure your CPU is an Intel Core Ultra (Series 2) compatible with LGA1851.
  • Choose DDR5 memory kits that are supported and consider cooling if you plan to overclock to high frequencies.
  • Verify case compatibility with micro-ATX form factor and available clearance for expansion cards and coolers.
  • Plan network needs: onboard Gigabit Ethernet may be insufficient for users needing faster LAN throughput.

Usage recommendations

For balanced performance in gaming and content creation, use high-quality DDR5 memory modules rated for overclocking, install NVMe SSDs in the PCIe 4.0 M.2 slots for the OS and active projects, and keep VRM cooling adequate when pushing memory or CPU performance.

Specifications

Motherboard form factor:
Micro ATX
Motherboard chipset:
Intel B860
Component for:
PC
Processor socket:
LGA 1851 (Socket V1)
Number of memory slots:
2
Maximum internal memory:
128 GB
PCI Express x1 (Gen 3.x) slots:
1
Weight:
0.91 kg
Supported memory types:
DDR5-SDRAM
All features

Features

Motherboard form factor:
Micro ATX
Motherboard chipset:
Intel B860
Component for:
PC
Audio output channels:
7.1
Cooling type:
Passive
PC health monitoring:
FAN, Temperature, Voltage, Water cooling
Windows operating systems supported:
Windows 10 x64, Windows 11 x64
Motherboard chipset family:
Intel
Power source type:
ATX
Product colour:
Dark brown

Processor

Processor manufacturer:
Intel
Compatible processor series:
Intel Core Ultra (Series 2)
Processor socket:
LGA 1851 (Socket V1)

Memory

Number of memory slots:
2
Maximum internal memory:
128 GB
Supported memory types:
DDR5-SDRAM
Supported memory clock speeds:
7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600
Memory channels:
Dual-channel
Unbuffered memory:
Yes
Memory slots type:
DIMM
Supported memory clock speed (max):
8800 MHz
Maximum internal memory per slot:
64 GB
ECC сompatibility:
ECC & non-ECC

Expansion slots

PCI Express x1 (Gen 3.x) slots:
1
Number of M.2 (M) slots:
2
PCI Express x16 (Gen 5.x) slots:
1
1st M.2 largest key size:
2280
2nd M.2 largest key size:
2280
1st M.2 highest PCI Express generation:
4.0
2nd M.2 highest PCI Express generation:
4.0

Graphics

Maximum resolution:
4096 x 2160
Parallel processing technology support:
Not supported
DirectX version:
12.0
HDCP:
Yes
HDCP version:
2.3

Network

Ethernet LAN:
Yes
LAN controller:
Realtek RTL8111H
Wi-Fi:
No
Ethernet interface type:
Gigabit Ethernet

Internal I/O

USB 2.0 connectors:
2
S/PDIF out connector:
Yes
CPU fan connector:
Yes
ATX Power connector (24-pin):
Yes
Number of chassis fan connectors:
1
Front panel audio connector:
Yes
TPM connector:
Yes
EPS power connector (8-pin):
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors:
1
Number of SATA III connectors:
4
Serial port headers:
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors:
0
Front panel connector:
Yes
RGB LED pin header:
Yes
Number of RGB LED pin headers:
2
Number of CPU fan connectors:
2
Number of water pump connectors:
2
Number of EPS power connectors (8-pin):
1

Rear panel I/O ports

PS/2 ports quantity:
1
Line-in:
Yes
USB 2.0 ports quantity:
2
Ethernet LAN (RJ-45) ports:
1
Headphone outputs:
1
Microphone in:
Yes
VGA (D-Sub) ports quantity:
0
DVI-D ports quantity:
0
HDMI ports quantity:
1
HDMI version:
2.1
DisplayPorts quantity:
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity:
0

Storage controllers

RAID levels:
1, 5, 10
Supported storage drive types:
HDD & SSD
RAID support:
Yes
Number of storage drives supported:
6
Supported storage drive interfaces:
M.2, PCI Express 4.0, SATA III

Technical details

Warranty period:
3 year(s)

BIOS

BIOS memory size:
256 Mbit
BIOS type:
UEFI AMI
ACPI version:
5.0
Clear CMOS jumper:
Yes
Desktop Management Interface (DMI) version:
2.7
System Management BIOS (SMBIOS) version:
2.7

Weight & dimensions

Width:
244 mm
Depth:
215 mm

Other features

Number of HDDs supported:
4
Weight:
0.91 kg
Package weight:
988 g
Height:
35 mm
DisplayPort version:
2.1
Audio chip:
Realtek ALC897

Packaging content

Bundled software:
Norton®Internet Security (OEM version)
Batteries included:
Yes
Screws included:
Yes

Packaging data

Package depth:
265 mm
Package height:
54 mm
Package width:
265 mm

Battery

Battery technology:
Lithium-Manganese Dioxide (LiMnO2)
Battery type:
CR2032
Battery capacity:
220 mAh
Number of battery cells:
1
Battery weight:
3 g
Lithium weight per battery:
0.07 g

Logistics data

Country of origin:
China
Products per shipping (inner) case:
1 pc(s)
