GIGABYTE P550B 550 W ATX power supply

Name: Power supply unit GIGABYTE P550B GP-P550B
Brand: GIGABYTE
SKU: 3553756
Price: 43.99 EUR
Availability: InStock

Dreame – powerful cleaning with ease

Dreame vacuums for fast and efficient cleaning!

Power supply unit GIGABYTE P550B ATX 550 W, 80 PLUS Bronze, 120 mm fan, 20+4 pin, 6×SATA, 2×PCIe

Fast delivery available

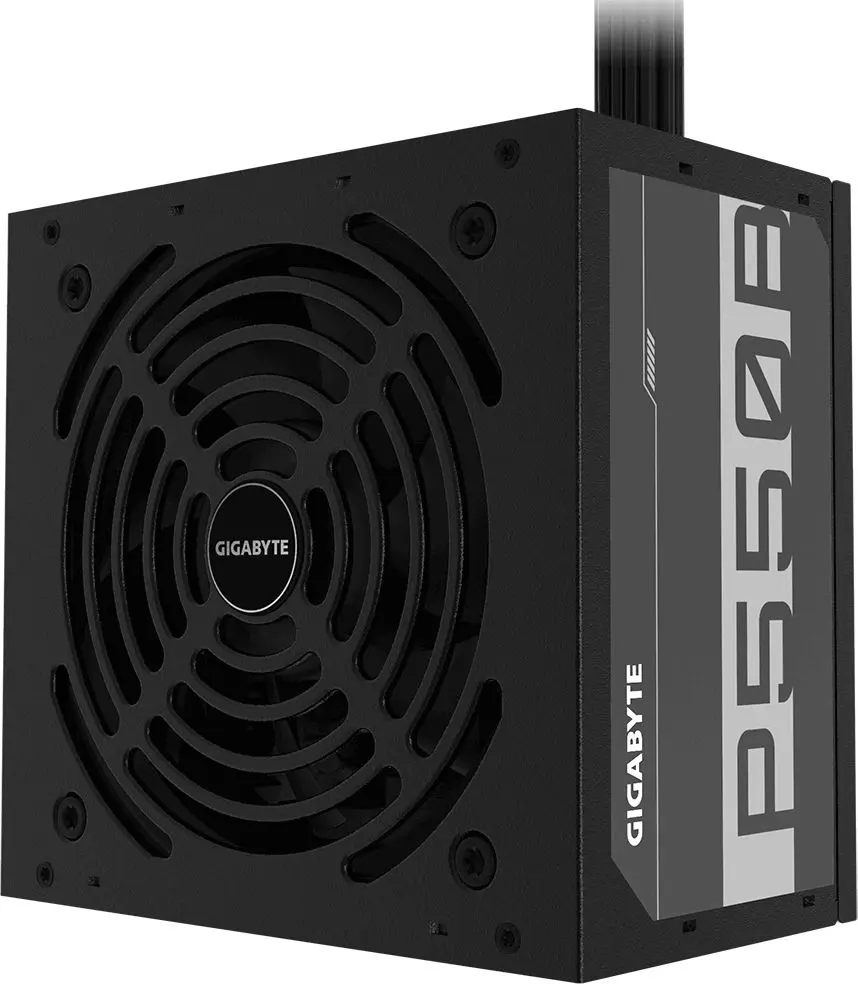

GIGABYTE P550B 550 W ATX power supply Photo 1

GIGABYTE P550B 550 W ATX power supply Photo 2

GIGABYTE P550B 550 W ATX power supply Photo 3

GIGABYTE P550B 550 W ATX power supply Photo 4

Keep track of price changes You keep track of price changes

Scan qr code below, or type in manually: {{secretKey}}

Forgot password? Registration

Short description

GIGABYTE P550B is an ATX power supply delivering 550 W total power with 80 PLUS Bronze efficiency and active PFC (power factor 0.9). It features a 120 mm HDB fan (top), non-modular cabling, 20+4 pin motherboard connector, 4+4 CPU connector, two 6+2 PCIe connectors, six SATA and three Molex ports. Designed for desktop PCs, it offers multiple protections, 16 ms hold-up time and MTBF 100,000 h for reliable system operation and easy component connectivity.

Available at price 43.99 €: 100 pcs.

Total available for order: 471 pcs.

Warranty: 2 Years

SKU: 3553756

Learn more

Deliver the order:

{{ userCountryName }}

to the Customer Service Center at Kengaraga 2b, Riga

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

All delivery methods Hide details

Customer service center

2b. Kengaraga str., Riga, Latvia, LV-1063

30.06.2026 {{selectedOffer.officeDeliveryString}}

free

Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!

03.07.2026 {{selectedOffer.courierDeliveryString}}

From 4.99 € (Weight: 2.02 kg)

Parcel couriers

Latvijas Pasts pakomāts / Unisend / DPD Paku skapis / Omniva / Venipak Pickup / Venipak Locker / Latvijas Pasts nodaļa

03.07.2026 {{selectedOffer.parcelStationDeliveryString}}

From 1.99 €

More about delivery methods

Payment Methods:

Bank transfer, Bank cards on-line, Apple Pay, Google Pay

More about payment methods

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The power supply is 80 PLUS Bronze certified, delivering up to 85% efficiency at 50% load to reduce energy waste, lower heat generation and decrease fan noise. It uses a single +12V rail for stable power delivery and compatibility with a wide range of PC hardware. The unit features flat cables to reduce clutter inside the case and improve airflow, and a 120mm hydraulic bearing fan with automatic speed control for balanced cooling and quiet operation. Multiple built-in protections and international safety certifications ensure stable and safe system operation.

Advantages

80 PLUS Bronze certification improves energy efficiency and reduces operating temperature. Flat cables simplify cable management and enhance internal airflow. The 120mm hydraulic bearing fan offers quiet operation and longer service life due to its robust bearing design. A single +12V rail provides consistent power output and easier cable connections. Comprehensive protection circuits (OCP, OTP, OVP, OPP, UVP, SCP) increase system reliability.

Key specifications

Certification: 80 PLUS Bronze (≈85% efficiency at 50% load)
Fan: 120 mm Silent Hydraulic Bearing (automatic speed control)
Cables: Flat cable design for improved airflow
Output topology: Single +12V rail
Protections: OCP, OTP, OVP, OPP, UVP, SCP
Designed for compatibility with common PC hardware and overclocking

How to use

Install the power supply into the PC case following the case and PSU mounting guidelines, connect the main 24‑pin ATX and 4/8‑pin CPU power connectors, and attach PCIe, SATA and peripheral connectors as required. Route the flat cables to minimize obstruction to fans and airflow. After connecting components, power on the system and verify stable operation. The fan speed will adjust automatically based on detected power and temperature conditions.

Recommendations

Use this PSU in cases with adequate ventilation and ensure cables are routed to maintain clear airflow paths. Verify that the unit’s wattage meets the total system power requirements, and keep drivers and firmware up to date for overall system stability.

Specifications

Total power:: 550 W
Efficiency:: 85 %
Motherboard power connector:: 20+4 pin ATX
80 PLUS certification:: 80 PLUS Bronze
Fan diameter:: 120 mm
Product colour:: Black

All features

Power

Total power:: 550 W
Efficiency:: 85 %
Power Factor Correction (PFC) type:: Active
Hold time:: 16 ms
Power protection features:: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power factor:: 0.9
Combined power (+3.3V):: 108 W
Combined power (+12V):: 522 W
Combined power (+5V):: 108 W
Combined power (-12V):: 3.6 W
Combined power (+5Vsb):: 15 W
Max output current (+3.3V):: 18 A
Max output current (+12V):: 43.5 A
Max output current (+5V):: 15 A
Max output current (-12V):: 0.3 A
Max output current (+5Vsb):: 3 A
Input current:: 8 - 4
AC input frequency:: 50 - 60
AC input voltage:: 100 - 240

Ports & interfaces

Motherboard power connector:: 20+4 pin ATX
Floppy disk drive connector:: Yes
PCI Express connector:: Yes
Floppy drive power connector:: 1
Number of SATA power connectors:: 6
Peripheral (Molex) power connectors (4-pin):: 3
ATX power connector (20+4 pin):: Yes
CPU power connector (4+4 pin):: Yes
PCI Express power connectors (6+2 pin):: 2
Cabling type:: Non-Modular
Motherboard power cable length:: 550 mm
SATA power cable length:: 500
CPU power cable length:: 600 mm
Peripheral (Molex) power cable length:: 500
PCI Express power cable length:: 550 mm

Performance

Purpose:: PC
80 PLUS certification:: 80 PLUS Bronze
Mean time between failures (MTBF):: 100000 h
Bearing technology:: HDB
ATX version:: 2.31
Power supply unit (PSU) form factor:: ATX

Design

Fan diameter:: 120 mm
Number of fans:: 1 fan(s)
Cooling type:: Active
Fan location:: Top
On/off switch:: Yes
Product colour:: Black

Weight & dimensions

Height:: 86 mm
Width:: 150 mm
Depth:: 140 mm

Logistics data

Harmonized System (HS) code:: 84733020
