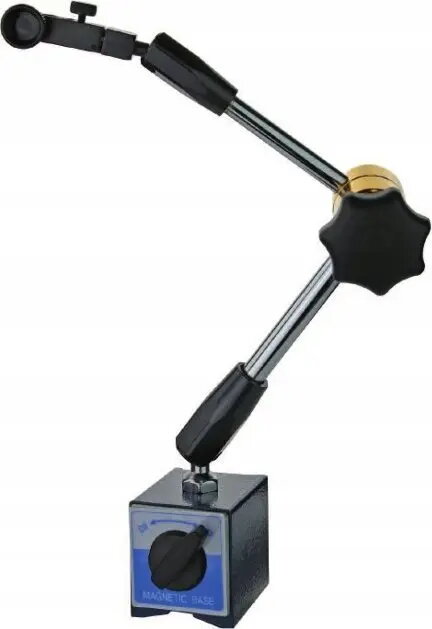

Gimex Magnetic Base for Dial Indicator, 340 mm

The Gimex magnetic base with a 340 mm arm length is a high-precision tool engineered for the stable and secure mounting of dial indicators. Designed for professional use in machining, engineering, and quality control environments, this base provides a reliable foundation for accurate measurement tasks. Its robust construction ensures that the measuring instrument remains firmly in place during operation, minimizing vibrations and errors.

Advantages

The primary advantage of this magnetic base is its powerful magnetic force, which allows for secure attachment to any flat or curved ferrous metal surface. The 340 mm arm offers significant reach and flexibility, enabling the user to position the dial indicator at the exact angle and height required for complex measurements. The fine adjustment mechanism ensures that the probe can be set with high precision, which is critical for maintaining tight tolerances in industrial metrology.

Suitable for

• Precision measurement in machining and milling
• Quality control and inspection processes
• Setting up workpieces on lathes and drill presses
• Industrial metrology and laboratory testing

When it may not be suitable

This magnetic base is not suitable for use on non-ferrous materials such as aluminum, plastic, or wood, as the magnetic force will not engage. It is also not recommended for environments with extreme heat or heavy debris that could interfere with the magnetic contact surface.

Key specifications

• Arm length: 340 mm
• Base type: Magnetic
• Compatibility: Standard dial indicators
• Application: Precision measurement and alignment

How to use

To use the Gimex magnetic base, place the magnetic foot on a clean, flat ferrous metal surface. Activate the magnetic switch to lock the base firmly in position. Adjust the articulated arm to the desired orientation and secure the locking knobs to maintain the position. Attach your dial indicator to the mounting point at the end of the arm and use the fine adjustment feature to calibrate the probe against the workpiece surface.

What to consider before purchase

• Ensure the mounting surface is made of ferrous metal
• Verify the compatibility of your dial indicator mounting stem
• Assess if the 340 mm reach is sufficient for your specific machinery

Usage recommendations

Always clean the magnetic base and the mounting surface before use to ensure maximum holding power and measurement accuracy. Avoid dropping the unit to prevent damage to the magnetic mechanism or the precision joints.
