TV mount Goobay 49715

Name: TV mount Goobay 49715 42 49715
Brand: GOOBAY
SKU: 7287337
Price: 18.49 EUR
Availability: OutOfStock

Shop for gifts early

Save time and money with our discounts!

TV mount Goobay 49715 42 inch Black 20 kg capacity

Short description

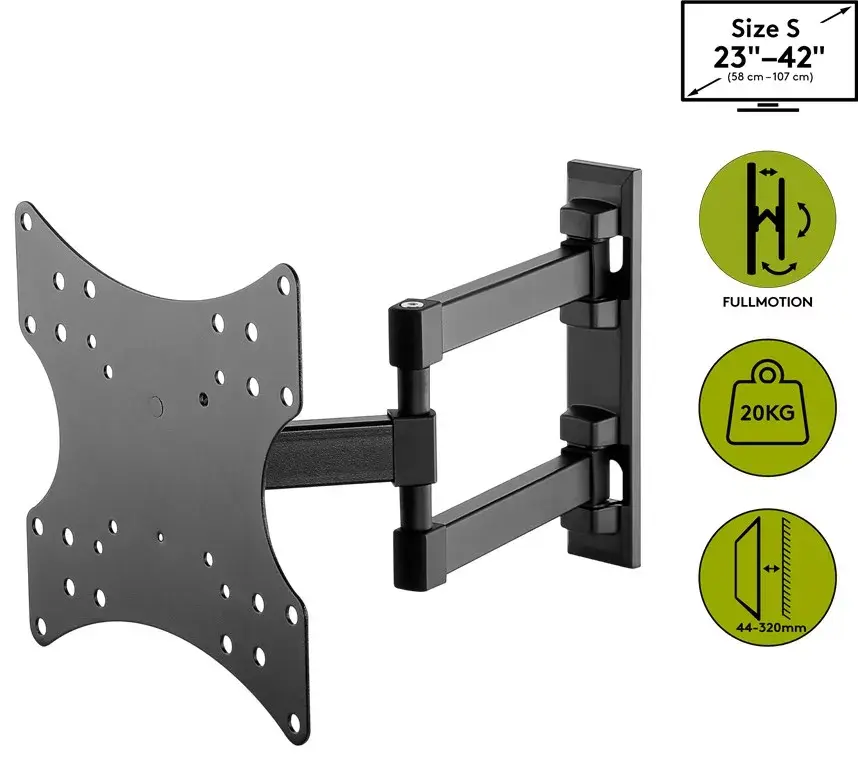

The Goobay 49715 TV mount supports screens from 23 to 42 inches with a maximum weight of 20 kg. It features a tilt angle range of -10 to 3 degrees and a swivel angle range of -90 to 90 degrees. The mount has a minimum VESA mount of 75 x 75 mm and a maximum of 200 x 200 mm, allowing for versatile installation options. The distance from the wall can be adjusted between 32 cm and 4.4 cm, making it suitable for various setups.

Warranty: 2 Years

SKU: 7287337

Information regarding the items availability for purchase will be posted on this site

Item cost information will be published on this site

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

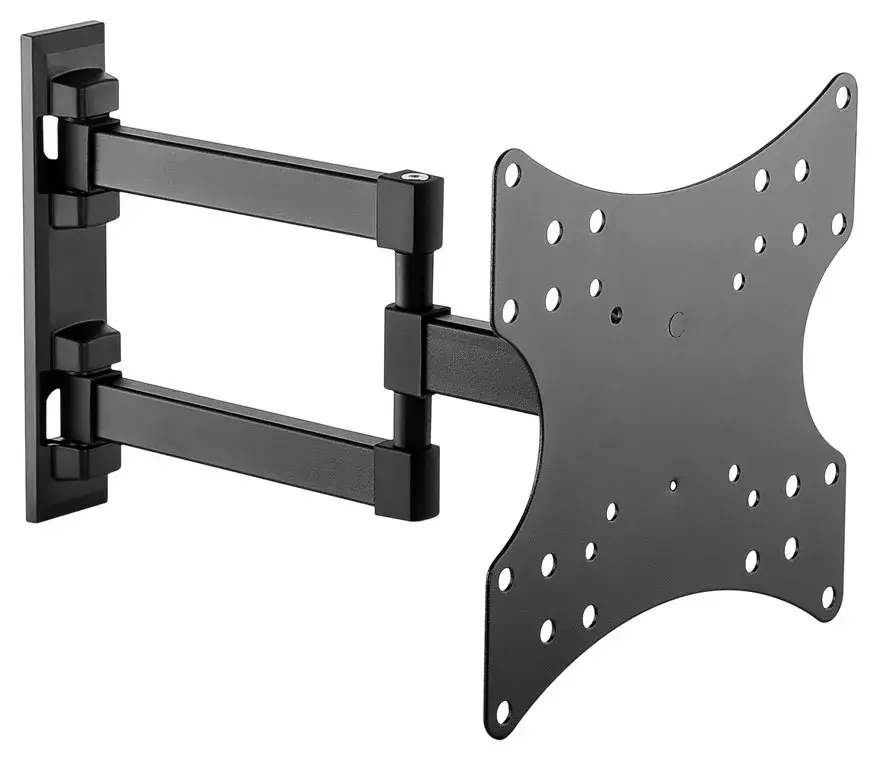

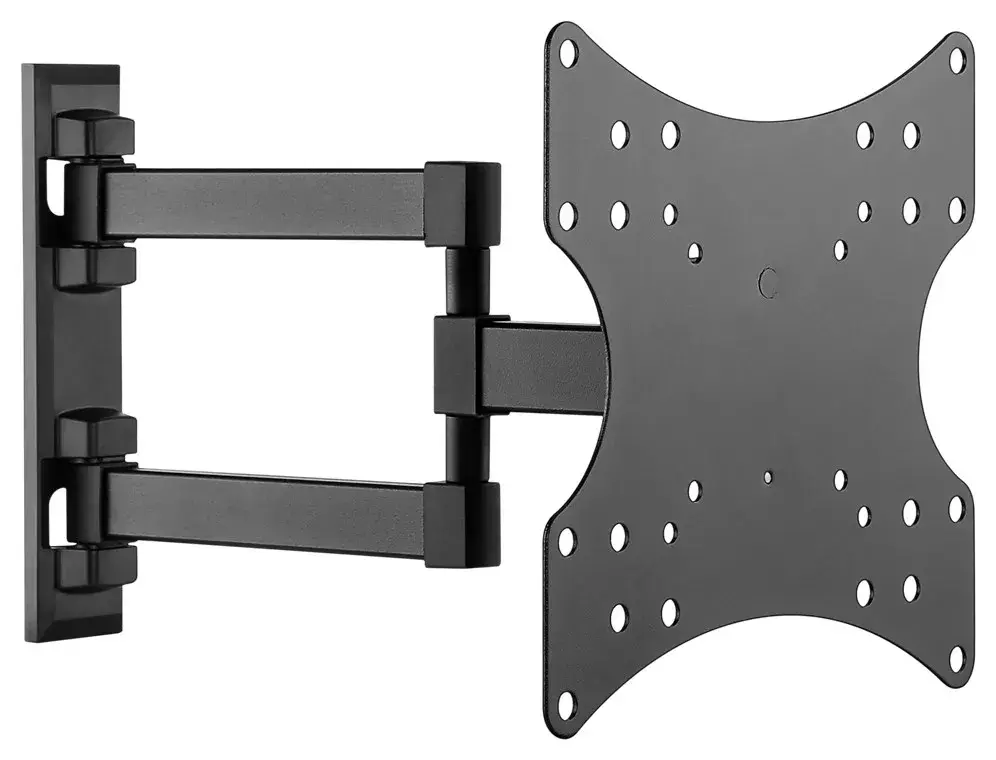

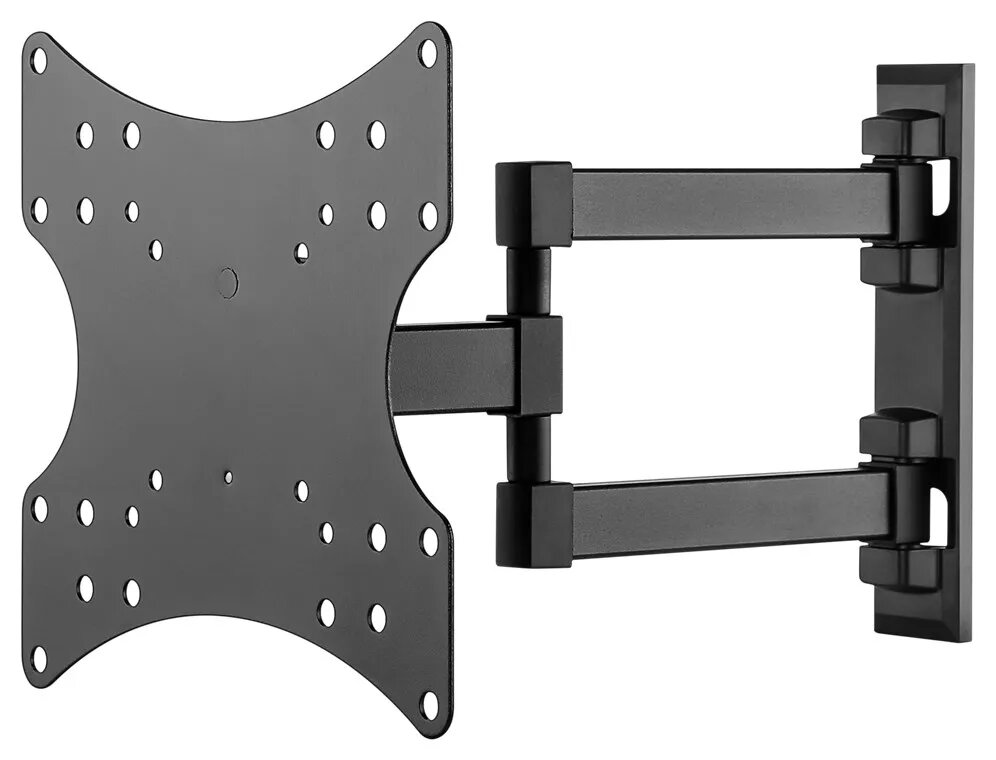

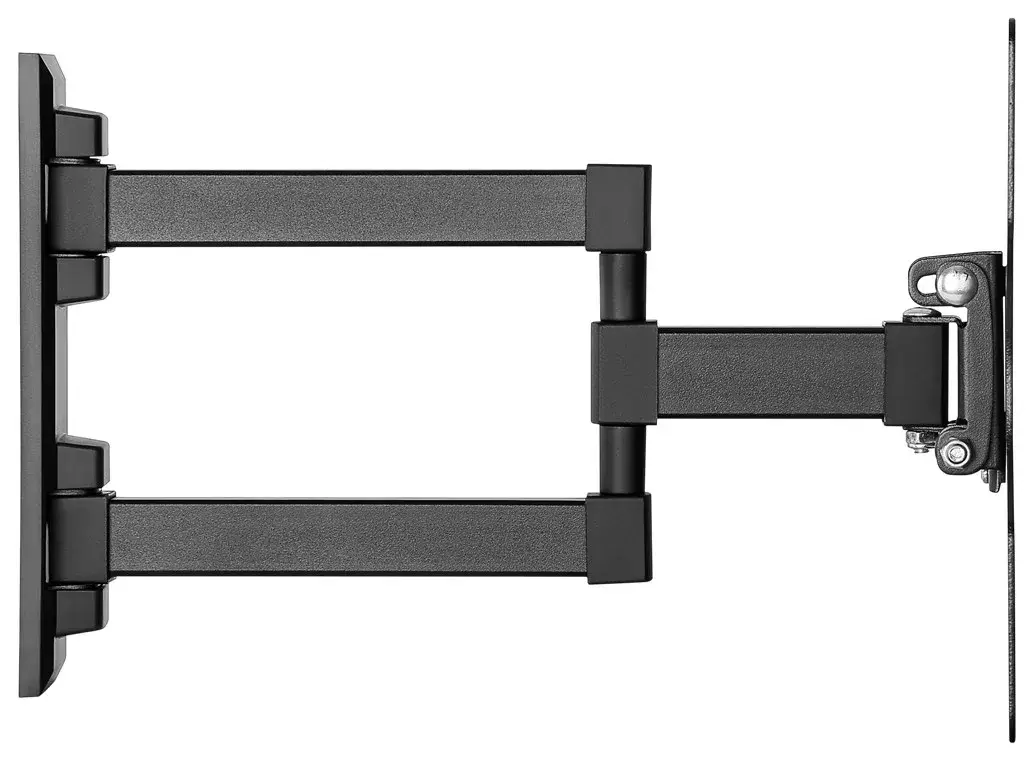

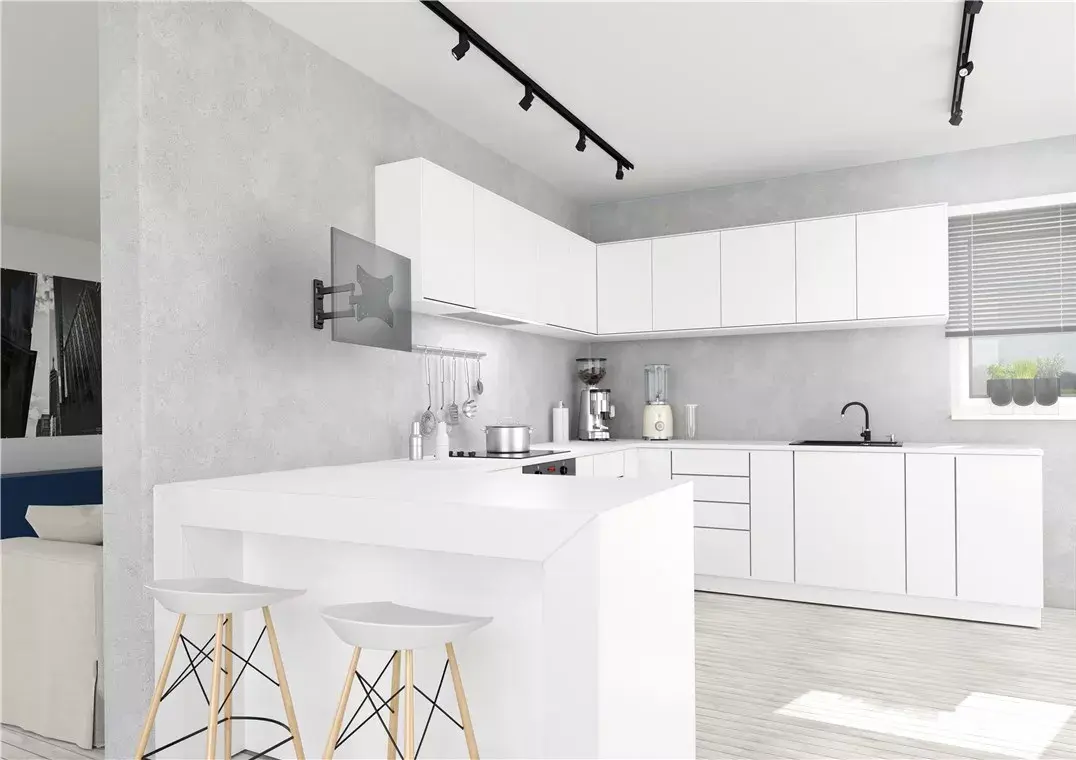

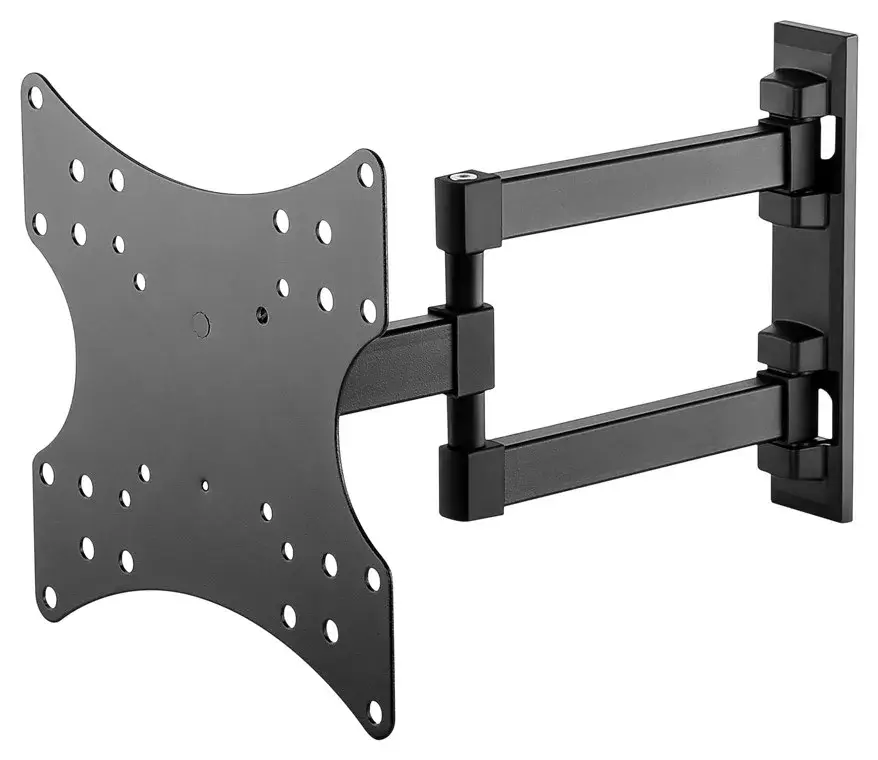

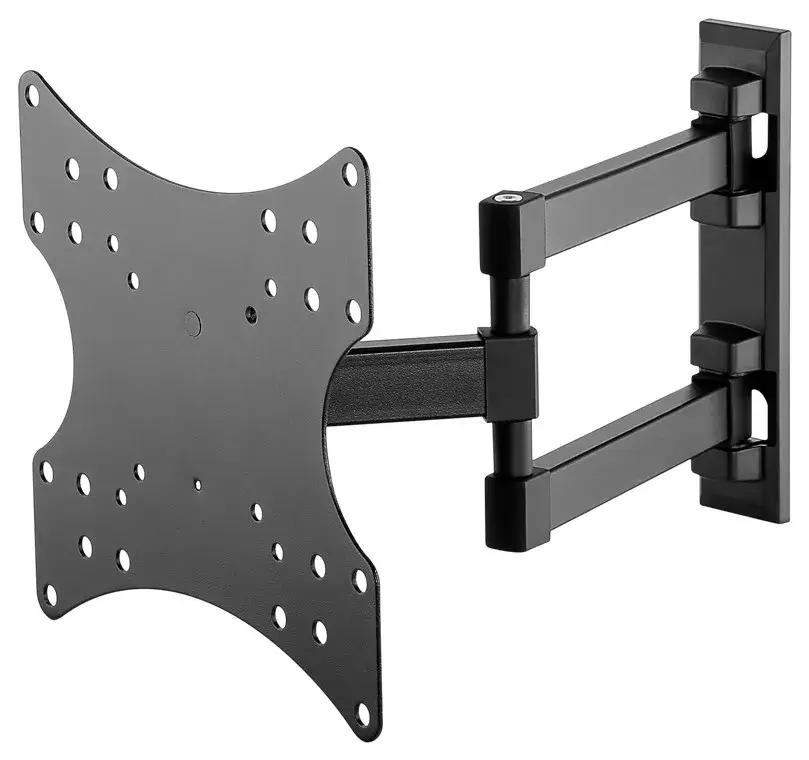

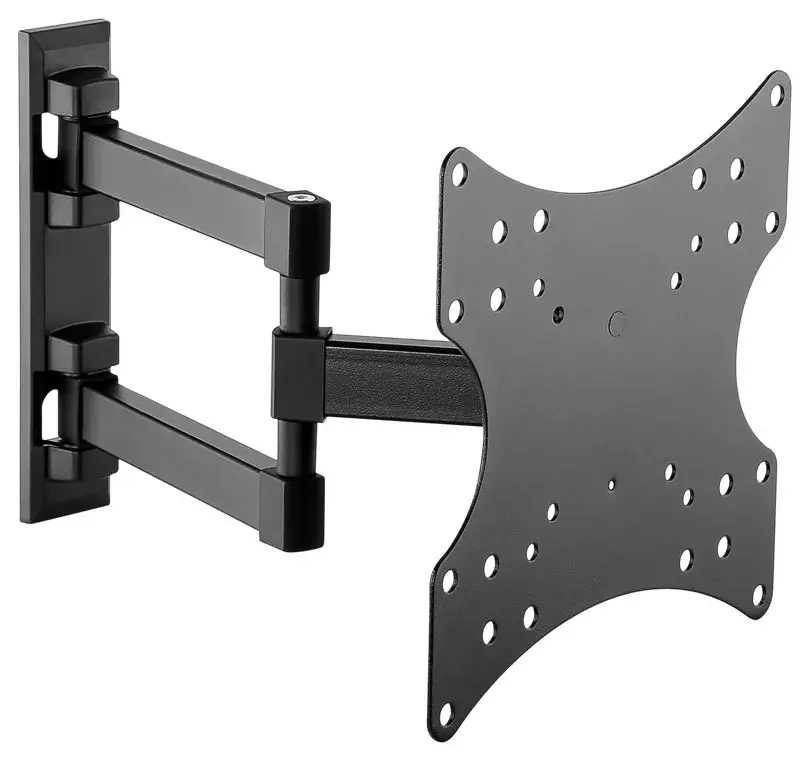

The Goobay 49715 Full Motion TV mount fits most 23 to 42 inch (58–107 cm) TVs with a maximum weight of 20 kg. It offers a fully movable double arm joint that enables tilt, swivel, extension and leveling to position the TV at the desired viewing angle. The mount supports VESA patterns from 75 x 75 mm up to 200 x 200 mm and has an adjustable distance from the wall between 4.4 cm and 32 cm, making it suitable for installations in niches or wall units such as kitchens.

Advantages

The mount provides flexible viewing by allowing a tilt range of -10° to 3° and a swivel range of -90° to 90°, enabling comfortable viewing from different seats. Tool-free adjustments after installation simplify leveling and fine positioning. With a compact folded depth and extended reach, the bracket is space-efficient while offering wide adjustability. It supports single displays up to 42" and a maximum load of 20 kg.

Suitable for

Mounting 23–42 inch (58–107 cm) LED/LCD TVs
Rooms where tilt and swivel adjustments are required (living rooms, kitchens, bedrooms)
Installations in wall units or small niches where space-saving and extension are needed

Key specifications

Compatible screen size: up to 42"
Maximum weight capacity: 20 kg
VESA compatibility: 75 x 75 mm up to 200 x 200 mm

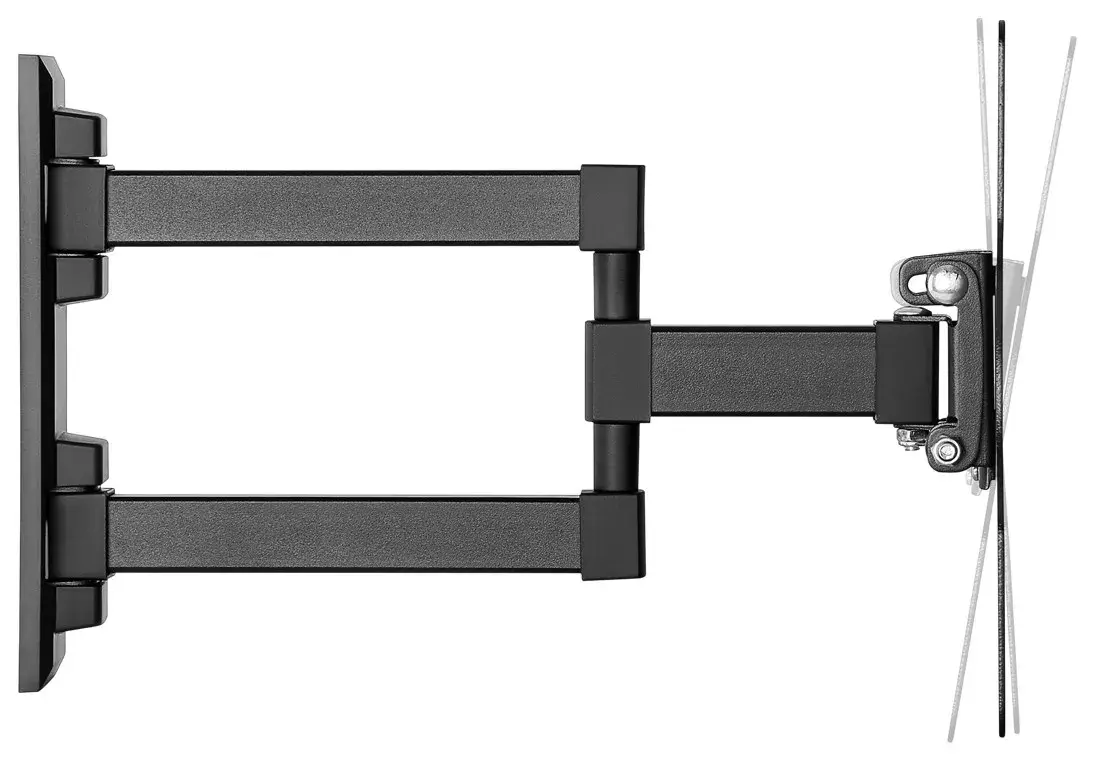

Tilt range: -10° to 3°
Swivel range: -90° to 90°
Distance from wall: 4.4 cm (min) to 32 cm (max)
Product colour: Black
Product weight: 1.4 kg
Number of displays supported: 1

How to use

Fix the wall plate to a suitable load-bearing surface following the included mounting template and local building recommendations. Attach the matching VESA plate to the back of the TV (75 x 75 mm to 200 x 200 mm). Hang the TV on the mount, then secure the fastening screws. Use the arm’s tilt, swivel and extension functions to position the screen at the preferred viewing angle. Perform final leveling using the mount’s adjustment features to ensure the TV is straight.

Usage recommendations

Ensure the wall and fixings can safely support the combined weight of the mount and TV (up to 20 kg). Use appropriate screws and anchors for the wall material, and follow the manufacturer’s installation instructions. Do not exceed the specified VESA or weight limits.

Specifications

Maximum VESA mount:: 200 x 200
Minimum VESA mount:: 75 x 75
Maximum screen size: The maximum screen size which can be used with this product.: 42 "
Mounting type: Type of mounting e.g. wall mounting.: Wall
Number of displays supported: The number of displays that can be used with this product.: 1

All features

Technical details

Quantity per pack:: 1 pc(s)

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.: 1.4 kg
Height: The measurement of the product from head to foot or from base to top.: 220 mm
Depth (max):: 320 mm
Width: The measurement or extent of something from side to side.: 220 mm

Ergonomics

Distance to the wall (max):: 44 mm
Distance to the wall (min):: 320 mm
Swivel angle range:: -90 - 90

Features

Tilt adjustment: The tilt, which means the angle at which the device is pointing (up or down), can be changed.: Yes
Tilt angle range:: -10 - 3
Product colour: The colour e.g. red, blue, green, black, white.: Black
Maximum weight capacity: The maximum weight that the product is designed to hold/store.: 20 kg

Design

Housing material: What the casing of the product is made of.: Steel

Mounting

Maximum VESA mount:: 200 x 200
Minimum VESA mount:: 75 x 75
Panel mounting interface: The product can be used wih VESA mounting interfaces.: 75 x 75, 200 x 200, 200 x 100, 150 x 150, 150 x 100, 100 x 150, 100 x 100
Maximum screen size: The maximum screen size which can be used with this product.: 42 "
Minimum screen size: The minimum screen size which can be used with this product.: 23 "
Mounting type: Type of mounting e.g. wall mounting.: Wall
Number of displays supported: The number of displays that can be used with this product.: 1

Hide Show all

Instructions

mmo_95831124_1682415070_8506_6402.pdf

goobay-49715-7287337.pdf

goobay-49715-7287337(1).pdf

Description

Instructions

mmo_95831124_1682415070_8506_6402.pdf

goobay-49715-7287337.pdf

goobay-49715-7287337(1).pdf

Machine translation. Load original

Show details Hide details

{{highlightedFeature.featureTitle}}:

{{getProductFeatureValueById(product, highlightedFeature.featureId)}}

Customer reviews

Show all reviews

Customer questions

FAQ

What payment options are available?

AiO.lv offers several payment methods: Bank transfer. All transactions are 100% secure and encrypted.

Can this product be purchased for a company (with VAT)?

Yes. AiO.lv works with legal entities in Latvia and across Europe. The product price already includes VAT. For certain product categories, as well as for companies from other EU countries with a valid VAT number, a 0% VAT rate may apply. We issue the invoice immediately after the order is placed, support electronic BIS invoices, and automatically generate all necessary accounting documents. You can complete the purchase for a company online — simply select the company profile and choose bank transfer as the payment method during checkout.

What is the warranty period?

All GOOBAY products come with an official 2 Years warranty. It covers all manufacturing defects and malfunctions that may occur during use. The warranty is valid at all authorized GOOBAY service centers and through AiO.lv

Can the product be returned after purchase?

Yes, you can return the product within 14 days of purchase if you bought it as a consumer (not a legal entity). Returns are possible without giving any reason — the main condition is that the product retains its original appearance and full set of accessories. We will make the process as simple and convenient as possible: just contact our customer support team, and we will help you arrange the return.

Where should I contact for warranty service?

For warranty-related questions you can contact the AiO.lv (SIA VSPRO) customer support team. We will assist with consultation, warranty claim processing, and coordination with certified service centers.

How can I tell if this product suits my needs?

When making a choice, we recommend paying attention to the key features: maximum vesa mount, minimum vesa mount, maximum screen size, mounting type, number of displays supported, compatibility with your devices or usage conditions, material quality, functionality, and warranty terms. These characteristics will help you determine how well the model meets your needs.

Where can I download the instructions for TV mount Goobay 49715?

You can download the instructions in PDF format from the “Instructions” section on the product description page. The file contains complete information about installation, setup, and usage.
