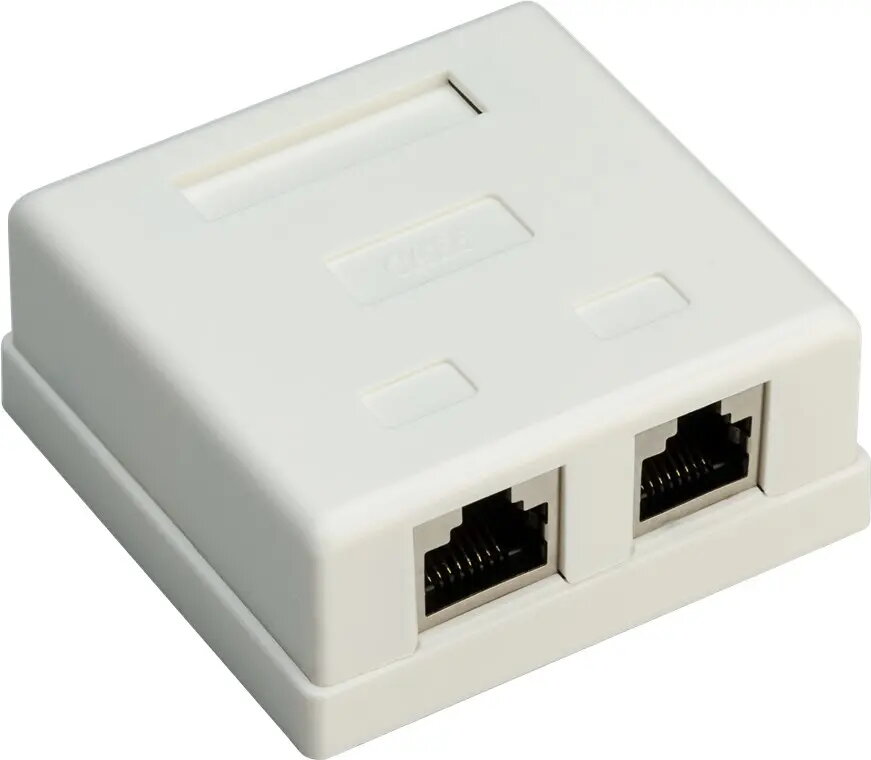

Outlet box GOOBAY 77635 for RJ-45 connector, surface-mounted, white

GOOBAY 77635 outlet box for RJ-45 connectors is a surface-mounted white housing that provides a neat mounting point for two Ethernet ports in locations without recessed installation. Designed to accommodate two RJ-45 female STP Cat6 jacks, the box supports cables with an outer diameter up to 7.0 mm and conductor sizes AWG 22–24. The compact surface box includes a label field and follows TIA-568B assignment for straightforward LAN wiring and relocation of network outlets in offices, homes and small server areas.

Advantages

The surface-mounted design allows fast installation on existing walls where flush boxes are not available, avoiding major wall work. Tool-free internal clamp connectors simplify termination of the two RJ-45 jacks while maintaining shielding continuity for STP Cat6 connections. The built-in label field and two-port layout provide clear identification and tidy organization of local area network endpoints.

Suitable for

• Adding or relocating LAN ports in offices and residential rooms
• Installing wall-mounted Ethernet outlets for desktop PCs, IP phones or access points
• Small server or network distribution areas where surface mounting is preferred
• Cat6 STP installations using AWG 22–24 solid or stranded cable

Key specifications

• Compatibility: 2x RJ-45 female STP, Cat6
• Supported frequency: up to 250 MHz
• Conductor size: AWG 22–24
• Cable outer diameter: up to 7.0 mm
• Ports: 2 RJ-45 sockets
• Wiring standard: TIA-568B assignment
• Color: white

How to use

Mount the GOOBAY 77635 outlet box on a clean, flat wall surface using appropriate screws and anchors for the wall material. Strip the outer sheath and prepare the cable pairs following standard Cat6 practices, then insert each cable into the tool-free clamp connector and terminate according to the TIA-568B color code. Fit the RJ-45 female STP jacks into the slots, secure the cover, and label each port using the built-in label field. Verify continuity and shielding after termination with a network tester before connecting active equipment.

Usage recommendations

Use shielded Cat6 cables and ensure proper grounding of the STP connectors to maintain shielding performance. Avoid sharp bends and keep data cables separated from mains power lines to reduce interference. For installations requiring multiple outlets or concealed wiring, consider in-wall mounting alternatives and consult local cabling standards.
