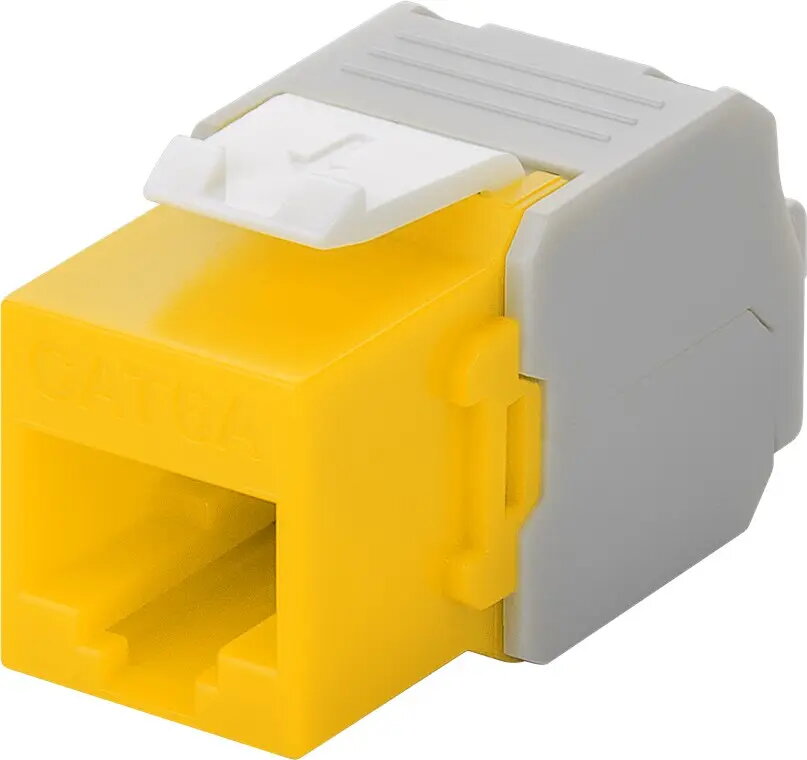

Keystone module RJ45 CAT 6A UTP, GOOBAY — flat construction, yellow, width 16.5 mm

GOOBAY Keystone module RJ45 CAT 6A UTP is a single-port, flat construction network connector designed for CAT 6A installations. The yellow plastic housing and RJ‑45 interface provide a compact 16.5 mm wide solution for termination of UTP copper Ethernet cabling in wall plates, patch panels and modular receptacles. The module is intended for structured cabling tasks, small network repairs and installations where a keystone-format jack is required.

Advantages

The flat construction and standardised keystone format enable easy snap‑in installation into compatible faceplates and patch panels. The CAT 6A UTP design supports higher bandwidths compared with lower categories while remaining compatible with common TIA 568A/B wiring schemes. The connector accepts solid conductors in the 22–26 AWG range and is suitable for use with PoE systems up to PoE+ (IEEE 802.3at), making it versatile for data and powered devices.

Suitable for

• Termination of UTP copper Ethernet cables in residential and commercial wall sockets
• Modular patch panels and keystone faceplates in structured cabling
• Small repairs or upgrades of network outlets and local area networks
• Installations requiring CAT 6A performance up to 500 MHz

Key specifications

• Connector type: RJ‑45 female keystone module
• Cable category: CAT 6A UTP
• Bandwidth: up to 500 MHz
• Wire gauge compatibility: solid conductors 0.48–0.65 mm (AWG 22–26)
• PoE support: compatible with PoE and PoE+ (IEEE 802.3at)
• Construction: flat keystone format, snap‑in installation
• Housing colour: yellow
• Module width: 16.5 mm

How to use

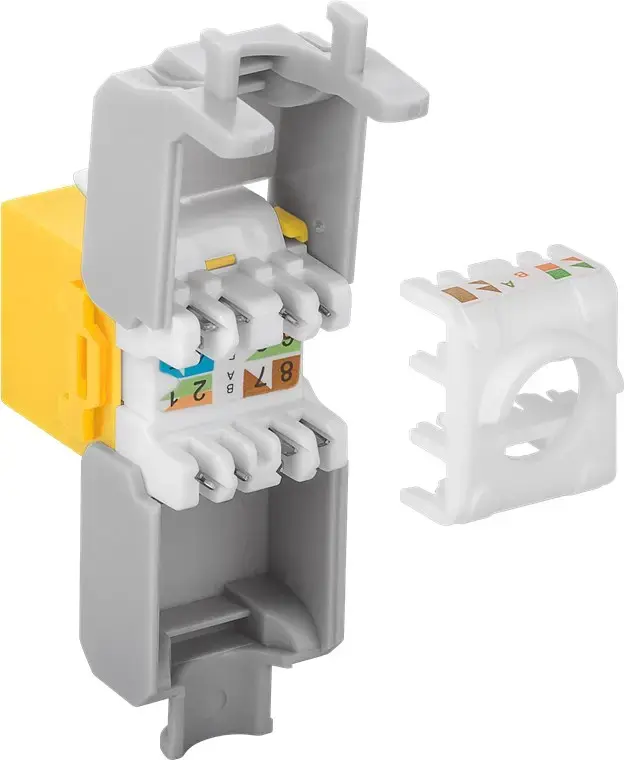

Prepare the UTP cable by stripping the outer sheath to expose the individual conductors, keeping required untwisted lengths minimal according to installation standards. Terminate the individual wires into the keystone jack following the TIA 568A or 568B colour code, verify correct seating of each conductor and punch down or press according to the connector's termination method. Snap the keystone module into a compatible faceplate or patch panel opening and secure the module if the housing or plate design requires it. Test the completed connection with a network cable tester to confirm continuity and correct pairing.

Usage recommendations

Use this keystone module in installations that require CAT 6A performance and PoE compatibility. Maintain manufacturer‑recommended bend radii and limit untwisting of pairs to preserve signal integrity. For permanent structured cabling, follow local installation standards and verify connections with appropriate testing tools after termination.
