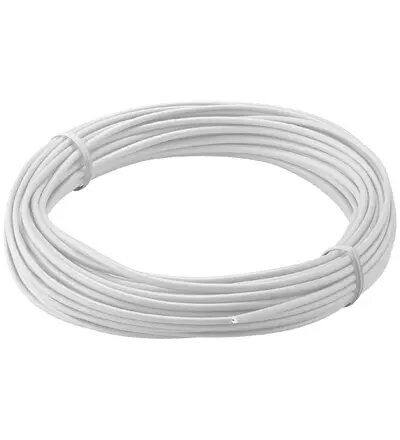

Insulated copper wire GOOBAY RB55046 — 10 m, 0.14 mm², white, Ø 1.1 mm

Insulated copper wire GOOBAY RB55046 — 10 m, 0.14 mm², white, Ø 1.1 mm is a single-core, stranded conductor designed for low-voltage electrical tasks. The wire features a flexible copper strand construction with a PVC insulation in white, offering an outer diameter of approximately 1.1 mm and a conductor cross-section of 0.14 mm² (AWG 26). It is supplied in a 10 m length and is intended for internal appliance connections, electronics, model making and general wiring where a slim, easy-to-route flexible conductor is required.

Advantages

The stranded copper core (18 x 0.1 mm) provides good flexibility for routing through tight spaces and repeated bending, while the PVC insulation ensures reliable electrical isolation and resistance to common environmental changes. The wire is suitable for soldering and for termination with wire end ferrules, spring or screw terminals. Its small diameter and single-colour insulation make it convenient for tidy internal wiring and prototyping applications.

Suitable for

• Low-voltage wiring inside household appliances and measuring instruments
• Electronics, prototypes and jumper connections on breadboards
• Model making and model railway electrical connections
• Connections to screw terminals, spring terminals and wire ferrules

Key specifications

• Conductor material: stranded copper (Cu), 18 x 0.1 mm
• Conductor cross-section: 0.14 mm² (approx. AWG 26)
• Outer diameter (including insulation): approx. 1.1 mm
• Insulation material: PVC
• Colour: white
• Length: 10 m
• Suitable for soldering and termination with ferrules, spring and screw terminals
• Temperature resistance: suitable for typical heat and cold exposure in appliance and model applications

How to use

Cut the required length from the 10 m spool and strip the insulation to expose the stranded copper conductor. For secure connections, twist the strands before soldering or crimping, or use appropriate wire end ferrules when connecting to screw or spring terminals. Route the wire to avoid sharp edges and secure it with clips or ties where necessary to prevent mechanical strain. Observe polarity and insulation requirements for low-voltage circuits and ensure connections are insulated and strain-relieved inside enclosures.

Usage recommendations

Use this GOOBAY insulated wire for low-voltage DC and signal applications. Avoid exposing the PVC insulation to open flames or solvents and do not use this wire for mains wiring unless confirmed suitable by applicable local regulations and amperage calculations. Choose wire end ferrules for reliable screw terminal connections and check that terminal clamps accept the wire diameter and ferrule size.
