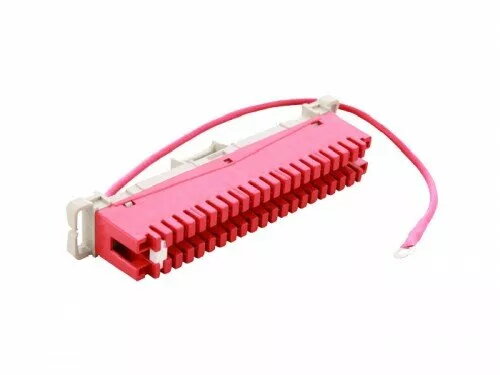

Grounding module LSA-EA 10 pairs, LSA brand, model LSA-EA, 10-pair grounding connection

The grounding module LSA-EA 10 pairs by LSA is a compact earthing connection module designed for telecommunication and network distribution frames that use LSA termination systems. It organizes protective earth connections for up to ten pairs in a single module, enabling tidy routing of grounding conductors in racks or cabinets. The module is intended to simplify the grounding of subscriber lines, patch panels and cross-connect points while maintaining reliable contact and stable earthing paths.

Advantages

The module consolidates multiple protective earth conductors into a single, compact component that fits LSA-compatible termination layouts. Its design supports consistent mechanical contact and reduces the number of separate grounding points required, which helps maintain an organized distribution frame. Installation and maintenance are streamlined because the module groups pairs and provides clear termination points for grounding conductors without the need for additional adapters or complex wiring arrangements.

Suitable for

• Grounding subscriber lines in telecommunication distribution frames
• Earthing patch panels and cross-connects in racks and cabinets
• Organized protective earth routing in central offices and equipment rooms
• Retrofit grounding of existing LSA termination blocks

Key specifications

• Number of pairs: 10 pairs
• Termination system compatibility: LSA-style termination blocks
• Function: Protective earth (ground) distribution for multiple pairs
• Mounting: Suitable for standard rack and cabinet frames using compatible LSA panels
• Physical form factor: Compact module designed for multi-pair routing

How to use

Mount the grounding module in a compatible LSA panel or frame location within the rack or cabinet so that the module aligns with existing termination points. Terminate each pair to the module following the LSA termination procedure and secure the protective earth conductor to the module’s grounding point. Verify mechanical stability of each connection and ensure continuity to the main earthing bar or cabinet ground. Perform electrical checks for continuity and correct potential before returning the system to service.

Usage recommendations

Use appropriate conductor sizes and follow local electrical and telecommunication grounding standards. Ensure that connections are tightened to recommended torque values for LSA terminations and that the overall grounding layout provides a low-impedance path to the main earthing system. Inspect periodically for corrosion or loosened connections in environments with elevated humidity or airborne contaminants.
