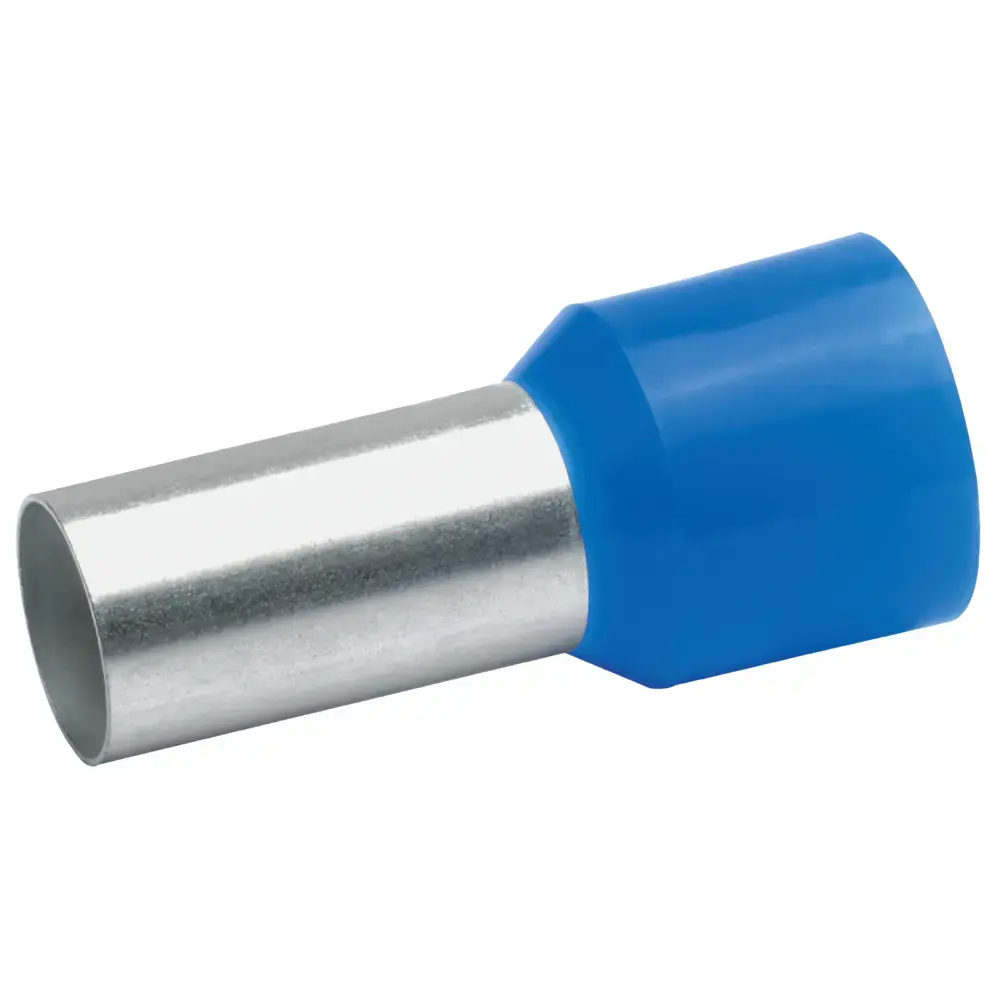

Gustav Klauke GmbH 48020 Insulated Wire End Ferrules Polypropylene Copper Blue Silver 50 pcs

Gustav Klauke GmbH 48020 insulated wire end ferrules are designed to provide secure and reliable electrical connections for various wiring projects. These ferrules ensure proper cable termination, preventing strand breakage and improving overall connection stability in electrical systems. Manufactured with precision, they combine high-quality copper and durable polypropylene insulation for dependable performance.

Advantages

The use of these insulated wire end ferrules guarantees clean and protected cable ends, which significantly reduces the risk of short circuits and loose connections. The integrated Easy-Entry insulation allows for quick and effortless cable insertion, saving time during installation. Designed specifically for fine and superfine stranded conductors, such as those compliant with DIN EN 60228 Class 5 and 6, they ensure optimal contact quality. Furthermore, the robust crimped cable end-sleeves facilitate straightforward mounting to cable clamps and terminal blocks.

Suitable for

• Electrical installations requiring secure termination of fine and superfine stranded conductors
• Wiring management in control panels and industrial equipment
• Connecting cables to various types of terminal blocks and cable clamps
• Professional electrical maintenance and repair work

When it may not be suitable

These ferrules are not designed for solid core wires or conductors that fall outside the compatible cross-section and diameter range. Using them with incorrect wire types may result in a faulty crimp and an unreliable electrical connection.

Key specifications

• Material: Copper with polypropylene insulation
• Connector contacts plating: Copper
• Product colour: Blue and Silver
• Diameter: 1.03 cm
• Stripping length: 3.6 cm
• Quantity per pack: 50 pieces

How to use

To use the ferrules, first strip the electrical cable to the specified stripping length of 3.6 cm to expose the conductor strands properly. Twist the fine or superfine strands slightly if necessary to prevent stray wires, then insert the stripped conductor fully into the ferrule using the Easy-Entry insulation opening. Ensure the copper conductor reaches the end of the metal sleeve. Finally, apply a suitable crimping tool designed for wire end ferrules to compress the sleeve securely onto the conductor before mounting it into the terminal clamp.

What to consider before purchase

• Verify that the wire diameter and cross-section match the specifications of the ferrules
• Ensure you have the correct crimping tool compatible with this type of wire end sleeve
• Check the required quantity for your project, as this package contains 50 pieces

Usage recommendations

Always use a calibrated crimping tool designed for insulated wire end ferrules to ensure a mechanically stable and electrically sound connection. Never reuse a previously crimped ferrule.
