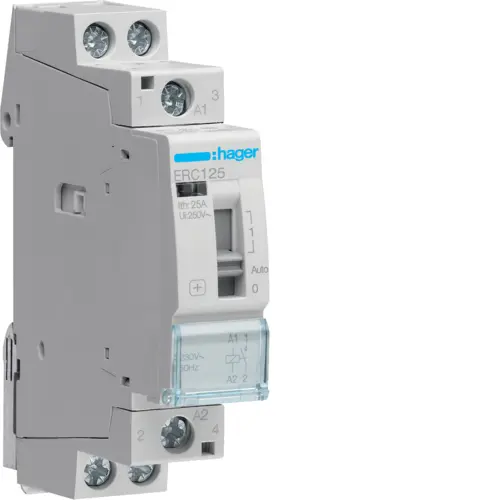

We are comparing the Hager ERC125 Contactor with Manual Control 1NO 25A 230V AC with several alternative switching devices rated for 25A: Schneider Electric LC1E2510P7 Contactor 3-Pole 25A 11kW 230V AC 1NO, KOOP Elektro IS25-1-11 Modular Contactor 25A 1NO 1NC 230V 1-Phase, Hager ERD225SDC Silent Contactor with Manual Control 25A 2NO 24V DC, Finder 22.32.0.230.4540 Modular Installation Contactor 25A 1NO+1NC 230V AC/DC, and Eti-Polam CEM18CN.10 Capacitor Contactor 15kVar 230V 50Hz 1NO. All devices support a 25A current rating, but they differ in control coil voltage, contact configuration, and features such as manual override or silent operation.
⚙️ The table below compares key characteristics: rated current, control coil voltage and type, contact configuration (NO/NC), and manual control capabilities.
| Parameter | Hager ERC125 | Schneider Electric LC1E2510P7 | KOOP Elektro IS25-1-11 | Hager ERD225SDC | Finder 22.32.0.230.4540 | Eti-Polam CEM18CN.10 | Practical significance |
|---|
| Rated current | 25A | 25A | 25A | 25A | 25A | 15kVar (230V) | All units handle comparable loads, except for the specialized capacitor contactor from Eti-Polam. |
| Control voltage | 230V AC | 230V AC | 230V 1-Phase | 24V DC | 230V AC/DC | 230V 50Hz | Selection depends on your control circuit voltage: standard mains 230V or low-voltage 24V. |
| Contact configuration | 1NO | 1NO | 1NO + 1NC | 2NO | 1NO + 1NC | 1NO | Configuration dictates circuit switching logic and whether auxiliary NC contacts are available. |
| Manual control | Yes | No | No | Yes | Yes | No | Manual operation simplifies diagnostics and forced load handling directly at the distribution board. |
◎ The table below outlines product suitability for different use cases and system environments.
| Use case | Recommended product | Why |
|---|
| Residential and commercial distribution boards requiring 230V control and manual override | Hager ERC125 | Provides standard 230V control combined with a convenient manual override function. |
| Industrial motor control and heavy power distribution | Schneider Electric LC1E2510P7 | Three-pole design and high power capacity (11kW) are optimized for industrial machinery. |
| Lighting, heating, and ventilation switching with NC contact requirements | KOOP Elektro IS25-1-11 | Modular layout with NO and NC contacts fits standard automation tasks. |
| Silent load control in low-voltage 24V environments | Hager ERD225SDC | Supports quiet operation and low-voltage control alongside manual switching capability. |
| Universal control voltage needs with status indication | Finder 22.32.0.230.4540 | Compact size, AC/DC supply compatibility, and built-in LED indicator ease maintenance. |
| Power factor correction and capacitor bank switching | Eti-Polam CEM18CN.10 | Engineered specifically to handle high inrush currents in capacitor applications. |
Hager ERC125 is best suited for standard electrical installations and distribution boards where reliable 25A switching is required with a 230V AC control coil and manual operation support. Choose this model if you prefer the Hager ecosystem and a built-in manual mode, whereas low-voltage 24V setups are better served by the ERD225SDC, and industrial or specialized tasks by alternatives from Schneider Electric, Finder, KOOP Elektro, or Eti-Polam.
