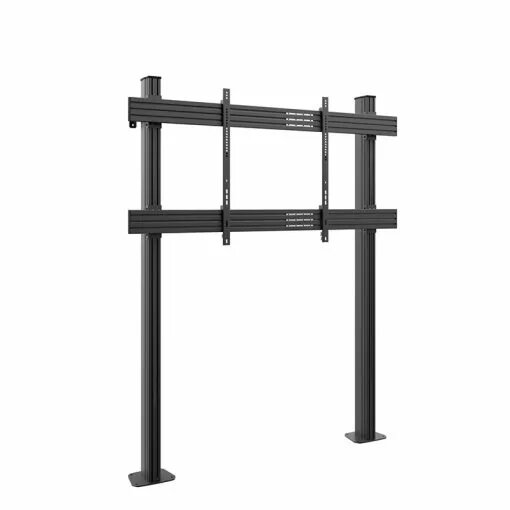

TV mount Hagor 3348 2.79 m 110" Black 150 kg capacity

The Hagor 3348 floor-wall TV mount supports large screens from 86" to 110" (218–279 cm) and is rated for a maximum load of 150 kg. It accepts VESA patterns from 200 x 200 mm up to 1500 x 800 mm and features fixed VESA arms that can be secured with a padlock if required. Designed as a space-saving floor-to-wall system, the mount sits close to the wall while offering height-adjustable rails along the aluminium pillars for flexible placement. Cable routing is integrated along the rear of the rails and pillars using cable clips, keeping cables out of sight. The visible components are finished with a solvent-free, impact- and scratch-resistant black powder coat for durability and a consistent appearance.

Advantages

The Hagor 3348 provides robust load capacity for very large displays while maintaining a compact footprint thanks to its floor-wall mounting concept. Height-adjustable rails and shorten-able aluminium pillars and rails enable tailored installation for different room layouts and screen positions. Integrated cable management preserves a tidy look, and the hard-wearing powder-coated surfaces resist impacts and scratches during installation and use. Optional padlock security for the VESA arms increases protection against unintended removal.

Suitable for

• Large conference rooms and auditoriums with 86"–110" displays
• Retail or exhibition spaces requiring heavy, secure screen mounting
• Corporate lobbies, public areas and educational facilities
• Home theaters or private rooms with very large TVs up to 150 kg

Key specifications

• Supported screen size: 86"–110" (218–279 cm)
• Maximum load capacity: 150 kg
• Compatible VESA range: 200 x 200 mm to 1500 x 800 mm
• Mount type: floor-wall stand system with fixed VESA arms
• Material: aluminium pillars and rails with metal mounting components
• Finish: solvent-free black powder coating, impact- and scratch-resistant
• Height-adjustable rails; pillars and rails can be shortened if needed
• Cable management: rear routing via cable clips
• Optional security: VESA arms can be padlocked

How to use

Position the floor-wall unit close to the wall and secure the base and wall attachment according to the included installation instructions and local building requirements. Adjust the height of the rails along the pillars to the desired display position and, if necessary, shorten the aluminium pillars or rails to fit the installation site. Attach the display to the fixed VESA arms, ensuring the VESA pattern falls within the supported range and the weight does not exceed 150 kg. Route cables along the rear side of the rails and pillars and fasten them with the supplied cable clips to keep them hidden and organised. If added security is desired, fit a padlock to the VESA arms after the display is mounted.

Usage recommendations

For safe and reliable installation, follow the manufacturer’s installation manual, check that the chosen wall and floor surfaces can support the combined weight of the mount and display, and use appropriate fixings for the wall type. When shortening rails or pillars, ensure cut edges are treated to maintain the protective coating. Regularly inspect the mount, fasteners and cable clips for wear or loosening, especially in public or high-traffic environments.
