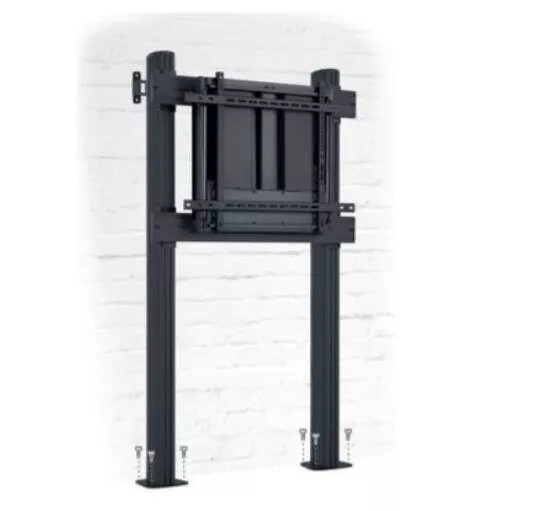

Hagor HP Counterbalanced Floor-Wall HD 2.29 m Black 90 kg

The Hagor HP Counterbalanced Floor-Wall HD 2.29 m Black 90 kg is a floor-to-wall stand system designed for mounting a single display or interactive whiteboard with a diagonal of 70–90" (178–229 cm). It includes a VESA-compatible bracket that supports up to 800 x 600 mm and provides a manually adjustable, counterbalanced height mechanism with a 400 mm stroke. The system is finished in an impact- and scratch-resistant black powder coating and secures to both floor and wall using screw connections.

Advantages

This stand system offers continuous, manual height adjustment that counterbalances the display weight so the screen remains stable at the chosen position without a locking mechanism. Load capacity is adjustable to match the device weight within a range of 60–90 kg, making it suitable for heavier professional displays. The wide VESA compatibility up to 800 x 600 mm and robust floor-and-wall attachment method provide stable, long-term installation. The black powder-coated finish improves resistance to impacts and scratches for frequent use in public or professional environments.

Suitable for

• Mounting single large displays or interactive whiteboards (70–90")
• Meeting rooms and conference spaces requiring adjustable screen height
• Educational environments with wall-to-floor display installations
• Showrooms and digital signage where a secure floor-and-wall mount is needed

Key specifications

• Supported screen diagonal: 70–90" (178–229 cm)
• Maximum weight capacity: 90 kg (adjustable down to 60 kg)
• VESA compatibility: up to 800 x 600 mm
• Number of displays supported: 1
• Height adjustment stroke: 400 mm (infinitely variable)
• Finish: impact- and scratch-resistant black powder coating
• Mounting method: combined floor and wall screw connection
• Overall height: 2.29 m

How to use

Fix the base and wall bracket to suitable structural surfaces using the provided screw connections, ensuring anchors and fixings are appropriate for the wall and floor material. Attach the VESA bracket to the display using the matching VESA hole pattern and mounting hardware. Adjust the counterbalance mechanism to match the weight of the display within the 60–90 kg range, then set the display to the desired height using the manual adjustment; the mechanism allows smooth vertical movement across a 400 mm stroke and holds the screen at the chosen position without additional locking. Verify all fasteners and the stability of the installation before regular use.

Usage recommendations

Use appropriate anchors and fixings rated for the combined weight of the mount and display and follow local building codes. For safety and optimal performance, have installation performed or checked by a qualified installer if mounting into drywall, hollow substrates, or when installing the heaviest displays near the 90 kg limit. Regularly inspect mounting points, fasteners and the counterbalance mechanism for wear or loosening and adjust the counterbalance if display weight changes.
