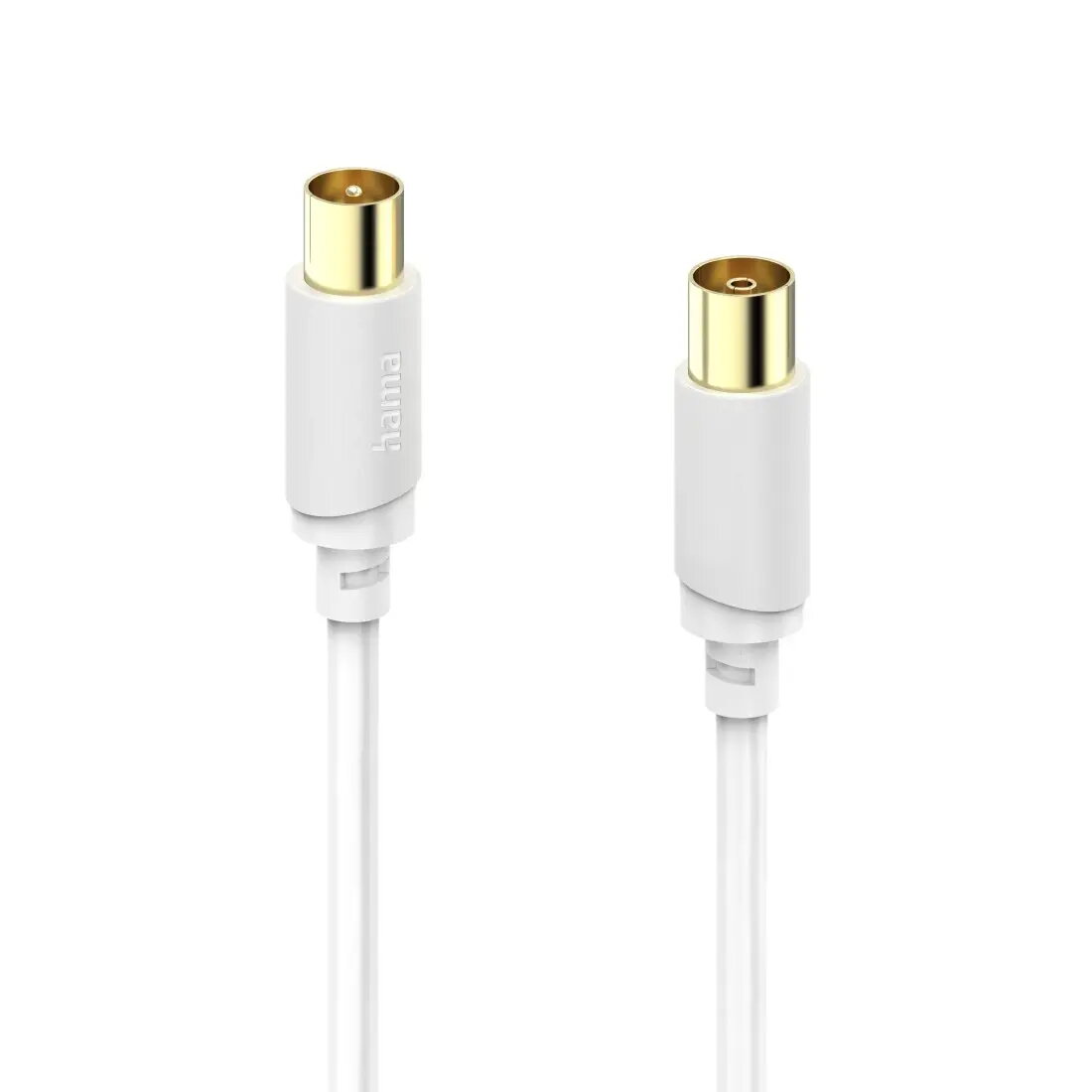

Coaxial cable Hama 00202026 — 10 m, white, coaxial connector to coaxial connector

Hama 00202026 is a 10 m white coaxial cable with coaxial connector on both ends, intended for transmitting audio and video signals between aerial sockets, set-top boxes, televisions and other RF devices. The cable uses a coaxial structure and magnetically shielded 75 Ω impedance to preserve clear treble and rich bass while ensuring stable signal transmission.

Advantages

Quad-shielding (two layers of high-density braiding plus shielding foil) and a 120 dB screening rate provide strong protection against electromagnetic interference. Gold-plated plugs reduce contact resistance for secure signal transfer, and optimized kink protection with flexible, resilient materials reduces the risk of cable breakage. The cable sheath, kink protection and plug housing are made from at least 20% demonstrably recycled plastic, and the product comes in 100% plastic-free, FSC-certified packaging.

Suitable for

• Connecting an aerial socket to a television
• Linking set-top boxes, receivers or tuners to TVs
• Extending or replacing existing RF coaxial connections up to 10 m
• Applications requiring magnetically shielded 75 Ω cables for audio/video quality

When it may not be suitable

The cable is designed for devices with a standard 9.5 mm coaxial connection and straight male/female coax connectors; it may not be suitable for devices that require angled connectors, non-standard coax sizes or integrated connector types. It is a passive RF cable and does not provide signal amplification or digital conversion.

Key specifications

• Length: 10 m
• Colour: White
• Impedance: 75 Ω (magnetically shielded)
• Connector type: coaxial male (straight) to coaxial female (straight)
• Screening rate: 120 dB (quad-shielded: shielding foil + two layers high-density braiding)
• Conductor/cable structure: coaxial
• Plugs: gold-plated contacts
• Jacket material: plastic; sheath, kink protection and plug housing contain ≥20% recycled plastic
• Packaging: 100% plastic-free, FSC-certified paper/cardboard

How to use

Connect the straight coaxial male plug to the aerial output or source device and the straight coaxial female connector to the receiving device such as a television or set-top box. Ensure connectors are fully seated and hand-tightened where applicable to maintain good contact; avoid excessive bending near the connectors to preserve the optimized kink protection. Route the cable keeping it clear of strong electromagnetic sources where possible to maximise shielding effectiveness.

What to consider before purchase

• Verify that both devices use a standard 9.5 mm coaxial connector and straight male/female interfaces.
• Consider the required cable length (10 m) and available routing space to avoid excessive bends or strain.
• If you need angled connectors, a different length, signal amplification or digital conversion, choose a product suited to those needs.

Usage recommendations

For best results with the Hama 00202026 coaxial cable, keep the cable run as short and direct as practical, avoid tight bends at the connector ends, and place the cable away from major sources of electromagnetic noise (large power supplies, unshielded transformers) to take full advantage of the 120 dB quad-shielding and maintain clear audio and video signals.
