header-product Handheld bar code reader Datalogic Gryphon I GD4520
158.49 €

Handheld bar code reader Datalogic Gryphon I GD4520

Handheld bar code reader Datalogic Gryphon I GD4520 Photo 1
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 2
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 3
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 4
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 5
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 6
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 7
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 8
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 1
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 2
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 3
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 4
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 5
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 6
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 7
Handheld bar code reader Datalogic Gryphon I GD4520 Photo 8
Keep track of price changes You keep track of price changes
Watch the price drop

Leave your address - as soon as the price of the product goes down, you'll know about it right away

You keep track of price changes

Handheld bar code reader Datalogic Gryphon I GD4520

{{email}}
You keep track of price changes

Handheld bar code reader Datalogic Gryphon I GD4520

{{email}}
{{selectedOffer && selectedOffer.price | formatAmount}}

Short description

The Datalogic Gryphon I GD4520 is a versatile handheld bar code reader supporting both 1D and 2D barcodes including QR codes and Data Matrix. It features a wired USB connection, is shock resistant, and has an IP52 rating for protection against dust and water. Weighing only 161 g, it is lightweight and easy to handle, making it ideal for various scanning applications. Powered by a 5V DC source, it consumes 300 mA, ensuring efficient performance.
Available at price 158.49 €: 33 pcs.
Total available for order: 101 pcs.
Warranty: 2 Years
SKU: 4362487
free shipment

Cheapest delivery:

Unisend LV

Pick-up points

Unisend LV

Cost

1.79 €

Deliver

{{selectedOffer.parcelStationDeliveryString}}

Customer service center
2b. Kengaraga str., Riga, Latvia, LV-1063
21.09.2026 {{selectedOffer.officeDeliveryString}}
free
Courier Delivery Please note that in case of a large parcel additional delivery costs may apply!
24.09.2026 {{selectedOffer.courierDeliveryString}}
From 4.99 € (Weight: 0.16 kg)
Parcel couriers
Unisend LV / Venipak Pickup LV / Venipak Locker LV / Latvijas Pasts pakomāts / DPD Paku skapis / Omniva LV / Latvijas Pasts nodaļa
24.09.2026 {{selectedOffer.parcelStationDeliveryString}}
From 1.79 €
0 credit

pay in 3 equal parts

today

0 €

afterward

3 mth. х 52.83 €

overpayment

0 €

All payment Methods:
Bank transfer, Bank cards on-line, Apple Pay, Google Pay, Installment
36 months installment: from 4.40 euros per month
Together cheaper
{{product.price | formatAmount}}
{{product.title}}
{{productBundle.reference.specialPrice | formatAmount}}
{{productBundle.title}}
{{productBundlePreviousPrice | formatAmount}}
{{productBundleSpecialPrice | formatAmount}}

You saving {{productBundleYouSave | formatAmount}}

Product information

Description

The Datalogic Gryphon I GD4520 is a corded handheld barcode reader designed for general-purpose scanning of both 1D and 2D codes, including QR and Data Matrix. The kit includes the scanner, an All in One permanent base and a USB cable (90A052258). The GD4520 uses a megapixel imager with warm-white illumination and a 4-dot aimer to provide a clear reading zone and improved performance on colored labels. Motionix™ motion-sensing automatically switches reading modes for handheld or presentation use. A healthcare version with disinfectant-ready, antimicrobial enclosure is available for medical environments.

Advantages

The Gryphon I GD4520 combines a high-resolution imager and warm-white illumination for reliable decoding of both 1D and 2D barcodes, including small or colored labels. Motionix™ enables automatic switching between handheld and presentation modes without manual intervention. The visible 4-dot aimer and center cross provide precise targeting and reduce accidental reads. The corded USB connection ensures continuous power and stable data transfer, and the device’s lightweight design (0.161 kg) supports extended use.

Suitable for

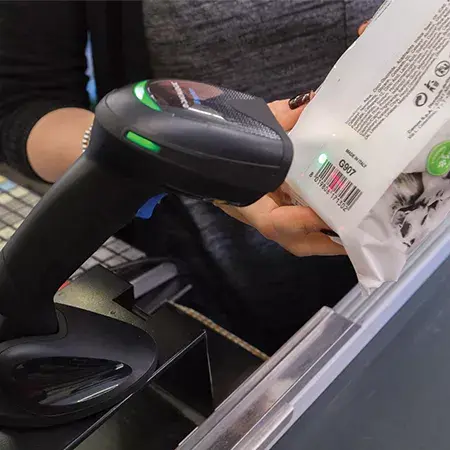

  • Retail point-of-sale scanning of 1D and 2D codes
  • Inventory and stock management in warehouses
  • Ticketing and event entry validation with QR or Aztec codes
  • Healthcare workflows when using the disinfectant-ready model

Key specifications

  • Scanner type: 1D/2D imager
  • Supported codes: QR Code, Micro QR, Aztec, Data Matrix, Han Xin, MaxiCode
  • Connectivity: Wired USB (kit includes USB cable 90A052258)
  • Power: 5 V DC, 300 mA
  • Weight: 0.161 kg
  • Product colour: Black
  • Ingress protection: IP52 (dust and water protection)

How to use

Connect the Gryphon I GD4520 to a host device using the supplied USB cable. Place the scanner in the All in One permanent base for hands-free presentation mode or pick it up for handheld scanning. Aim the 4-dot aimer at the barcode and press the trigger (or allow automatic Motionix™ presentation reading) until the device signals a successful decode. For best results, align the center cross on the target code and maintain the recommended reading distance shown in the product documentation.

Usage recommendations

Use warm-white illuminated scans for improved readability on colored labels, keep the scanner and base free of heavy dust and liquids, and select the disinfectant-ready model in clinical environments. Follow Datalogic’s maintenance instructions to preserve aimer visibility and motion-sensing performance.

Specifications

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.161 kg
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader
Power source type: What the power source is.
DC
Product colour: The colour e.g. red, blue, green, black, white.
Black
Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
QR Code, Micro QR Code, MaxiCode, Han Xin, Data Matrix, Aztec Code
All features

Logistics data

Harmonized System (HS) code:
84716070

Technical details

Compliance certificates: Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies.
RoHS

Operational conditions

Operating relative humidity (H-H):
0 - 95
Storage temperature (T-T): The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70
Operating temperature (T-T): The minimum and maximum temperatures at which the product can be safely operated.
0 - 40

Packaging data

Cables included:
USB
Charging base:
Yes

Weight & dimensions

Weight: Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
0.161 kg
Height: The measurement of the product from head to foot or from base to top.
166 mm
Depth: The distance from the front to the back of something.
109 mm
Width: The measurement or extent of something from side to side.
68 mm

Power

Power consumption:
300 mA
Input voltage: The voltage (V) which is required to power the product.
5
Power source type: What the power source is.
DC

Performance

Certification:
IEC 60825 Class 2
Image formats supported: The type of image files that the device can use/display e.g. gif, JPEG (jpg).
JPEG, BMP, TIFF
Protection features: Physical effects from which the product is protected e.g. water resistant, crash proof.
Shock resistant
International Protection (IP) code: The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP52
Product colour: The colour e.g. red, blue, green, black, white.
Black

Ports & interfaces

Standard interfaces: Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB
Connectivity technology: The technology that enables connectivity of the device, e.g. wired or wireless.
Wired

Scanning

Motion tolerance (cm/s):
88.9
Pitch reading angle:
-65 - 65
Tilt reading angle:
0 - 360
Wavelength: The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
650 nm
Light levels (direct sunlight):
0 - 100000
Optical sensor resolution (W x H):
1280 x 800
2D (matrix & stacked) barcodes supported: The product can read matrix (2D) barcordes.
QR Code, Micro QR Code, MaxiCode, Han Xin, Data Matrix, Aztec Code
Scanner type: Indicates the type of scanner this product is.
1D/2D
Type: Characteristics of the device.
Handheld bar code reader

Description
