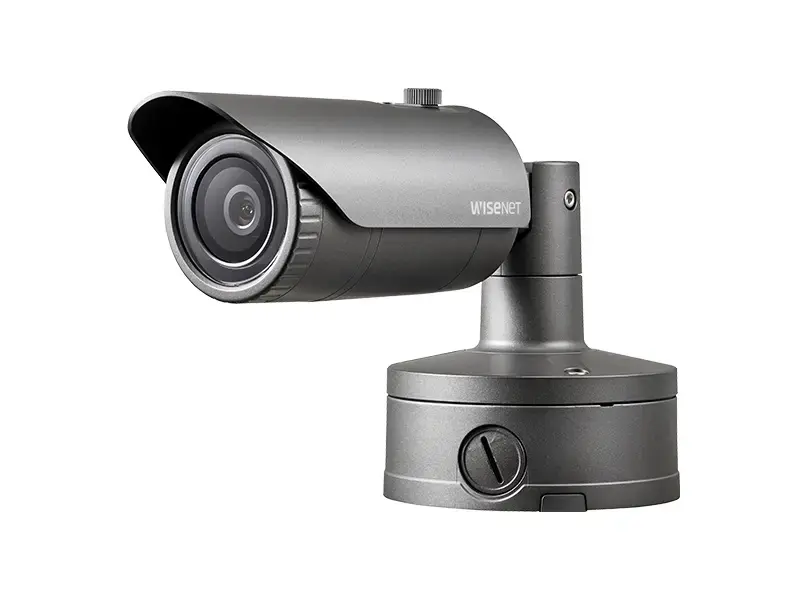

Hanwha Vision XNO-8020R 5MP Bullet IP Security Camera, 2560 x 1920, Outdoor, Wired

The Hanwha Vision XNO-8020R is a professional-grade 5MP bullet IP security camera engineered for high-performance outdoor surveillance. Equipped with a 1/1.8" CMOS sensor and a 3.7mm fixed lens, this camera delivers crisp 2560 x 1920 resolution images at 30 frames per second. Its robust design, featuring IP67, IP66, and IK10 ratings, ensures reliable operation in harsh weather conditions and protection against vandalism, making it an ideal choice for demanding security environments.

Advantages

This camera offers exceptional image quality and advanced processing capabilities through the WiseNet 5 chipset. The integration of WiseStream II compression technology significantly reduces bandwidth and storage requirements without compromising video quality. With a wide 126.2° diagonal field of view and powerful infrared LEDs providing up to 30 meters of night vision, the device ensures comprehensive coverage even in low-light scenarios. Furthermore, the inclusion of intelligent video analytics, such as people counting, heatmap generation, and sound classification, provides actionable insights for security management.

Suitable for

• Outdoor perimeter monitoring for commercial buildings
• Public space surveillance requiring high-resolution detail
• Retail environments for queue management and people counting
• Industrial sites needing vandal-resistant equipment
• Parking lots and loading docks with varying lighting conditions

When it may not be suitable

This camera may not be the optimal choice for applications requiring optical zoom, as it features a fixed focal length lens. Additionally, if you require a discreet, low-profile indoor solution, the bullet form factor might be less aesthetically suitable compared to dome or micro-camera alternatives.

Key specifications

• Resolution: 5MP (2560 x 1920)
• Sensor: 1/1.8" CMOS
• Lens: 3.7mm fixed
• Field of View: 126.2° diagonal
• Night Vision: IR range up to 30 meters
• Durability: IP67, IP66, IK10, NEMA 4X
• Compression: H.265, H.264, MJPEG, WiseStream II
• Storage: Dual SD card slots (up to 512GB)
• Power: 12VDC, 24VAC, or PoE

How to use

The Hanwha Vision XNO-8020R is designed for versatile installation on ceilings, walls, or desks. Begin by mounting the camera using the included hardware, ensuring the cable entry is properly sealed to maintain its weather-resistant integrity. Connect the device to your network infrastructure via a wired Ethernet connection. Once powered, access the camera's web interface to perform the initial configuration, including focus adjustment and network settings. The USB port is available to assist with easy installation and alignment during the setup process.

What to consider before purchase

• Ensure your network infrastructure supports PoE or that you have a compatible 12VDC/24VAC power supply.
• Verify that the fixed 3.7mm lens provides the necessary field of view for your specific monitoring area.
• Check if your existing video management software is compatible with the H.265/H.264 compression standards.
• Consider the storage capacity requirements if you plan to utilize the dual SD card slots for local recording.

Usage recommendations: For optimal performance, ensure the camera is mounted in a location that minimizes direct glare from light sources. Regularly clean the lens cover to maintain image clarity and check the integrity of the cable connections to ensure the IP67 weatherproofing remains effective over time.
