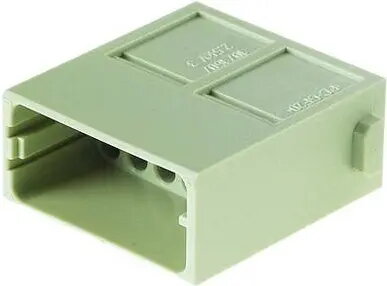

Connector insert Harting 09140173001 9-pin Stiftmodul for industrial rectangular connectors

Harting Stiftmodul 09140173001 is a 9-pin connector insert created for use in Harting industrial rectangular connector systems. The compact insert offers nine male pin contacts arranged to provide reliable signal and low-current connections within modular housings. Designed for panel mount and equipment assembly, this insert supports secure contact alignment and mating in applications where a small number of pins and robust mechanical retention are required.

Advantages

The 9-pin Stiftmodul delivers consistent electrical contacts with stable mechanical fit, reducing the risk of intermittent connections in industrial environments. Its compact form factor allows space-efficient wiring and easy integration into standard rectangular housings. The insert is compatible with Harting modular connector systems, facilitating replacement or upgrades without extensive redesign. Materials and contact geometry are selected to provide durable mating cycles and reliable low-current transmission.

Suitable for

• Signal wiring in control cabinets and distribution panels
• Equipment and machine assembly requiring compact multi-pin interfaces
• Industrial cabling where secure pin alignment is necessary
• Applications needing low-current connections such as sensors or indicators

Key specifications

• Number of contacts: 9 male pins
• Contact type: pin (male) contacts for signal/low-current use
• Form factor: insert for rectangular modular housings
• Mounting: designed for insertion into compatible Harting connector frames and housings
• Typical use: signal and low-current interconnection in industrial environments

How to use

Install the 9-pin insert into a compatible Harting rectangular housing by aligning the insert with the housing guide features and pressing until it locks into place. Route individual wires to the rear of the insert and terminate them according to the contact numbering and wiring scheme of your system; use appropriate crimp or solder termination compatible with the pin contacts. Once wired, mate the completed insert and housing assembly with the corresponding counterpart in the equipment or panel to establish electrical connections. Verify seating and continuity after installation.

Usage recommendations

Ensure compatibility by matching the insert form factor to the specific Harting rectangular housing used. Use correct wire cross-section and termination methods recommended for low-current signal contacts, and perform a continuity check after assembly. Avoid exposing the insert to mechanical stresses beyond the rated mounting and mating procedures.
