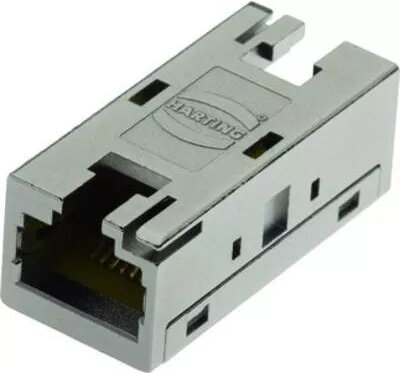

Connector Harting 09455451560 — single-piece industrial rectangular connector

Harting 09455451560 single-piece industrial rectangular connector is a compact mating solution for electrical and signal connections in machinery, control cabinets and industrial installations. As an original Harting component, the connector is designed to provide stable electrical contact and mechanical retention where a robust rectangular interface is required. Its single-piece construction simplifies installation and reduces the number of separate components needed for panel or cable connections.

Advantages

The single-piece design ensures consistent mating geometry and reduces assembly time by eliminating the need to join multiple housing parts. The connector is manufactured to meet industrial durability expectations, offering reliable contact stability under typical factory conditions. Its rectangular form factor provides a compact footprint while allowing organized conductor routing and secure mounting to panels or cable assemblies.

Suitable for

• Electrical and signal connections in automation systems
• Interfaces in control cabinets and switchgear
• Machine-to-machine connections and industrial equipment
• Replacement or upgrade of rectangular connector interfaces

Key specifications

• Connector type: single-piece industrial rectangular connector
• Application: electrical and signal transmission in industrial environments
• Mounting: panel or cable interface suitable
• Construction: robust housing designed for mechanical stability
• Compatibility: designed to mate with corresponding rectangular connector counterparts

How to use

Install the Harting rectangular connector by aligning the mating faces with the corresponding counterpart and engage until the connectors seat fully. For panel mounting, secure the housing to the panel according to the panel cut-out and fastening points. For cable assemblies, fit the appropriate insert or contact system into the connector housing as required by the wiring specification, then terminate conductors using the recommended contact method. Verify electrical continuity and mechanical retention after assembly before applying operational voltage.

Usage recommendations

Use the connector in installations that match its mechanical and electrical requirements; ensure compatible mating parts and correct contact inserts are selected. Follow site-specific wiring diagrams and torque values for fasteners. Inspect contacts and housing periodically for signs of wear or contamination in environments with dust, moisture or vibration, and perform maintenance as needed.
