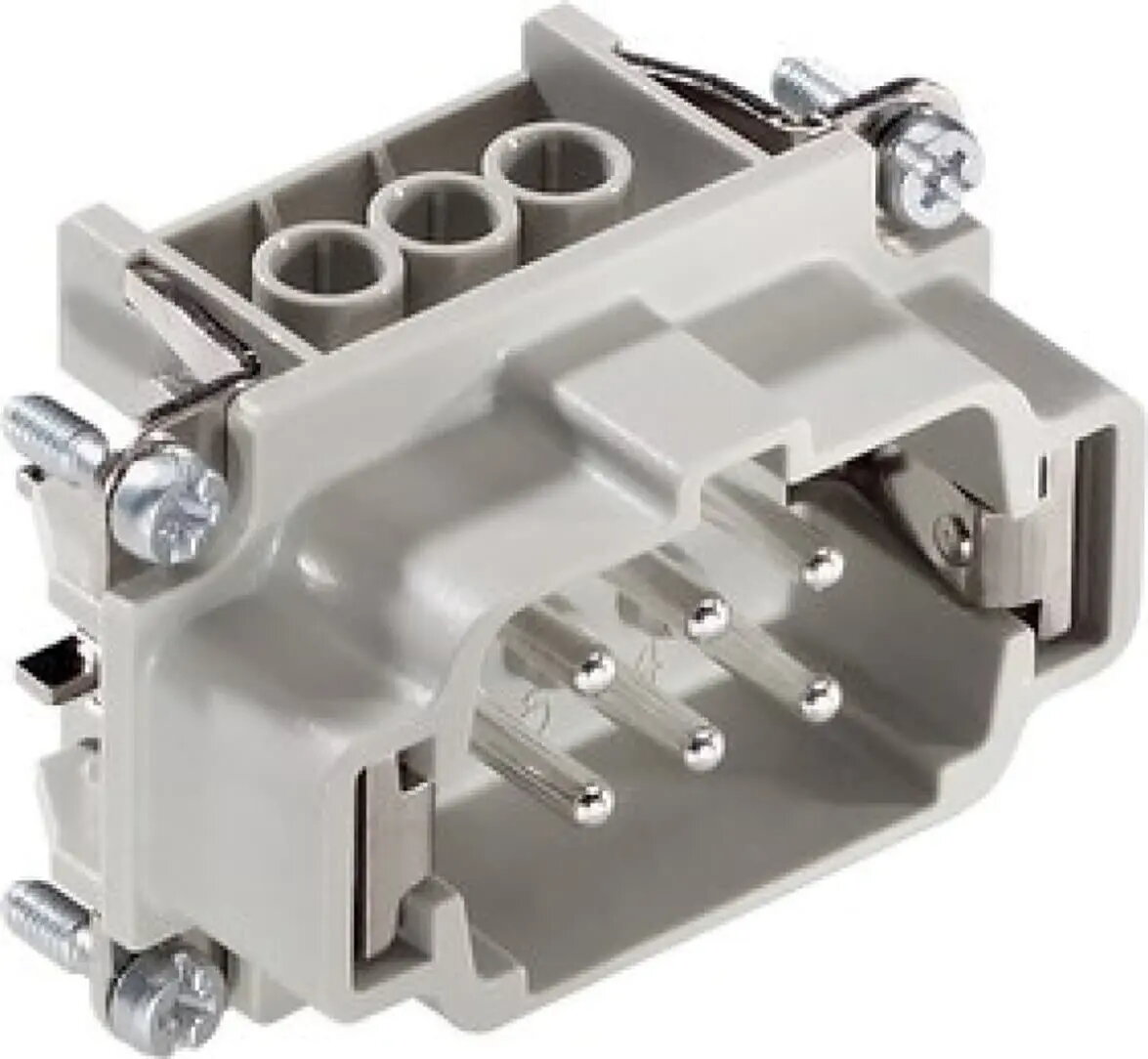

Harting EPIC H-BE 6 SS Male Connector Insert, 6P+PE, Screw Termination

The Harting EPIC H-BE 6 SS is a professional-grade male connector insert engineered for demanding industrial environments. Featuring a 6-pole plus protective earth (6P+PE) configuration, this component provides a reliable solution for power and signal transmission in complex machinery and automation systems. Its design prioritizes mechanical stability and electrical integrity, making it a standard choice for heavy-duty connectivity requirements.

Advantages

This connector insert is built for longevity and consistent performance under harsh operating conditions. The screw termination method ensures a high-strength mechanical connection that resists vibrations and thermal expansion, maintaining low contact resistance over extended periods. Its robust construction protects the internal contacts from environmental stress, while the standardized design allows for seamless integration into existing industrial housing systems.

Suitable for

• Industrial automation and control systems
• Heavy machinery and manufacturing equipment
• Power distribution panels
• Robotic assembly lines

This connector may not be suitable for applications requiring high-speed data transmission or environments where extreme chemical exposure exceeds the material specifications of the insert. It is also not intended for use in consumer electronics or low-voltage applications where smaller, non-industrial form factors are required.

Key specifications

• Number of poles: 6 + PE
• Termination method: Screw termination
• Gender: Male
• Material: High-performance thermoplastic
• Operating temperature range: -40°C to +125°C

To install the connector, strip the wires to the appropriate length and insert them into the screw terminals. Tighten the screws to the recommended torque to ensure a secure connection. Once wired, the insert is pushed into the corresponding industrial housing until it clicks into place, ensuring the protective earth contact is properly aligned and engaged before powering the system.

What to consider before purchase

• Verify the compatibility with your existing industrial housing
• Ensure the wire gauge matches the screw terminal capacity
• Check the environmental conditions of the installation site

Usage recommendations: Always ensure that the power is disconnected before performing any installation or maintenance on the connector. Regularly inspect the screw terminals for tightness during scheduled maintenance intervals to prevent loose connections caused by mechanical vibration.
