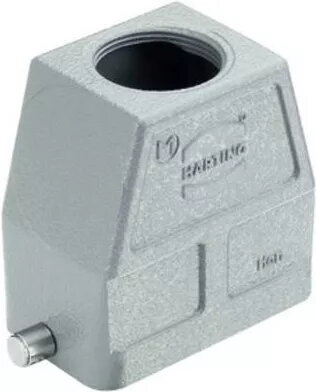

Connector housing Harting HAN 10B-GG-R-M32 IP65 (model 19 30 010 0447)

Harting HAN 10B-GG-R-M32 IP65 connector housing is a robust industrial enclosure designed to protect modular contacts and inserts in demanding environments. The housing provides IP65 protection, a secure M32 cable entry, and mechanical stability to maintain reliable electrical connections in machinery, control cabinets and field installations. Its construction supports modular contact systems and simplifies installation and maintenance while shielding contacts from dust and water jets.

Advantages

The housing combines durable materials and a compact form factor to deliver mechanical strength and long-term resistance to industrial wear. IP65 ingress protection ensures components remain dry and clean under exposure to dust and directed water jets. The M32 cable gland allows a standardized cable routing and strain relief, while the design supports quick mounting to panels or equipment. The enclosure also facilitates modular contact inserts, enabling flexible configuration and easy replacement without compromising sealing performance.

Suitable for

• Heavy machinery and production equipment
• Control cabinets and switchgear
• Field installations exposed to dust and water spray
• Modular connectors requiring secure environmental sealing

Key specifications

• Ingress protection rating: IP65 (protection against dust and water jets)
• Cable entry: M32 gland for sealed cable routing
• Material properties: industrial-grade housing with mechanical stability
• Compatibility: designed for modular contact inserts and standard industrial mounting
• Mounting: suitable for panel or equipment attachment with secure fastening

How to use

Select the appropriate modular insert and install it into the housing following the insert manufacturer’s guidance. Route cables through the M32 gland and secure them with the gland’s strain relief to maintain the IP65 seal. Mount the housing to the panel or equipment using the provided fixing points, and verify alignment and contact engagement. Complete the assembly by tightening the cover and gland to the specified torque values to ensure environmental sealing and mechanical stability.

Usage recommendations

Verify compatibility of modular inserts and follow torque specifications for the cable gland and cover to preserve IP65 protection. For outdoor or high-exposure applications, inspect seals and gland fittings periodically and replace worn parts to maintain reliable sealing and mechanical performance.
