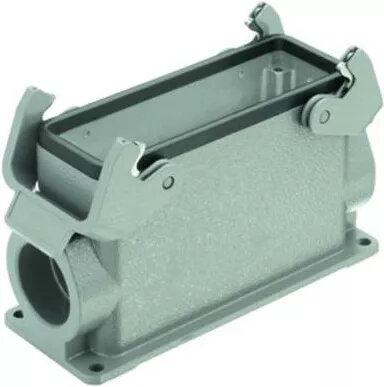

Connector Socket Housing Harting 19300240232 IP65 16A

Harting Connector Socket Housing 19300240232 is a durable IP65-rated enclosure designed for 16 A electrical connections. It provides a sealed protective shell for industrial connectors, preventing ingress of dust and water spray while enabling secure cable attachment and panel mounting. Constructed for use in machinery, automation, and equipment installations, the housing supports reliable contact protection and straightforward integration into existing connector systems.

Advantages

The IP65-rated body ensures protection against dust and low-pressure water jets, reducing the risk of short circuits and contact corrosion in harsh environments. The housing is sized for 16 A applications and is compatible with standard industrial sockets, which simplifies replacement or upgrade tasks. Its design supports secure mounting to panels or equipment and offers clear access for wiring and maintenance without exposing internal contacts to contaminants.

Suitable for

• Industrial machinery electrical interfaces
• Automation cabinets and control panels
• Panel- and equipment-mounted power or signal connections
• Environments requiring dust and water spray protection

Key specifications

• Ingress protection rating: IP65 (dust tight and protected against water jets)
• Current rating: 16 A
• Form factor: socket housing for panel or equipment mounting
• Material characteristics: robust protective shell suitable for industrial use
• Environment: intended for use in industrial, machinery, and automation settings

How to use

Mount the socket housing onto the panel or equipment cut-out and secure it with the appropriate fasteners. Route and terminate cables to the corresponding contacts following the connector manufacturer's wiring scheme, ensuring correct conductor sizes for 16 A operation. After wiring is complete, assemble the mating connector and check that seals and gaskets are properly seated to maintain the IP65 rating. Verify mechanical fixation and electrical continuity before placing the installation into service.

Usage recommendations

Use the housing with compatible Harting connector inserts and mating parts designed for 16 A operation. Regularly inspect seals, gaskets, and fastening points for wear or damage, especially in dusty or wet environments, and replace damaged components to preserve ingress protection and reliable contact performance.
