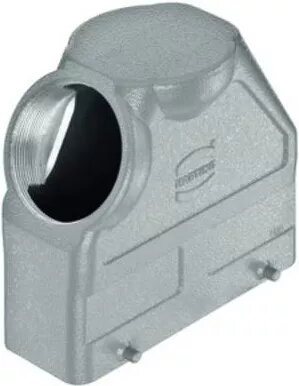

Connector housing Harting Han 24B-gs-M50 19300240529 — rectangular industrial housing for Han 24B series

The Harting Connector Housing Han 24B-gs-M50 is a rectangular industrial enclosure designed to accept Han 24B insert modules and provide a robust interface for electrical and signal contacts. It is intended for use where a durable protective housing is required to shield connections from mechanical stress and environmental factors in industrial and machine-building settings.

Advantages

This housing offers a sturdy construction and a form factor compatible with Han 24B series modules, enabling secure mounting and reliable mechanical protection for inserted contacts. The design supports both panel and cable mounting options, reduces strain on connected cables and contacts, and helps maintain connector alignment under repeated connection cycles.

Suitable for

• Industrial machinery and production equipment
• Control cabinets and electrical panels
• Heavy-duty signal and power connections
• Field installations requiring robust connector interfaces

Key specifications

• Rectangular housing compatible with Han 24B insert modules
• Mechanical protection for electrical and signal contacts
• Designed for panel or cable mounting configurations
• Robust construction for industrial and machine-building environments

How to use

Select a Han 24B insert module to match the required contact configuration and wire the contacts according to the relevant electrical schematic. Insert the module into the housing until it seats securely, then install the housing to the panel cut-out or attach the corresponding cable gland or mounting bracket as needed. Ensure all fixing screws and seals are tightened to the manufacturer’s torque specifications and that any environmental seals are intact before energising the system.

Usage recommendations

Verify compatibility between the chosen Han 24B insert module and the housing before installation. Use appropriate sealing and strain-relief accessories for cable-mounted installations and follow applicable safety and grounding practices during wiring and connection.
