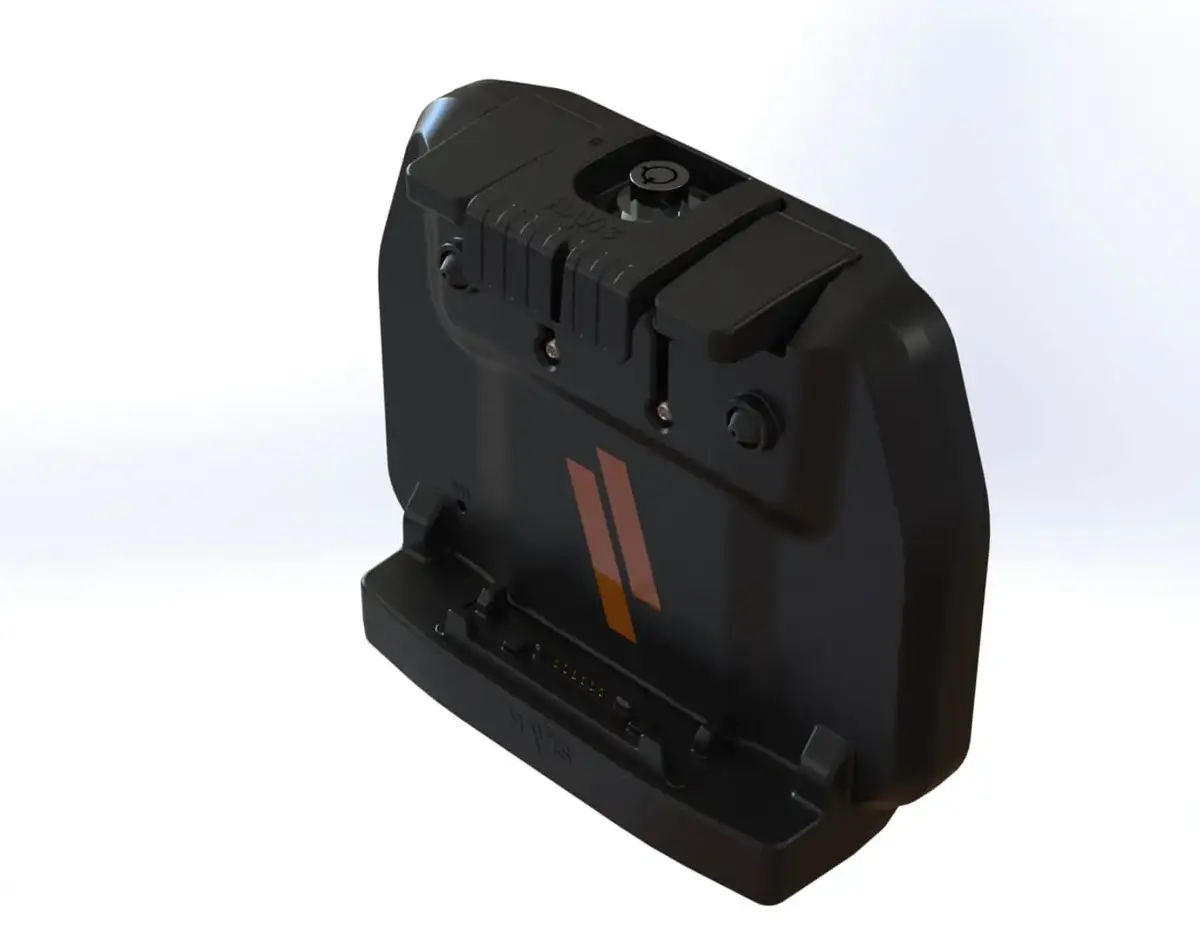

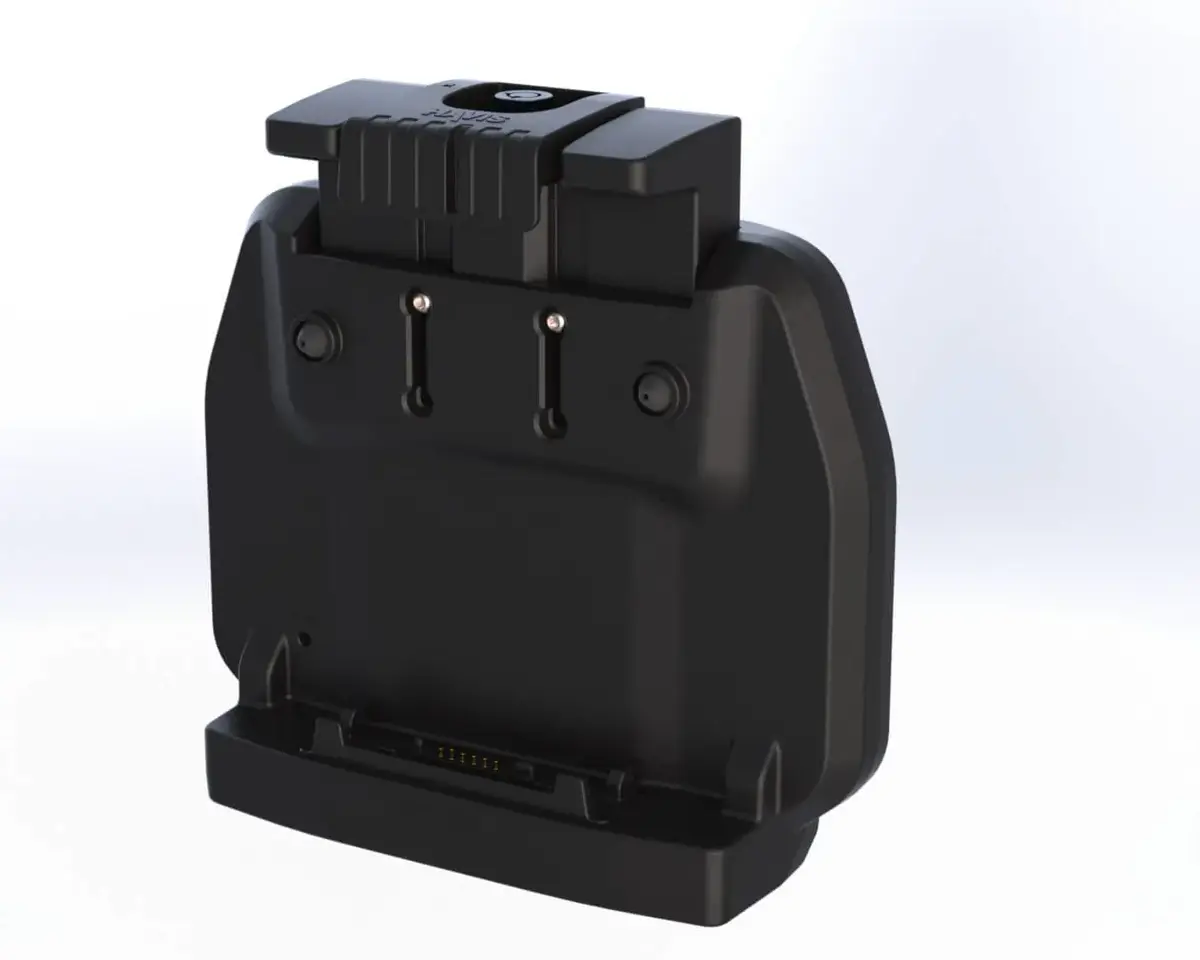

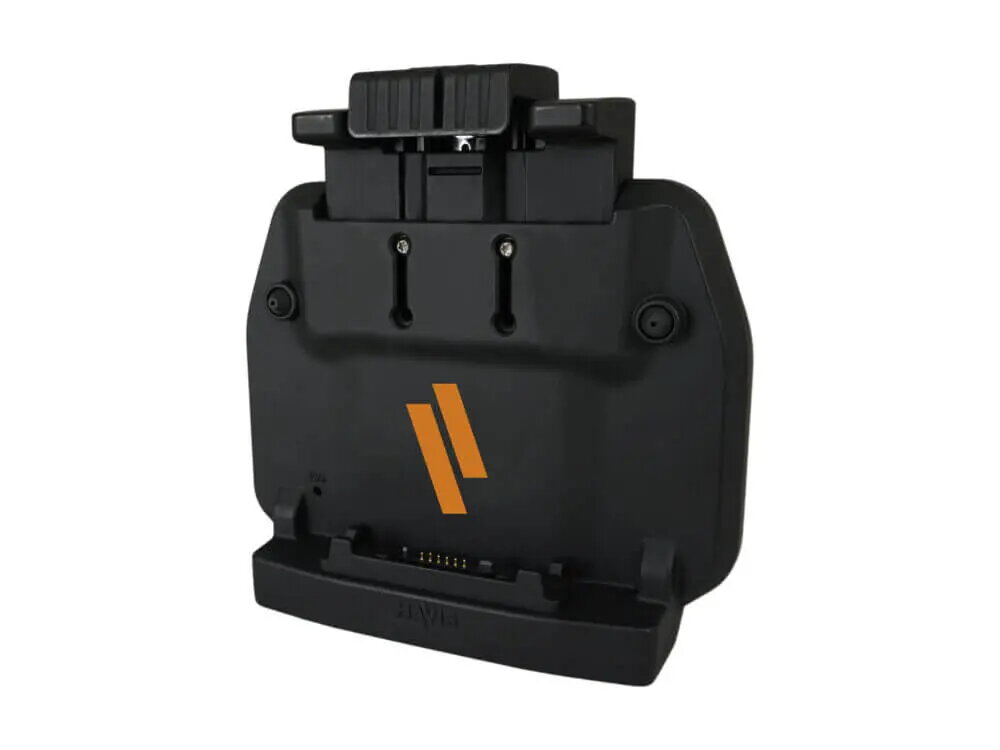

Mobile Device Dock Station Havis DS-ZEB-304-AC Black

The Havis DS-ZEB-304-AC mobile device dock station provides a secure, compact docking solution for Zebra ET4x Series tablets used in retail, hospitality, material handling and other demanding environments. Its height-adjustable design supports both 8" and 10" ET40 and ET45 devices with rugged boots, and the polycarbonate construction offers strength, ruggedness and resistance to extreme temperatures. The dock includes a keyed lock for added security and requires an external power supply (not included).

Advantages

The dock delivers advanced port replication with two USB 2.0 ports, an RJ45 Ethernet port and a powered serial port, plus an LED power indicator. A spring-loaded, floating connector head and one-handed docking/undocking ensure reliable connectivity even under heavy vibration. The compact, lightweight design provides access to buttons, ports and the barcode scanner while the integrated VESA 75 mounting pattern, strain relief and cable routing make installation and cable management straightforward.

Suitable for

• Retail point-of-sale and inventory tasks
• Hospitality check-in and service workflows
• Material handling and warehouse operations
• Field or vehicle-mounted tablet use where vibration resistance is required

Key specifications

• Compatible devices: Zebra ET40 and ET45 (8" and 10" devices with required rugged boots)
• Port replication: (2) USB 2.0, (1) RJ45 Ethernet, (1) Powered serial port (5V)
• Vibration & environmental testing: MIL-STD 810H 514.5; SAE J1455 crash testing 30 mph; latch handle and docking connectors 30,000 cycles; operational temperature -20° C to 50° C; storage temperature -40° C to 85° C
• Dimensions (8" configuration): Unlatched height 196 mm, Latched height 183 mm; width 219 mm; depth 74 mm
• Dimensions (10" configuration): Unlatched height 253 mm, Latched height 211 mm; width 219 mm; depth 74 mm
• Weight: 0.85 kg (1.86 lbs)
• Construction: polycarbonate; color: black
• Mounting: integrated VESA 75 pattern
• Security: keyed lock included

How to use

Mount the DS-ZEB-304-AC using the integrated VESA 75 pattern or place it on a stable surface. Connect an appropriate external power supply (not included) and route cables using the integrated strain relief and cable routing features. Place the Zebra ET40 or ET45 (with rugged boot) into the dock and press down until the spring-loaded, floating connector head engages and the latch secures the device. The LED indicator shows power status. One-handed docking and undocking are supported for efficient workflow.

Usage recommendations

Use the dock with the specified Zebra ET40/ET45 models and their rugged boots, ensure the external power supply meets device requirements, and periodically inspect the docking connector and cables for wear. Avoid exposing the dock to temperatures outside the tested operational range.
