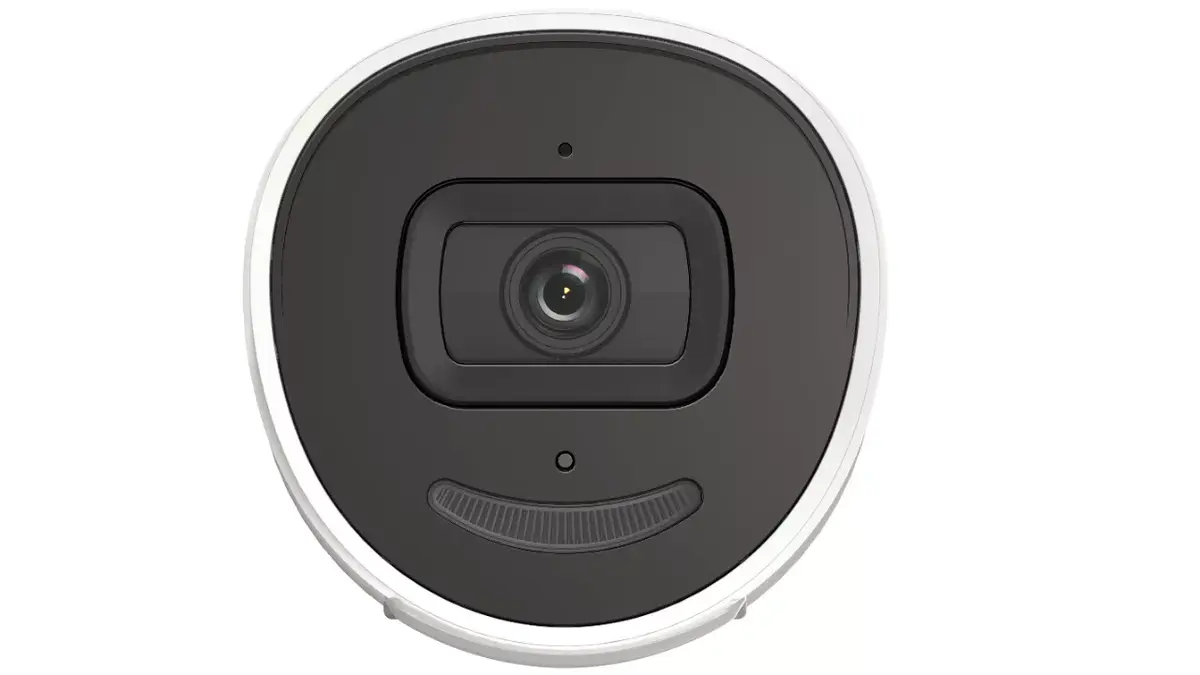

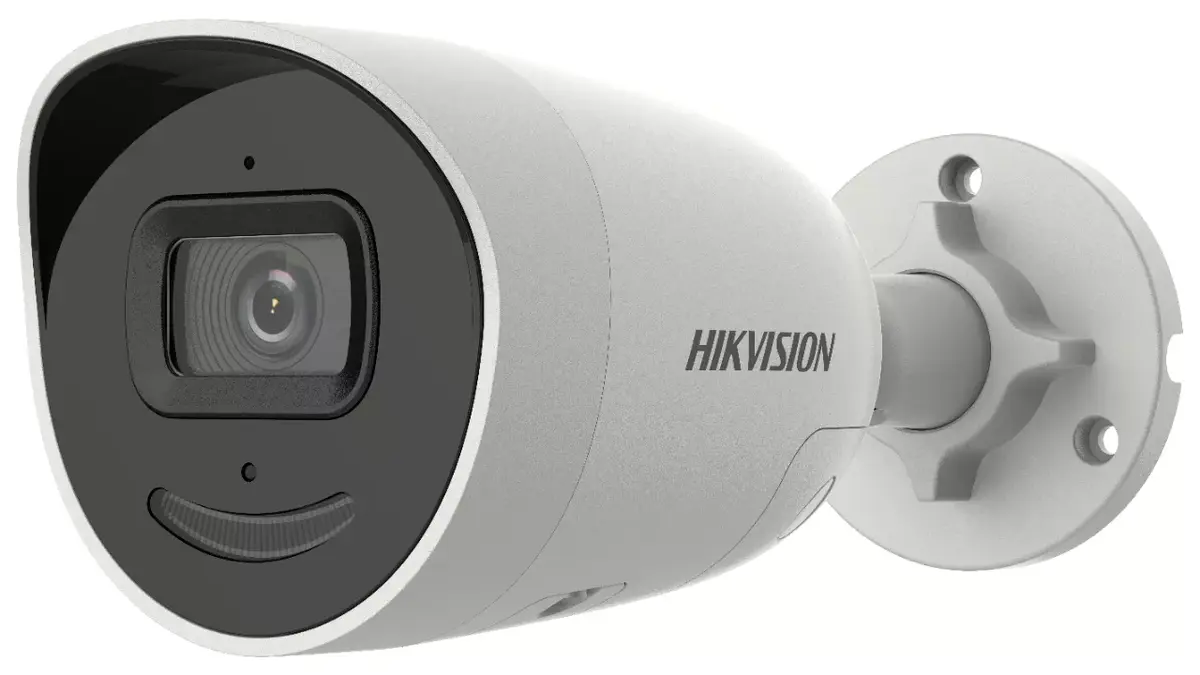

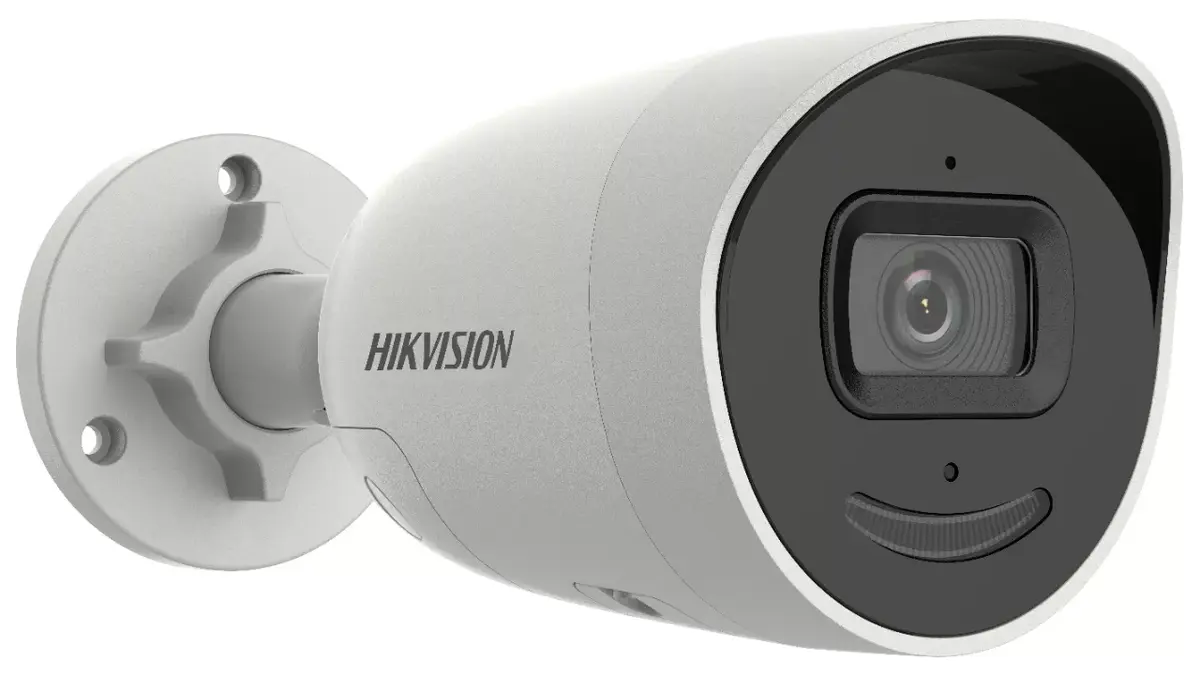

IP security camera Hikvision DS-2CD2066G2-IU/SL Outdoor 3200 x 1800 pixels

Type:

IP security camera

Supported network protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP

Compatible memory cards:

MicroSD (TransFlash), MicroSDHC, MicroSDXC

Built-in microphone:

Yes

Camera shutter speed:

1/3 - 1/100000

Ethernet LAN:

Yes

Sensor type:

CMOS

Minimum illumination:

0 lx

Optical sensor size:

25.4 / 2.4

Connectivity technology:

Wired

Maximum resolution:

3200 x 1800

Number of users:

32 user(s)

Networking standards:

IEEE 802.1x, IEEE 802.3af

Voice codecs:

AAC, G.711alaw, G.711ulaw, G.722.1, G.726, PCM

LED type:

IR

Tilt angle range:

0 - 90

Bluetooth:

No

Audio formats supported:

MP3

Video compression formats:

H.264, H.264+, H.265, H.265+, M-JPEG

Bit rate:

32 Kbps - 16 Mbps

Ethernet LAN (RJ-45) ports:

1

Angle of rotation:

360 °

Built-in speaker(s):

Yes

Noise reduction:

Yes

Length:

191.1 mm

Pan range:

0 - 360

Languages support:

BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE

Progressive scan:

Yes

Wi-Fi:

No

Quality of Service (QoS) support:

Yes

Card reader integrated:

Yes

Placement supported:

Outdoor

Frame rate:

30 fps

Web-based management:

Yes

Mirror:

Yes

Reset button:

Yes

Supported graphics resolutions:

640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800

Maximum aperture number:

1.6

Night vision:

Yes

Fixed focal length:

2.8 mm

Mounting type:

Ceiling/Wall

Video motion detection:

Yes

IP address filtering:

Yes

DC output voltage:

12

DC output current:

0.54 A

Maximum memory card size:

256 GB

Number of languages:

33

Ethernet interface type:

Fast Ethernet

International Protection (IP) code: Device protection rating against dust and water according to the international IP standard.

IP67

Power source type:

DC, PoE

Total megapixels:

6 MP

Image quality adjustment:

Brightness, Contrast, Saturation, Sharpness

Back Light Compensation (BLC):

Yes

Built-in HDD:

No

Night vision distance:

40

HTTPS encryption:

Yes

Wide Dynamic Range (WDR):

Yes

Infra-red wavelength:

850 nm

Day/night mode:

Yes

Number of cameras:

1

Power consumption (max):

6.5 W

Sample rate:

48 kHz

Video streaming:

Yes

Password protection:

Yes

Number of lenses:

1

Privacy masking:

Yes

Power consumption (Power over Ethernet (PoE)):

8 W

Infrared (IR) cut-off filter:

Yes

Number of sensors:

1

Detect distance (wide):

78.6 m

Observe distance (wide):

31.2 m

Recognize distance (wide):

15.7 m

Identify distance (wide):

7.9 m

Intelligent Video Surveillance (IVS) system features:

Scene change

Highlight Compensation (HLC):

Yes

Region of Interest (ROI) encoding:

Yes

Noise reduction technology:

3D noise reduction

Anti-flicker:

Yes

Heartbeat:

Yes

Behavior analysis:

Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection

Camera pan control:

Yes

Camera tilt control:

Yes

Lens viewing angle, horizontal:

105.1

Lens viewing angle, vertical:

53.4

Lens viewing angle, diagonal:

128.6

Features

Product colour:

White

Weight & dimensions

Weight:

0.58 kg

Width:

72.9 mm

Depth:

73.3 mm

Operational conditions

Operating relative humidity (H-H):

0 - 95

Storage temperature (T-T):

-30 - 60

Operating temperature (T-T):

-30 - 60

Storage relative humidity (H-H):

0 - 95

Other features

Certification:

FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); LOA (IEC/EN 60950-1) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ( (EC) No 1907/2006)

Form factor:

Bullet

Packaging data

Package weight:

840 g

Package depth:

120 mm

Package height:

117 mm

Package width:

234 mm

Sustainability

Compliance certificates:

CE, REACH
